Panasonic Surface Signal Relay, 24V dc Coil, 3A Switching Current, SPST Contact Configuration DS1E-M-DC24V

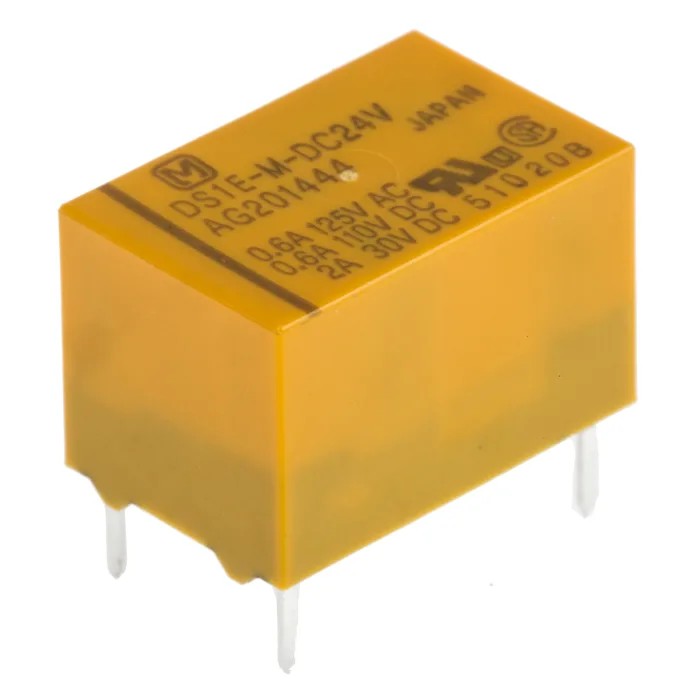

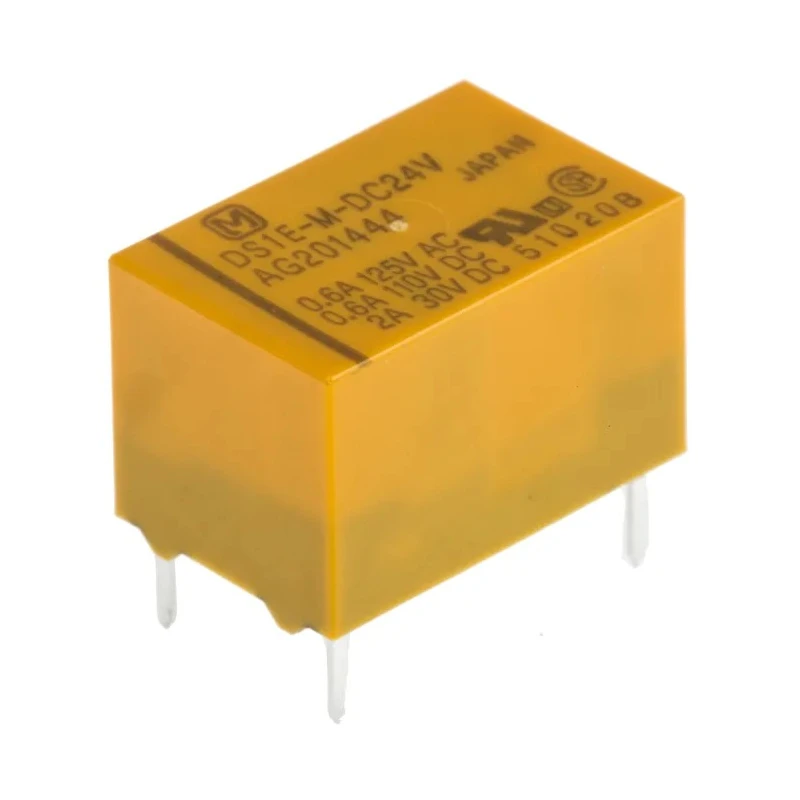

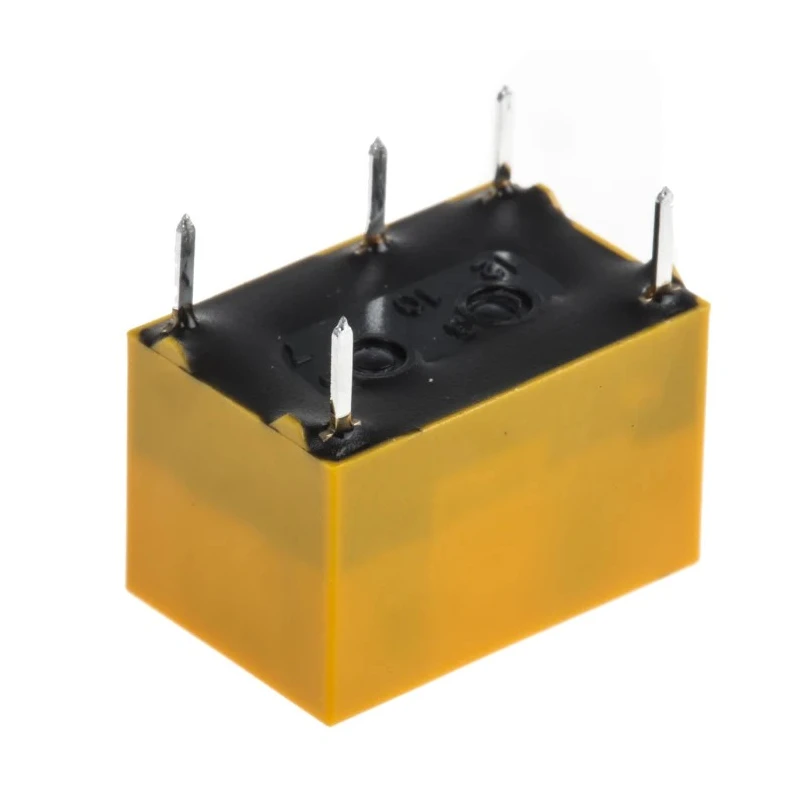

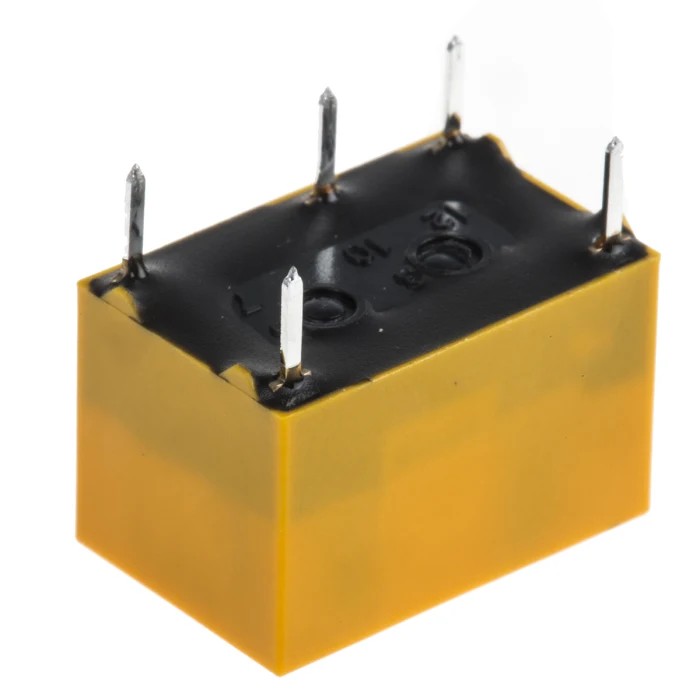

Panasonic DS1E-M-DC24V Surface Signal Relay is a high-quality electrical component designed for efficient signal switching and automation control. Featuring a 24V dc coil and reliable 3A switching current, this SPST relay is ideal for use in industrial, laboratory, HVAC, and manufacturing environments requiring compact and robust relay solutions.

The relay is mounted on a surface type base with PCB terminals, facilitating easy installation on printed circuit boards. Its gold plated contact material ensures superior electrical conductivity and long operational life even under demanding electrical load conditions.

Operating range extends from a minimum temperature of -40°C to a maximum of 70°C, making it suitable for diverse environmental conditions. The relay supports switching voltages of up to 250V AC and 220V DC, compatible with various electrical circuit requirements. Coil resistance of 1920Ω and coil power of 400mW ensures energy-efficient operation.

The device has a compact dimension profile of 20mm length, 9.9mm width, and 9.4mm height, making it a space-saving choice for control panels and electronic assemblies. Manufactured in Japan, the product adheres to stringent RoHS standards, ensuring environmental safety compliance.

Applications include signal conditioning, industrial automation, telecommunications, and control circuits where reliable, fast switching is critical. Its robust build quality and certified standards make it a trusted component in electrical engineering projects and industrial automation systems.

The relay features a surface mount type for easy PCB integration. Supports switching AC voltage up to 250V and DC voltage up to 220V. Operates reliably within a temperature range from -40°C to 70°C. Coil resistance is 1920 ohms with a coil power consumption of 400mW.

Contacts are gold plated to ensure optimal conductivity and durability. Compact dimensions with length 20mm, width 9.9mm, and height 9.4mm. Designed to meet RoHS compliance and made in Japan for quality assurance. Explore more high-quality relays and signal conditioning components in the Electronics & Electricals category at EnvMart to support your industrial and electrical project needs.
