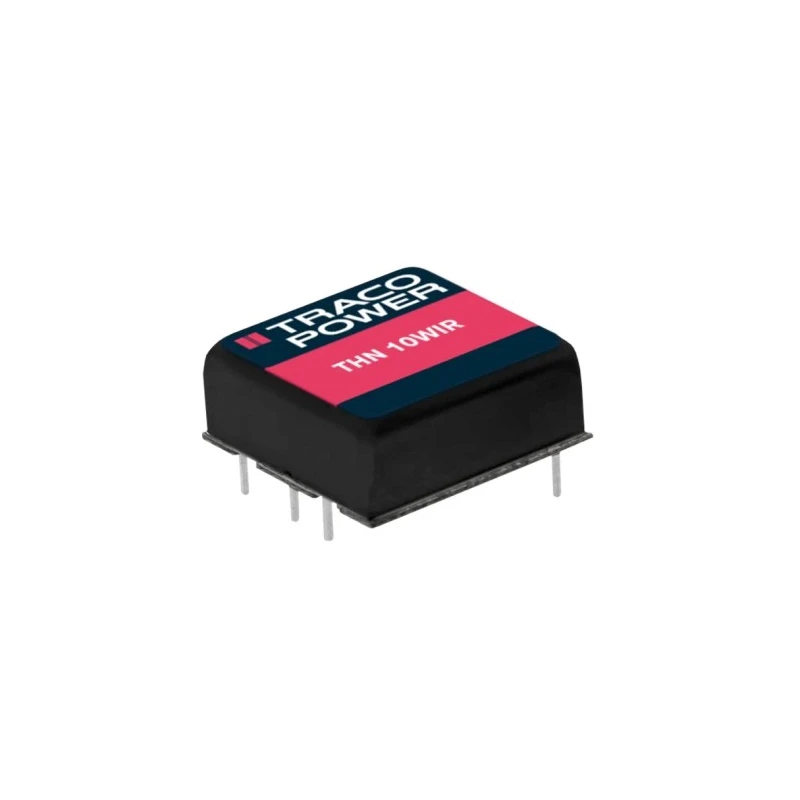

TRACOPOWER DC/DC Converter 3.3V 3A 9-36V dc Input 10W Through Hole Package THN 10-2410WIR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 0.87% |
| Length | 25.4mm |
| Model | THN 10-2410WIR |
| Depth | 9.9mm |
| Gross Weight | 16.5g |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | THN 10WIR |
| Maximum Operating Temperature | 80°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2334000h |
| Number of outputs | 1 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 3A |
| Isolation Voltage | 3kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
Key Features
- Operates with a wide input voltage range from 9V to 36V DC.
- Features a through hole DIP package for reliable mounting.
- High efficiency of up to 87 percent ensures optimized power usage.
- Supports operation from -40°C to +80°C for harsh environments.
- Isolated output with 3kV DC to enhance circuit safety.
- Compact dimensions of 25.4mm x 25.4mm x 9.9mm facilitate integration.
- Low ripple and noise of 100mV peak-to-peak for stable performance.
- Designed for applications requiring electromagnetic immunity and shock resistance.
Product Description
TRACOPOWER THN 10-2410WIR DC/DC Converter is a compact and efficient power supply module designed for industrial and transportation applications. It converts a wide DC input voltage range of 9 to 36 V into a regulated 3.3 V DC output at 3 A, delivering up to 10 W of power with an efficiency of 87%.
This converter’s robust through hole DIP package and its small footprint, measuring 25.4 mm in length and width with a depth of 9.9 mm, make it suitable for integration into space-constrained electronic designs. The device supports a wide operating temperature range from -40 °C to +80 °C, enabling use in harsh environments such as railway and transportation systems where electromagnetic immunity and vibration resistance are critical.
Featuring an isolated output voltage with 3 kV DC isolation voltage, it ensures electrical safety and noise reduction in sensitive electronic circuits. The device produces low ripple and noise (100mV peak-to-peak), which contributes to stable and clean power delivery.
Its mean time between failures (MTBF) of over 2.3 million hours ensures high reliability for long operational life. The TRACOPOWER THN 10-2410WIR is made in Taiwan, Province Of China, maintaining quality standards aligned with industrial requirements.
Operates over a 9 to 36 V DC input voltage range. Power rating of 10 Watts and output current capability of 3 Amps. Through hole DIP mounting package with 6 pins for secure PCB installation. High efficiency of 87 percent for optimized power use.
Wide operational temperature from -40 °C to 80 °C for extreme environments. Isolated output with 3 kV DC voltage for safety. Compact size 25.4 x 25.4 x 9.9 mm facilitates space-saving designs. Low ripple and noise for clean output voltage.
Designed for transportation and industrial environments requiring electromagnetic immunity, shock, and vibration resistance. High MTBF rating for dependable long-term use.
Reliable and efficient, the THN 10-2410WIR DC/DC converter is ideal for electronics in commercial, railway, industrial control, and transportation sectors. Browse EnvMart categories to discover more DC/DC Converters and power supplies suitable for your applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with a wide input voltage range from 9V to 36V DC.
This model provides a regulated output voltage of 3.3V DC with a maximum output current of 3A.
The maximum output power of this converter is 10 Watts.
It has compact dimensions of 25.4mm x 25.4mm x 9.9mm.
The efficiency of this converter is up to 87%.
It features an isolated output with a voltage of 3kV DC for enhanced circuit safety.
It supports an operating temperature range from -40°C to +80°C, suitable for harsh environments.
The unit produces low ripple and noise of 100mV peak-to-peak for stable performance.
This model features a through hole DIP package for reliable mounting on PCBs.
The MTBF for this converter is over 2.3 million hours, indicating high reliability.
This DC/DC converter is made in Taiwan, Province Of China.
It is designed for industrial and transportation applications requiring electromagnetic immunity and shock resistance.
