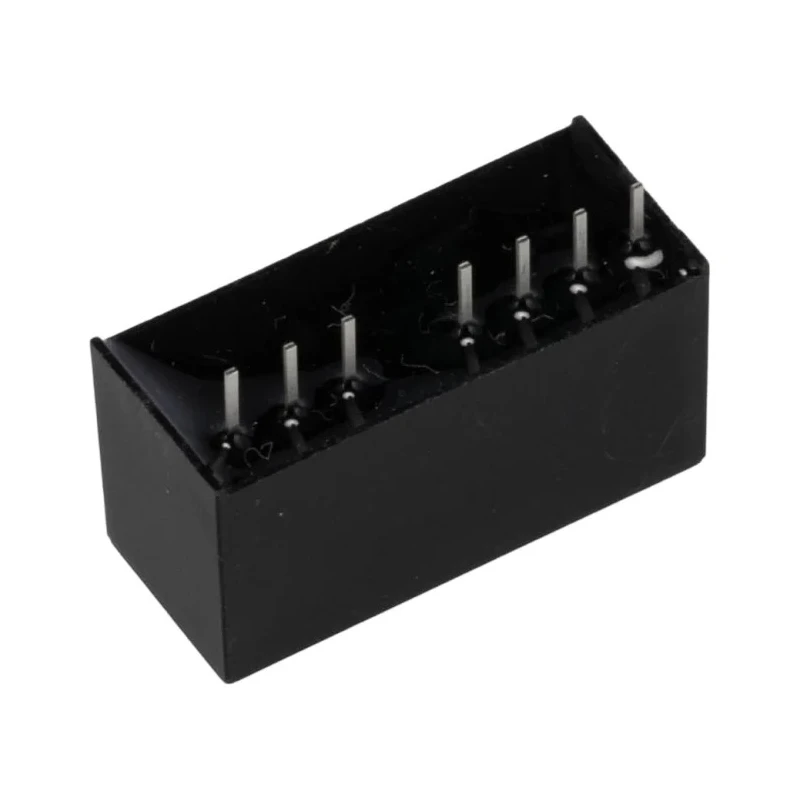

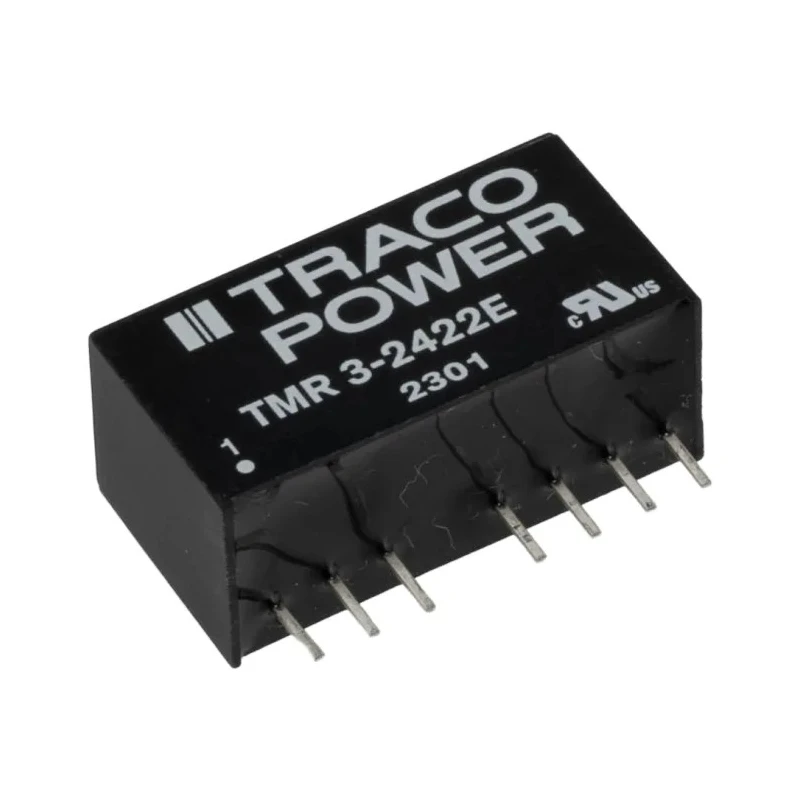

TRACOPOWER DC/DC Converter, 12V dc 125 mA, 36V dc Input, 18V Input, 3 W, Through Hole Mount, RoHS Compliant TMR 3-2422E
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 83% |
| Length | 21.8mm |
| Model | TMR 3-2422E |
| Depth | 11.2mm |
| Gross Weight | 4.8g |
| Width | 9.3mm |
| Mount Type | Through Hole |
| Series | TMR 3E |
| Maximum Operating Temperature | 85°C |
| Package Type | Tube |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 2 |
| Ripple and Noise | 75mV Pk-Pk |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 18V |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 733-1629Brand: TRACOPOWERManufacturers Part No.: TMR 3-2422E |
| Number of Pins | 7 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 125mA |
| Isolation Voltage | 1.5kV dc |
| Output Current 2 | 300mA |
| Output Voltage 2 | 15V |
| Wide 2 | 1 input voltage range |
Key Features
- Compact SIP-8 package suitable for space-constrained applications.
- Two outputs delivering 12V at 125 mA and 15V at 300 mA respectively.
- High efficiency of 83% ensures energy-effective operation.
- Maintains operation in harsh environments from -40°C to 85°C.
- Features continuous short circuit protection for device safety.
- Isolation voltage rating of 1.5kV dc for reliable electrical isolation.
- MTBF reliability rating of 1,000,000 hours at 25°C for long service life.
- Meets RoHS compliance standards for environmental safety.
Product Description
TRACOPOWER TMR 3-2422E is a high-performance DC/DC Converter series providing 3 W single or dual isolated regulated outputs with a compact SIP-8 through-hole package footprint. It features a wide 2:1 input voltage range, supporting minimum 18V and maximum 36V dc input to suit various industrial and communication equipment applications.
This dual output converter produces output voltages of 12V dc at 125 mA and 15V dc at 300 mA with a maximum output power of 3 watts. The design achieves an 83% efficiency rating, optimizing power consumption for sensitive instrumentation, industrial electronics, and embedded systems.
The component is engineered for reliability with a Mean Time Between Failures (MTBF) of 1,000,000 hours at standard conditions and features 1.5 kV dc isolation voltage to safeguard circuit integrity. It includes continuous short-circuit protection, remote On/Off control capability, and complies with RoHS standards.
The TMR 3-2422E operates effectively in a wide temperature range from -40 °C minimum to 85 °C maximum, making it suitable for harsh industrial environments and demanding HVAC, manufacturing, and communications equipment.
Compact SIP-8 package with minimal 2 cm² footprint. Wide 2:1 input voltage range supporting flexibility. Regulated dual output isolation for reliable circuit separation. High efficiency at 83% for reduced energy waste. Continuous short circuit protection enhances safety.
RoHS compliant, underscoring environmental responsibility. High MTBF ensuring extended operational life. Wide temperature operation for industrial and commercial use.
This converter is ideal for users requiring compact, efficient, and robust power conversion solutions in electronics manufacturing, industrial automation, laboratory instrumentation, and communication sectors.
Explore related DC/DC Converters and voltage converter products in the Electronics & Electricals category at EnvMart to find complementary components and accessories for efficient power management.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 3 watts.
It requires a minimum input voltage of 18V and can handle a maximum input voltage of 36V dc.
The converter provides two outputs: 12V dc at 125 mA and 15V dc at 300 mA.
This model has an efficiency rating of 83%.
It operates effectively in a temperature range from -40°C to 85°C.
The isolation voltage rating is 1.5 kV dc, providing reliable electrical isolation.
It comes in a compact SIP-8 through-hole package type.
The MTBF rating is 1,000,000 hours at 25°C.
The gross weight of this model is 4.8 grams.
It uses a through-hole mounting type.
This model meets RoHS compliance standards for environmental safety.
The ripple and noise is specified at 75 mV peak-to-peak.
