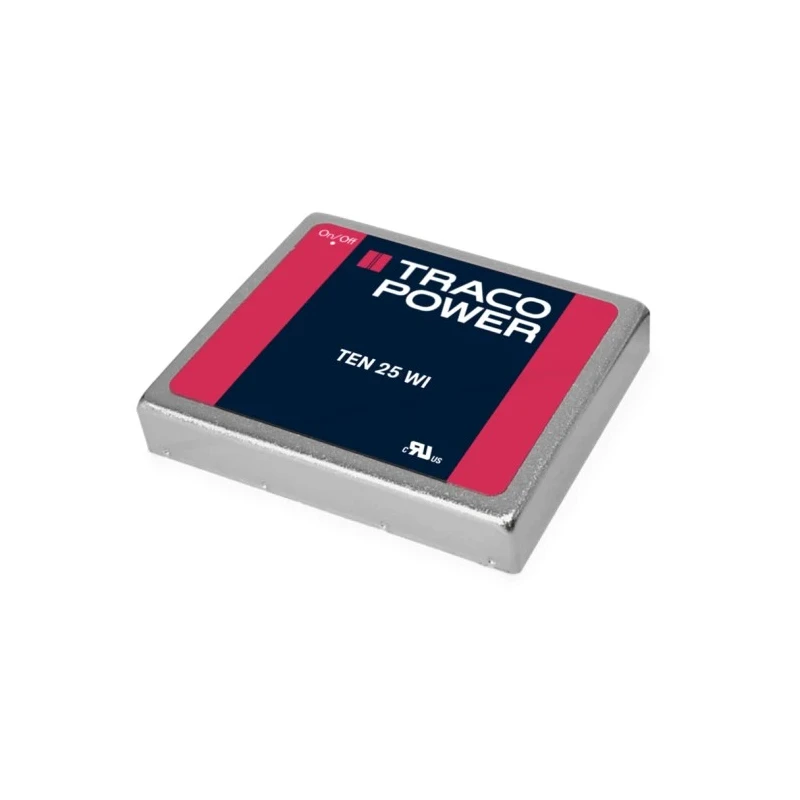

TRACOPOWER High Performance Dual Output Regulated Isolated DC/DC Converter 15V DC 1A 40V DC Input TEN 25-2423WI

TRACOPOWER TEN 25-2423WI is a high-performance dual output regulated isolated DC/DC converter designed for industrial and communication system applications. It provides a stable +15V and -15V DC output current of 1A from a wide 10V to 40V DC input voltage range. This converter ensures excellent energy efficiency of 89% and can deliver up to 30W of power, making it ideal for battery operated equipment, distributed power systems, and demanding industrial electronics.

The product features a through-hole mount with 7 pins and a surface mount package type, supporting easy integration into various PCB designs. It offers a robust I/O isolation voltage of 1500 V DC, continuous short circuit protection, over voltage protection, and over temperature protection to safeguard both the converter module and connected devices.

Operating seamlessly within an extended temperature range from -40°C to +85°C, the TEN 25-2423WI maintains reliability in harsh and variable environments. The converter’s design complies fully with RoHS standards, ensuring that it meets modern environmental regulations. With a mean time between failures (MTBF) of 550,000 hours, this module guarantees durability and long service life.

The compact size with dimensions 50mm (length) x 9.3mm (depth) makes it highly suitable for space-constrained industrial applications. Typical uses include industrial electronics, communication systems, battery operated devices, and distributed power systems where stable dual-output voltage and high efficiency are critical.

This DC/DC Converter series offers adjustable output voltages and includes remote On/Off functionality to facilitate control in complex power management setups. The input filter meets EN 55022, class A, and FCC level A standards without require external components, ensuring electromagnetic compatibility and minimal interference.

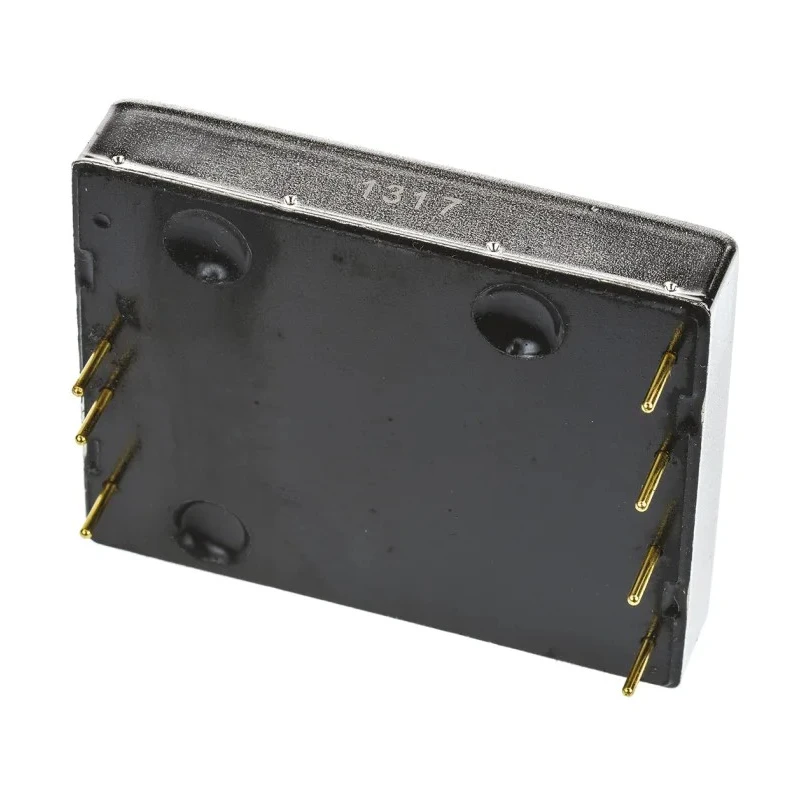

Delivers +15V and -15V dual output current of 1A. Wide 10V to 40V DC input voltage range with a 4:1 input ratio. Through-hole mounting with 7 pins for secure PCB attachment. Surface mount package supporting compact integration.

Maximum output power of 30 Watts with 89% efficiency. Robust protections including short circuit, over voltage, and temperature. 1500 V DC isolation voltage for enhanced safety. Operating temperature range of -40°C to +85°C for industrial environments.

MTBF of 550,000 hours for dependable long-term operation. Fully RoHS compliant and manufactured in Taiwan, Province Of China. Explore more advanced power conversion products and solutions with EnvMart to meet your industrial electronics and power supply needs efficiently.
