Tektronix Waveform Generator 50 MHz Max, 2-Channel, 1 Hz Min AFG31052

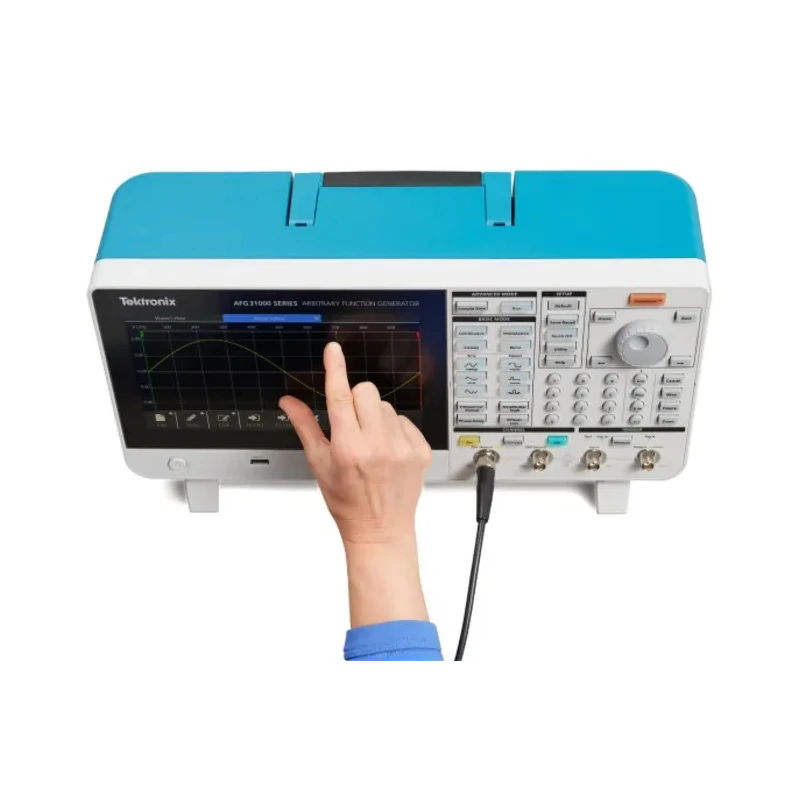

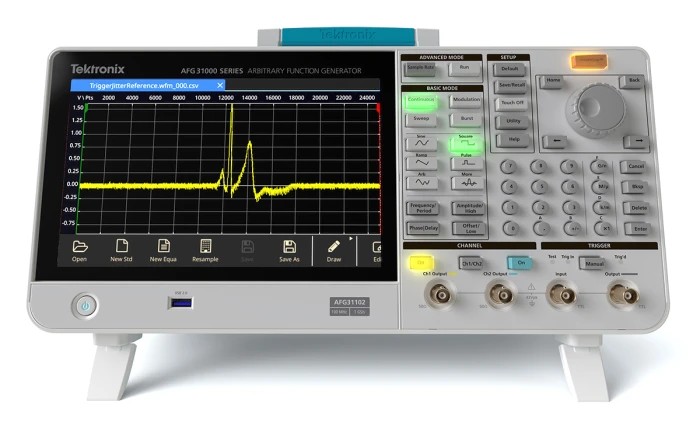

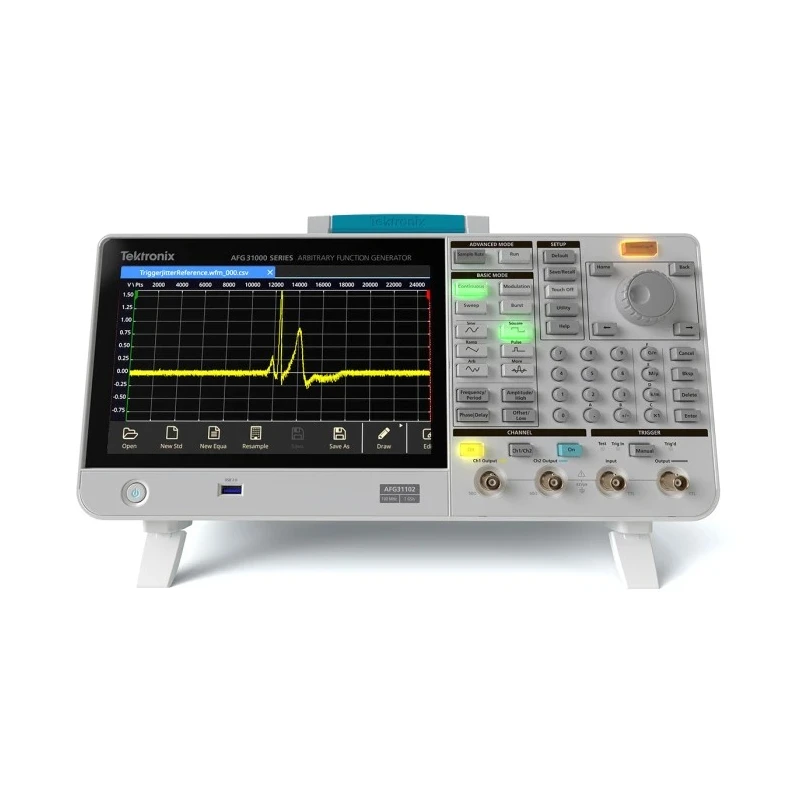

Tektronix AFG31052 Waveform Generator is a versatile 2-channel arbitrary function generator designed for precise signal generation up to 50 MHz with a minimum frequency of 1 Hz. It features a modern 9-inch capacitive touch display that mimics the user experience of a smart device, allowing easy navigation through settings with pinch, zoom, and scroll gestures.

This generator delivers high vertical resolution at 14 bits and supports a wide variety of built-in waveforms, including sine, square, ramp, and noise, providing engineers with low-distortion outputs precisely controlled for advanced testing.

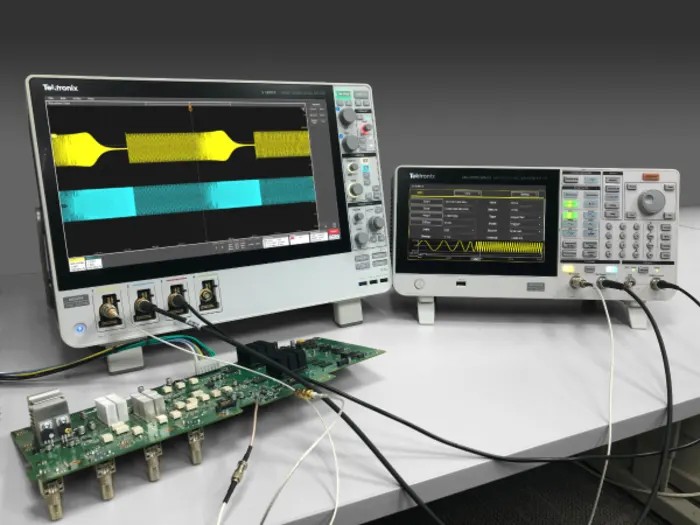

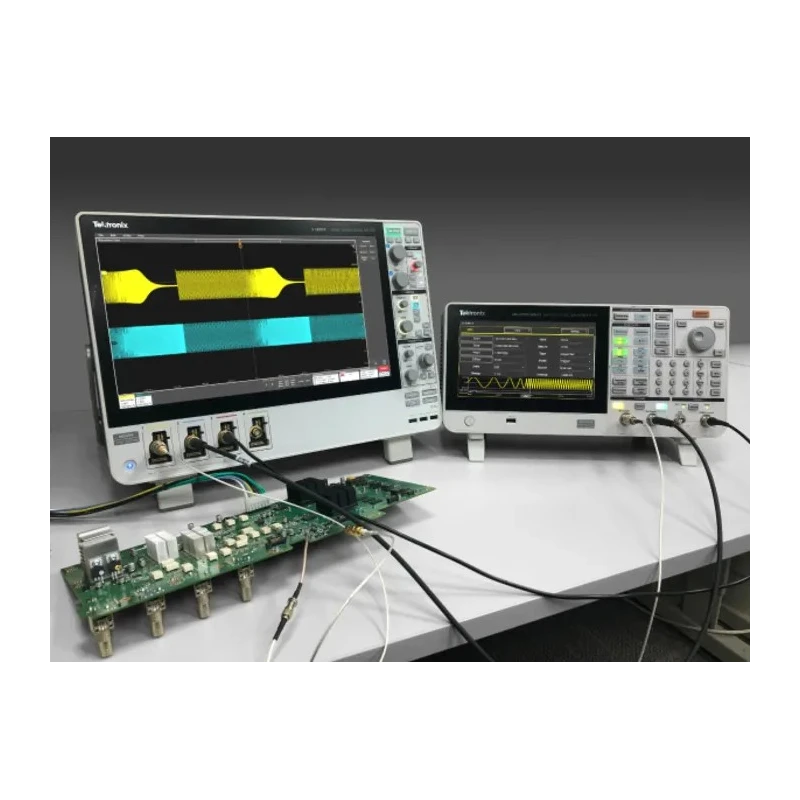

A key innovation is the patented InstaView™ technology which enables direct real-time waveform observation at the device under test, eliminating uncertainties from impedance mismatches without requiring an oscilloscope or probe. This technology enhances the accuracy of signal verification during laboratory, industrial, and manufacturing processes.

Additional features include a sequencing option capable of programming up to 256 waveform steps, built-in ArbBuilder to create and edit arbitrary waveforms internally, and dedicated Double Pulse Test applications for testing device pulses with variable widths.

With its operating temperature range from 0°C to 50°C and compact dimensions (412.8 x 143.3 x 191.8 mm), this generator is suitable for laboratory, industrial, HVAC, and educational use. The unit weighs 4.7 kg, making it portable for various test setups and field applications.

9-inch capacitive touch screen display for intuitive control. Supports waveform output amplitude from 1 mVpp to 10 Vpp into 50 ohms. Patented InstaView™ technology for real-time waveform monitoring. Includes built-in Double Pulse Test for voltage pulse generation.

Sequencing mode supports up to 256 waveform steps. High fidelity 14-bit vertical resolution with low distortion output. Multiple modulation modes: AM, FM, PM, FSK, and PWM. Compact and lightweight design with industrial-grade reliability.

This product is RoHS compliant and comes with a 3-year warranty, assuring quality and reliability for demanding test and measurement applications. It is ideal for professionals in electronics design, industrial automation, laboratory instrumentation, and quality control testing. Discover more products like this in the Electrical Test & Measurement category at EnvMart.
