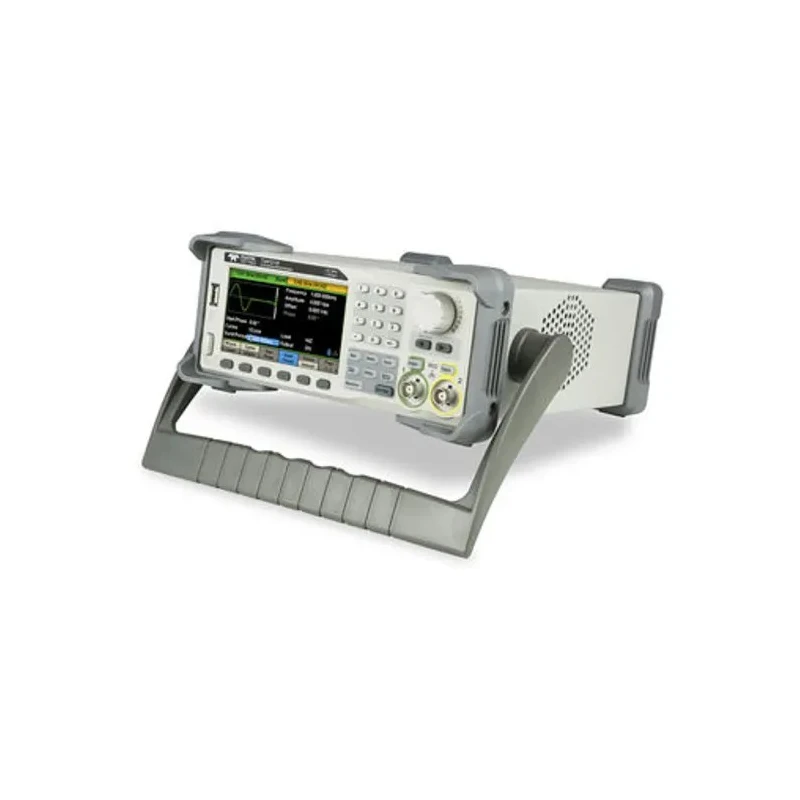

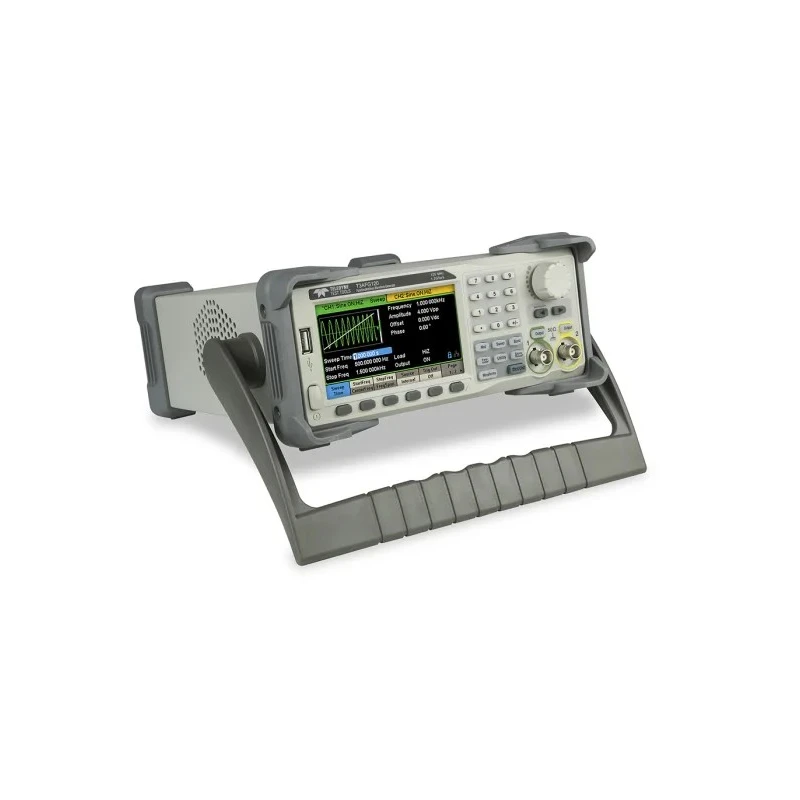

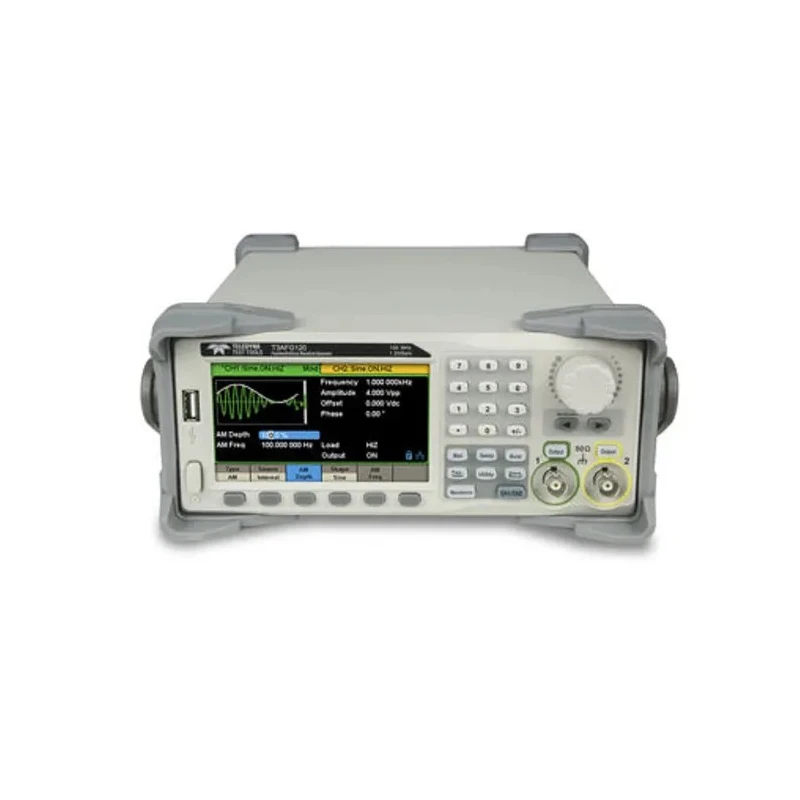

Teledyne LeCroy Waveform Generator 120 MHz Max, 2-Channel, 1 Hz Min T3AFG120

Teledyne LeCroy T3AFG120 waveform generator is a professional-grade signal generation instrument designed for precise electronic testing and debugging applications. It offers a maximum output frequency of 120 MHz with 2 independent channels capable of producing various waveform types including sine, square, triangle, and arbitrary waveforms. The generator's advanced DDS technology ensures high resolution output with a frequency resolution as fine as 1 microhertz.

The unit features a 4.3-inch LCD display for clear and intuitive waveform visualization and control. USB and LAN interfaces provide convenient options for remote control and data management, making it suitable for integration into automated testing setups. It supports a minimum frequency down to 1 Hz and includes triangle ramp frequencies up to 1 MHz.

Ergonomically designed, the dual-function handle serves also as a stand, allowing stable positioning during use. Its operating temperature range of 0°C to 40°C makes it reliable for laboratory, industrial, and educational environments.

This waveform generator complies with relevant international standards and approvals, ensuring safety and electromagnetic compatibility. The 3.4 kg device is compact with dimensions of approximately 295.7 mm in height, 260.3 mm in length, and 107.2 mm in width.

Key technical features include a maximum output amplitude of 20 V peak-to-peak, a rise-fall time of 9 ns, and a pulse train repetition rate range starting from 16.3 ns. Data entry is via keyboard, enhancing user input accuracy. Outputs can be triggered and gated for flexible signal control.

Maximum frequency: 120 MHz with 2 independent output channels. Frequency resolution: 1 μHz with waveform types including arbitrary and function generation. Interfaces include USB (mass storage), USB Host, and LAN for remote operation.

Ergonomic handle doubles as a stable stand with adjustable positioning. Applications span educational demonstrations, engineering design, debugging, and electronic testing. The Teledyne LeCroy T3AFG120 is renowned for its durability, high quality, and precise performance.
