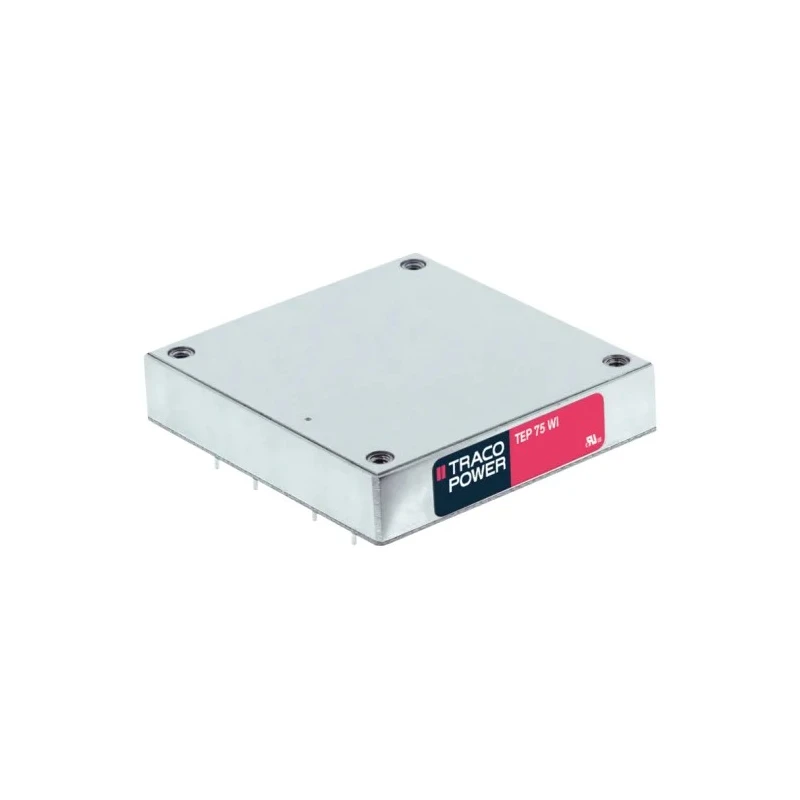

TRACOPOWER DC/DC Converter 5V 15 A 18V-75V Input 75 W Metal Case Through Hole Mount TEP 75-4811WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 90% |
| Length | 61mm |
| Model | TEP 75-4811WI |
| Depth | 12.7mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 75°C |
| Package Type | Metal case |
| Minimum Operating Temperature | -40°C |
| MTBF | 336000h |
| Number of outputs | 5 |
| Maximum Output Power | 75W |
| Maximum Input Voltage | 75V |
| Minimum Input Voltage | 18V |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 706-6381Brand: TRACOPOWERManufacturers Part No.: TEP 75-4811WI |
| Number of Pins | 9 |
| Output Voltage 1 | 5V |
| Output Current 1 | 15A |
| Isolation Voltage | 2.25kV |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
| Ultra wide 4 | 1 input voltage range |
Key Features
- High efficiency of up to 90% ensures optimal power conversion.
- Rugged metal case provides durability and heat dissipation.
- Through hole mounting with 9 pins supports secure PCB installation.
- Wide operating temperature range from -40°C to 75°C for harsh environments.
- Features output voltage adjustment from -20% to +10% for fine tuning.
- Isolation voltage rated at 2.25 kV ensures electrical safety.
- Includes remote On/Off control and protection against over temperature and short circuit.
- Designed for industrial, electronics, and power supply applications requiring reliable DC voltage conversion.
Product Description
TRACOPOWER TEP 75-4811WI is a high-performance DC/DC Converter designed to provide a stable 5V, 15 A output from an ultra-wide input voltage range of 18V to 75V. Housed in a rugged metal case with through-hole mounting and 9-pin configuration, this converter supports demanding industrial and electronic applications requiring robust and efficient power conversion.
The unit features high efficiency of 90%, enabling operation up to 75°C ambient temperature with natural convection cooling without power derating. It offers output voltage adjustment in the range of -20% to +10%, allowing precise voltage tuning to meet specific application needs.
Built-in protection functions include under voltage lockout, input reverse voltage protection, over temperature shutdown, over voltage and short circuit protection, ensuring safe and reliable operation in harsh conditions. The isolation voltage of 2.25 kV makes it suitable for systems requiring electrical isolation between input and output.
The converter has a mean time between failures (MTBF) of 336,000 hours per MIL-HDBK-217F standard (at 25°C), reflecting excellent reliability. Typical applications include industrial automation, telecommunications, instrumentation, and embedded systems requiring compact, high-efficiency voltage regulation.
Package consists of a metal case DC/DC converter module with mounting inserts for heatsink attachment (heatsink sold separately). Operating temperature range is from -40°C minimum to +75°C maximum, suitable for a variety of environments.
High efficiency of up to 90% ensures optimal power conversion. Rugged metal case provides durability and heat dissipation. Through hole mounting with 9 pins supports secure PCB installation. Wide operating temperature range from -40°C to 75°C for harsh environments.
Features output voltage adjustment from -20% to +10% for fine tuning. Isolation voltage rated at 2.25 kV ensures electrical safety. Includes remote On/Off control and protection against over temperature and short circuit.
Designed for industrial, electronics, and power supply applications requiring reliable DC voltage conversion. Explore more TRACOPOWER DC/DC Converters and power supply products on EnvMart for your industrial and electronic project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 18V to 75V.
This unit has a maximum output power of 75W.
The efficiency of this DC/DC converter is up to 90%.
It can provide an output current of 15A.
The dimensions are 61mm in length and 12.7mm in depth.
This model supports through-hole mounting with a 9-pin configuration.
The operating temperature range is from -40°C to 75°C.
Yes, it includes protection against over temperature, short circuit, and under voltage lockout.
The isolation voltage is rated at 2.25 kV.
It is designed for industrial, electronics, and power supply applications requiring reliable DC voltage conversion.
The MTBF is 336,000 hours according to the MIL-HDBK-217F standard at 25°C.
Yes, the output voltage can be adjusted from -20% to +10% for fine tuning.
