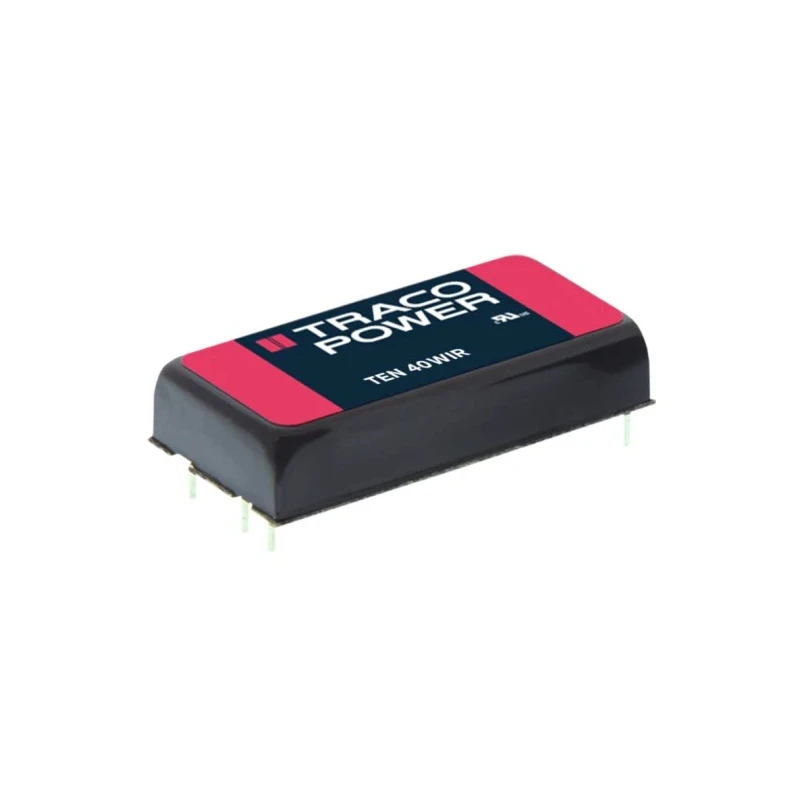

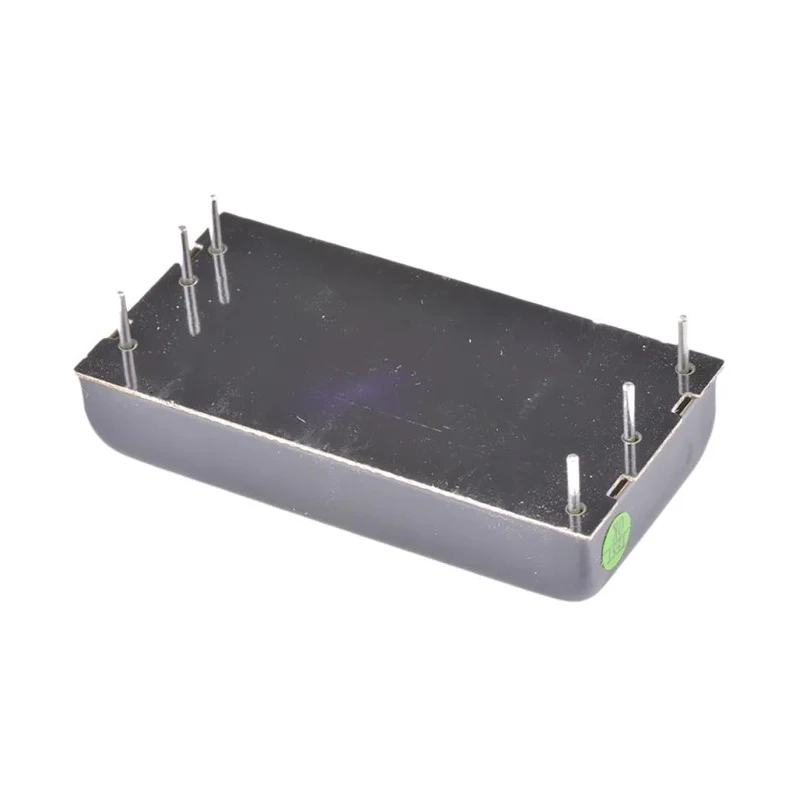

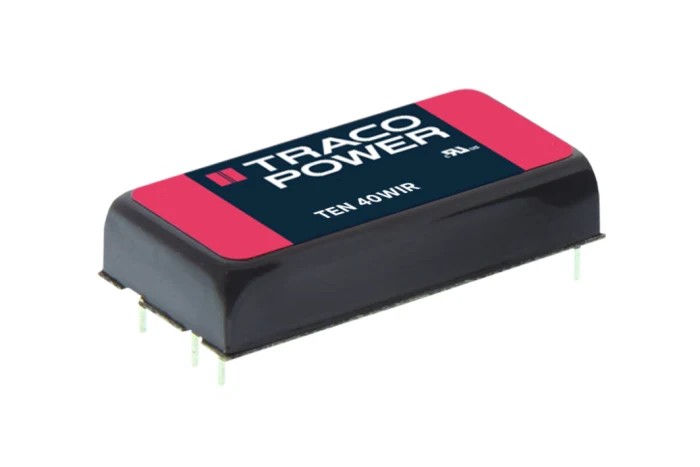

TRACOPOWER 40W Single Output Regulated Isolated DC/DC Converter 15V DC 2.666A 160V Input TEN 40-7213WIR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 40WIR DC/DC Converter, 15V dc/ 2 |
| Brand | TRACOPOWER |
| Efficiency | 90% |
| Length | 50.8mm |
| Model | TEN 40-7213WIR |
| Depth | 10.2mm |
| Mount Type | PCB |
| Series | TEN 40WIR |
| Maximum Operating Temperature | 85°C |
| Package Type | Metal case |
| Minimum Operating Temperature | -40°C |
| MTBF | 900000h |
| Number of outputs | 1 |
| Maximum Output Power | 40W |
| Maximum Input Voltage | 160V dc |
| Minimum Input Voltage | 43V |
| Number of Pins | 6 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 2.666A |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 1:6 |
| Ultra wide 4 | 1 input voltage range |
| Input Ratio 1 | 6 |
Key Features
- Supports a wide input voltage range from 43V to 160V DC.
- Provides high efficiency of up to 90% for energy-saving operations.
- Features a compact metal case with dimensions of 50.8mm length and 10.2mm depth.
- Operates reliably over temperature range of -40°C to 85°C.
- Includes isolation voltage of 1.6kV DC for enhanced safety and noise reduction.
- Equipped with protections including remote On/Off control, over voltage, under voltage lockout, and short circuit protection.
- Designed for industrial, telecom, wireless networks, and measurement equipment applications.
- Has 6 pins for secure PCB mounting and integration.
Product Description
TRACOPOWER TEN 40-7213WIR is a high-performance DC/DC Converter delivering 40 watts of power with a regulated 15V DC output and 2.666A current. Its design incorporates a robust metal case with a compact footprint measuring 50.8mm in length and 10.2mm in depth, optimized for printed circuit board (PCB) mounting. The converter supports an ultra-wide input voltage range from 43V to 160V DC, making it versatile for various power applications.
This series features key protections such as remote On/Off control, over voltage protection, under voltage lockout, and short circuit protection, providing reliable and safe operation in diverse environments. It has an efficiency rate of 90% which aids in reducing energy losses and heat generation, beneficial for battery-operated and energy-sensitive systems.
The TEN 40-7213WIR converter operates effectively in extreme temperature conditions ranging from -40°C to 85°C and offers isolation voltage of 1.6kV DC to safeguard sensitive electronics from electrical interference and surges. Its MTBF (Mean Time Between Failures) value of 900,000 hours highlights its durability and suitability for long-term use in industrial and commercial electronics.
Typical use cases include wireless networks, telecommunications, datacom equipment, industrial control systems, and precision measurement devices. The device is lead-free and RoHS compliant, supporting environmentally responsible manufacturing requirements.
Wide 4:1 input voltage range for flexibility in various applications. Metal case for enhanced durability and thermal management. Includes multiple protection features for safety and reliability. Compact PCB mountable design for easy integration.
High MTBF for dependable long-term operation.
This product originates from Taiwan, Province Of China, and is supported by a 3-year warranty from TRACOPOWER. It is ideal for use in electronics and electrical engineering fields requiring efficient and dependable DC/DC voltage conversion solutions. Explore EnvMart's selection for more power supply and converter options to fit your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 40 watts.
It supports an input voltage range from 43V to 160V DC.
This unit has an efficiency rating of up to 90%.
The dimensions of this model are 50.8mm in length and 10.2mm in depth.
The isolation voltage of this converter is 1.6kV DC.
It operates reliably over a temperature range of -40°C to 85°C.
This unit has one output.
It includes protections such as remote On/Off control, over voltage, under voltage lockout, and short circuit protection.
The Mean Time Between Failures (MTBF) for this model is 900,000 hours.
This model is designed for PCB mounting with 6 pins for secure integration.
It is designed for applications in industrial, telecom, wireless networks, and measurement equipment.
This product originates from Taiwan, Province of China.
