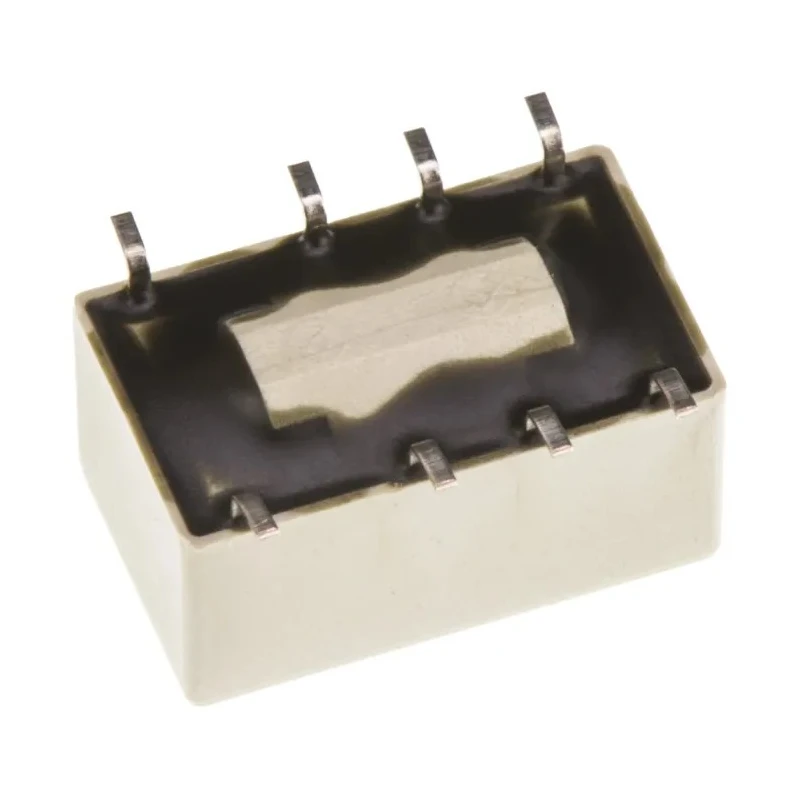

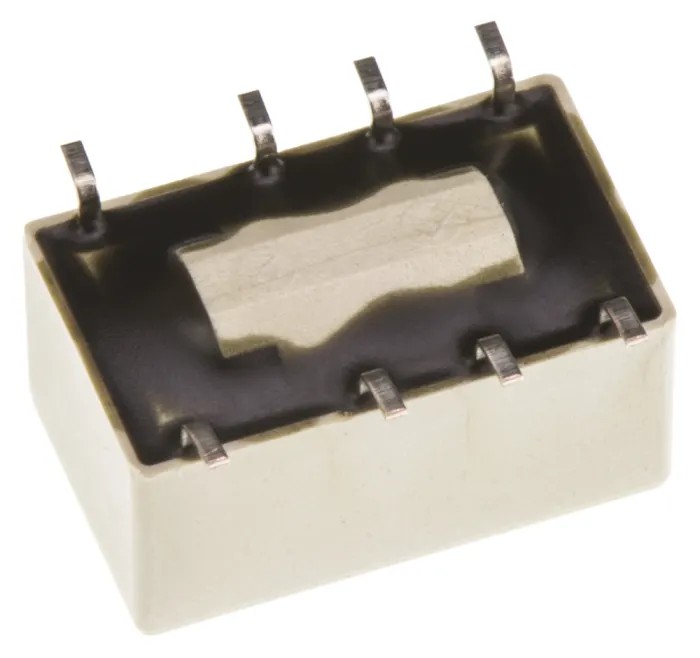

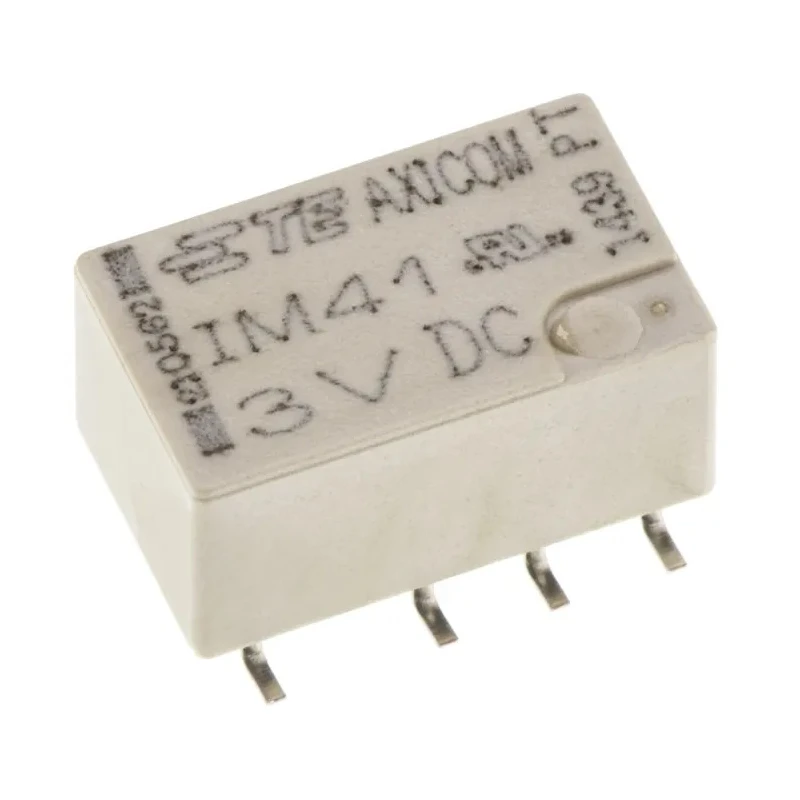

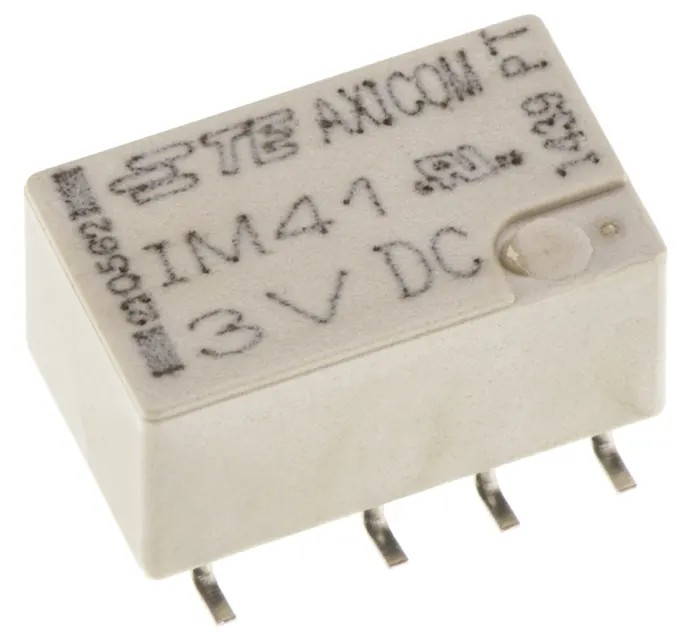

TE Connectivity Surface Signal Relay, 3V DC Coil, 2A Switching Current, DPDT Contact Configuration, Surface Mount 5-1462037-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 5.65mm |
| Length | 10mm |
| Width | 6mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | Axicom |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Coil Resistance | 90Ω |
| Coil Voltage | 3V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 100mW |
| Switching Power | 60W |
Key Features

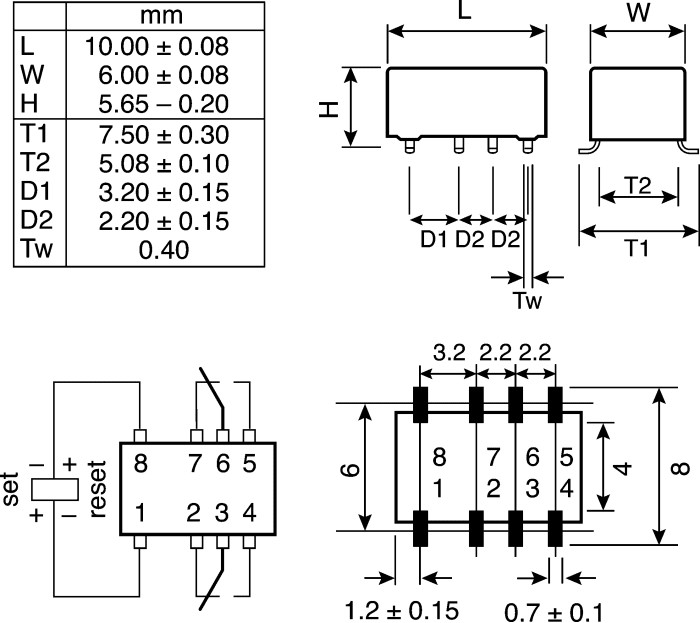

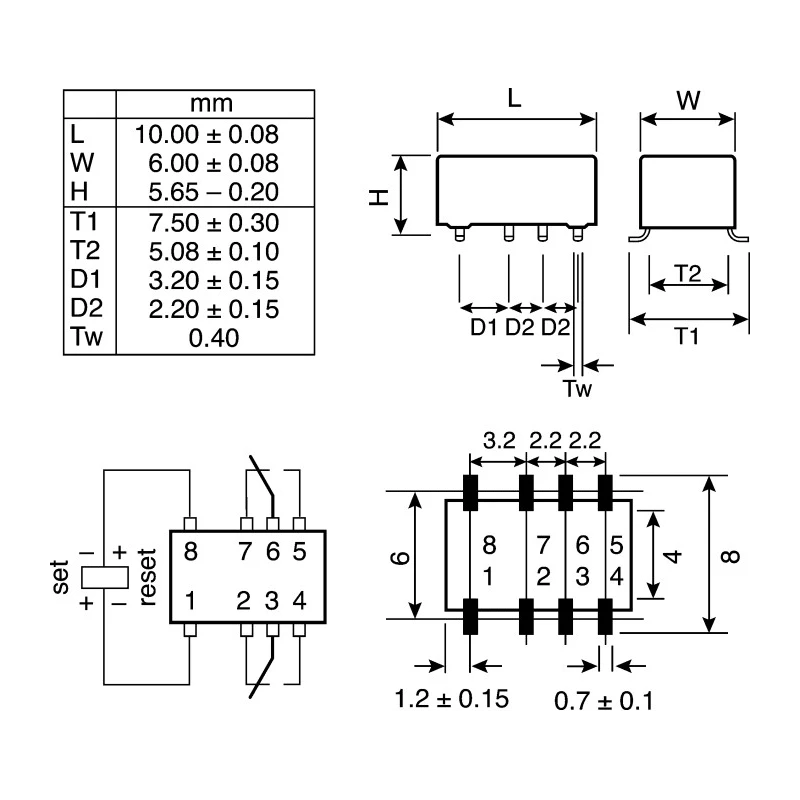

- Slimline and low profile design measuring 10mm length by 6mm width by 5.65mm height.
- Surface mount type relay with gull wing SMT legs ensuring easy PCB integration.
- Gold plated bifurcated contacts provide excellent conductivity and reliability.
- Hermetically sealed construction with IP67 rating for protection against environmental factors.
- High mechanical shock resistance up to 300G functional and 500G survival to withstand intense conditions.
- Operational temperature range from -40°C to 85°C suitable for diverse industrial environments.
- Low coil power consumption of 100mW with coil resistance of 90Ω.
- Capable of switching AC voltages up to 250V and DC voltages up to 220V.
Product Description
TE Connectivity 5-1462037-4 Surface Signal Relay is a compact and robust DPDT relay designed for versatile signal switching applications. It operates with a 3V DC coil voltage and supports switching currents up to 2A, making it suitable for telecommunications, industrial automation, and electronic signal conditioning use cases.
This relay features a slimline low-profile form factor, measuring just 10mm long, 6mm wide, and 5.65mm high, combined with gull wing surface mount terminals that facilitate easy assembly onto printed circuit boards.
The gold plated bifurcated contacts ensure high conductivity and long service life, while the hermetically sealed design with an IP67 rating protects the relay components from dust, moisture, and harsh environmental influences. It offers exceptional mechanical shock resistance, capable of enduring 300G functional shocks and 500G survival shocks, which enhances reliability in rugged industrial and telecom environments.
With a coil power consumption of 100mW and coil resistance of 90Ω, this relay provides energy-efficient operation. It can handle AC switching voltages up to 250V and DC switching voltages up to 220V, and supports switching power up to 60W. The device complies with Telcordia TR-NWT-001089 surge standards and the RoHS directive, ensuring safety and environmental responsibility.
Slimline, low profile 10x6x5.65 mm relay suitable for signal applications. Gold plated bifurcated contacts for optimal electrical performance. Hermetically sealed with IP67 ingress protection rating. High mechanical shock resistance for demanding industrial conditions.
Wide operating temperature range from -40°C to 85°C. 100 mW coil power with 90Ω coil resistance for efficient operation. Capable of switching 2A current at 250V AC and 220V DC voltages. Complies with Telcordia TR-NWT-001089 surge capability standards.
Manufactured to RoHS compliance standards for environmental safety.
This relay is ideal for industrial automation, telecommunications, manufacturing, and electronics applications that require reliable signal switching with compact form factor and robust build quality.
Explore more high-quality relays and signal conditioning devices in the Electronics & Electricals category at EnvMart for your project and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a switching current capacity of 2A.
It measures 10mm in length, 6mm in width, and 5.65mm in height.
The coil voltage required for this relay is 3V DC.
It can switch AC voltages up to 250V and DC voltages up to 220V.
This relay features a DPDT (Double Pole Double Throw) contact configuration.
The coil resistance is 90Ω.
It operates within a temperature range of -40°C to 85°C.
This relay supports surface mounting with gull wing terminals.
The coil power consumption is 100mW.
It has an IP67 rating, providing protection against dust and moisture.
This relay complies with RoHS standards and Telcordia TR-NWT-001089 surge standards.
It is suitable for telecommunications, industrial automation, and electronic signal conditioning applications.
