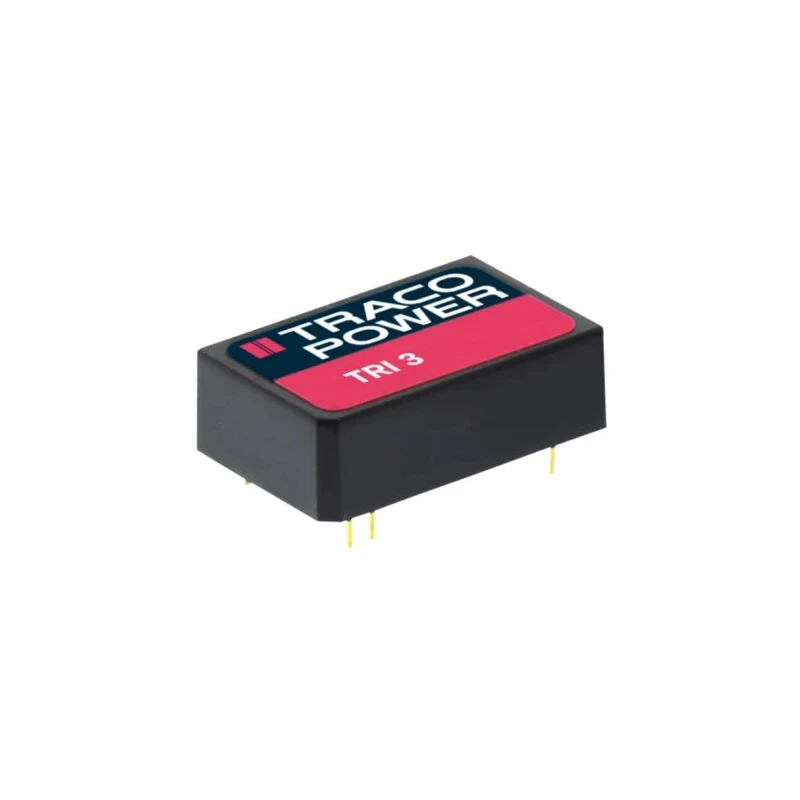

TRACOPOWER DC/DC Converter 12V DC Output 290mA 36V DC Input 18V Input 3.5W Through Hole Package TRI 3-2412

TRACOPOWER TRI 3-2412 DC/DC Converter is a precision voltage converter designed for electronic applications requiring stable 12V DC output from input voltages ranging between 18V and 36V DC. With a maximum output power of 3.5 W and output current of 290mA, it suits a variety of low-power industrial and commercial electronics projects.

This device features a through-hole DIP package with 7 pins allowing easy PCB integration. Its reinforced input/output isolation rated at 5000 VAC and high isolation peak voltage of 9000 VDC for 1 second ensures reliable operation in electrically noisy environments. The high common mode transient immunity of 15 kV/µs provides additional robustness against voltage spikes and disturbances.

Operating over a wide temperature range from -40°C to +90°C without power derating, the TRI 3-2412 provides reliability under harsh environmental conditions. The converter achieves an efficiency of about 85%, which minimizes energy losses and heat generation. It also includes comprehensive protections including overload, overvoltage, and short circuit protection to enhance system safety.

The TRI 3-2412 has a long MTBF of over 5.8 million hours, signaling exceptional reliability for continuous industrial use. It is particularly suited for industrial control systems, instrumentation, communication equipment, laboratory devices, power systems, and embedded applications needing stable DC voltages with galvanic isolation.

As a product originating from Taiwan, Province Of China, it comes with a 3-year product warranty which guarantees quality and performance. This DC/DC converter is a trusted component to ensure efficient power regulation and isolation in demanding applications.

Designed for reliable DC voltage conversion with 3.5W maximum output power. Supports a wide input voltage range from 18V to 36V DC. Compact DIP package with 7 pins suitable for through-hole mounting. High isolation voltage of 7kV DC and reinforced 5000 VAC I/O isolation.

Wide operating temperature range from -40°C to 90°C with no derating. Efficiency rating of approximately 85% for low power loss operation. Long mean time between failures (MTBF) of over 5.8 million hours ensures durability.

Includes protection against overload, overvoltage, and short circuit conditions. Equipped with common mode transient immunity of 15 kV/µs. Manufactured in Taiwan, Province Of China with a 3-year warranty. Explore more high-quality DC/DC Converters and power solutions in the Electronics & Electricals category at EnvMart.
