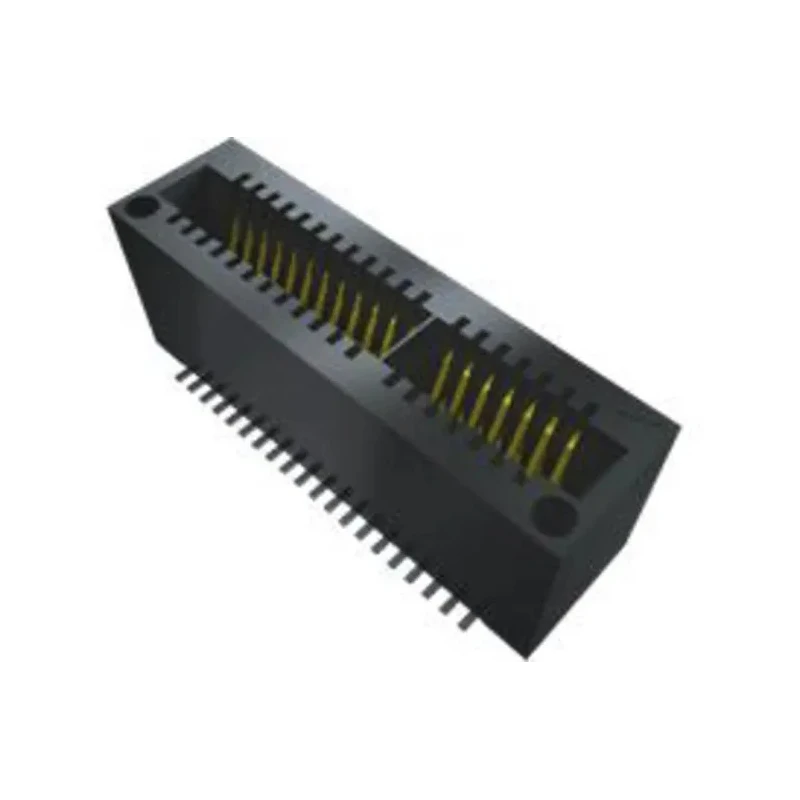

Samtec MEC1 Series Vertical Edge Connector Female, Surface Mount, 60 Contacts, 1 mm Pitch, 2 Row, Solder Termination
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V ac |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 2.2A |
| Model | MEC1 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | MEC1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Contact Plating | Gold |
| Number of Contacts | 60 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | Edge |
| Card Thickness | 1.6mm |
Key Features
- Designed with 2 rows for reliable double-row connection.
- Gold plated beryllium copper alloy contacts for enhanced conductivity.
- Suitable for card thickness of 1.6 mm with 300V AC voltage rating.
- Operates within temperature range from -55°C to 125°C for industrial application stability.
- Terminated by solder, compatible with surface mounting technology.
- Constructed with a liquid crystal polymer housing for durability and heat resistance.
- Supports current up to 2.2A ensuring robust electrical performance.
Product Description
Samtec MEC1-130-02-S-D-A is a high-quality vertical edge connector female designed for surface mounting applications. It features a 1.00 mm pitch with 60 gold-plated contacts arranged in 2 rows, providing a secure and reliable connection suited for electronic components and power connectors.
The connector accommodates cards with a thickness of 1.6 mm and supports an operating voltage of 300V AC, making it suitable for demanding industrial and electronic applications. Its robust beryllium copper alloy contacts ensure excellent electrical conductivity and durability, while the liquid crystal polymer housing offers superior mechanical strength and thermal resistance.
The termination type is solder, compatible with surface mounting technology, enabling easy integration into printed circuit boards. This connector operates reliably across a wide temperature range from -55°C to 125°C, allowing use in harsh industrial environments.
Applications include electronic manufacturing, industrial automation, telecommunications, and power distribution systems requiring dependable connector solutions. Designed with 2 rows for reliable double-row connection. Gold plated beryllium copper alloy contacts for enhanced conductivity.
Suitable for card thickness of 1.6 mm with 300V AC voltage rating. Operates within temperature range from -55°C to 125°C for industrial application stability. Terminated by solder, compatible with surface mounting technology.
Constructed with a liquid crystal polymer housing for durability and heat resistance. Supports current up to 2.2A ensuring robust electrical performance.
Part of the Samtec MEC1 series, this Edge Connector offers a reliable solution for various electronic and industrial use cases. It is ideal for applications requiring low-profile, compact connectors with high-quality materials and long service life.
Explore more in Samtec connectors and related component solutions on EnvMart for advanced industrial and electronic requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a voltage rating of 300V AC, making it suitable for various electronic applications.
It supports a maximum current of 2.2A, ensuring robust electrical performance in applications.
The pitch size of the contacts is 1.00 mm, allowing for compact and efficient connections.
This model operates within a temperature range from -55°C to 125°C, suitable for harsh industrial environments.
It uses solder termination, making it compatible with surface mounting technology for easy integration into PCBs.
It is compatible with card thicknesses of 1.6 mm, which is standard for many electronic applications.
This model features 60 contacts arranged in 2 rows, providing a reliable double-row connection.
The contacts are made from gold-plated beryllium copper alloy, while the housing is constructed from liquid crystal polymer.
The connector has a vertical orientation, making it suitable for specific mounting configurations.
The connector is manufactured in India, ensuring compliance with local manufacturing standards.
This edge connector is suitable for applications in electronic manufacturing, industrial automation, telecommunications, and power distribution systems.
