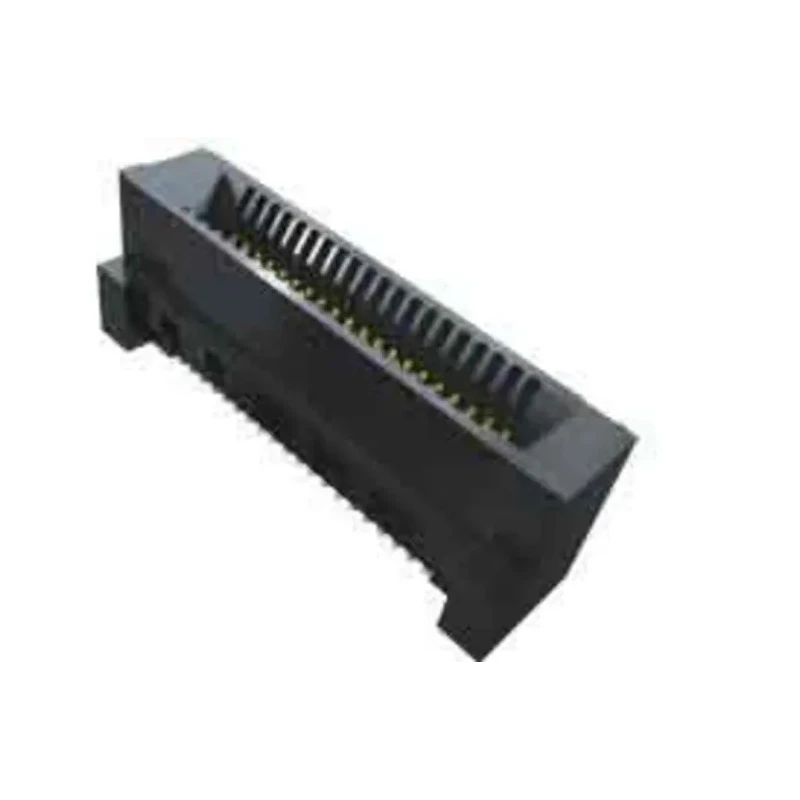

Samtec Vertical Edge Connector Female 40-Contacts 0.8 mm Pitch 2 Row Surface Mount Solder HSEC8-DV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 240V |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 2.8A |
| Model | HSEC8-DV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | HSEC8-DV |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Card Slot | .062" (1.60 mm) |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | Edge |
| Card Thickness | 1.6mm |
Key Features
- Vertical orientation enables efficient PCB connectivity.
- Gold-plated beryllium copper alloy contacts ensure reliable signal integrity.
- Supports 2.8A current for robust electrical performance.
- Liquid crystal polymer housing provides durability up to 125°C maximum operating temperature.
- 0.8 mm pitch and 1.6 mm card thickness allow compact and precise assembly.
- Solder termination type facilitates secure mounting on printed circuit boards.
- Rated for 240V maximum voltage operations.
- Rugged Edge Rate® contact technology enhances signal quality and longevity.
Product Description
Samtec HSEC8-DV vertical Edge Connector female model HSEC8-DV offers a surface mount solution for dense interconnect needs with 40 gold-plated contacts arranged in 2 rows at a fine 0.8 mm pitch. It features beryllium copper alloy contacts providing excellent conductivity and mechanical strength, housed within a liquid crystal polymer body that supports operation from -55°C up to 125°C.
This connector supports up to 2.8A current and 240V voltage capacity, making it suitable for demanding electronics applications including industrial, HVAC, telecommunications, and computing systems. The solder termination ensures a stable, long-lasting connection to printed circuit boards. Its rugged design includes Edge Rate® contacts paired for single-ended and differential signals, optimizing performance for high-speed signal transmissions.
Additional mechanical enhancements such as optional board locks, cable latching features, and weld tabs are available to secure the connector against mechanical stress. The card slot dimension of 1.60 mm (.062") ensures seamless integration into modular assemblies.
Samtec's Extended Life Product™ (E.L.P.™) ensures durability in high usage applications and harsh environments. This connector series ideally suits electronic assembly tasks requiring high reliability and precision.
Use cases span industrial automation, electronics manufacturing, laboratory instrumentation, telecommunications infrastructure, and computing hardware assembly. Vertical orientation connector with 40 contacts. 0.8 mm pitch in two rows for compact design.
Gold-plated beryllium copper alloy contacts improve signal reliability. Liquid crystal polymer housing resistant to high temperatures. Solder termination type for PCB surface mounting. Supports currents up to 2.8A and voltages up to 240V.
Rugged Edge Rate® contact design for enhanced signal quality. Includes optional mechanical mounting features for secure installation. Extended Life Product™ certification for durability. Ideal for industrial, commercial, and telecommunications electronics.
Explore more precision electronic connectors and components in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a maximum voltage of 240V.
This model supports a current capacity of up to 2.8A.
It features gold-plated beryllium copper alloy contacts and a housing made from liquid crystal polymer.
The connector has a pitch of 0.8 mm and contains 40 contacts arranged in 2 rows.
The HSEC8-DV operates within a temperature range of -55°C to 125°C.
It utilizes a solder termination type for secure mounting on printed circuit boards.
The connector is compatible with a card thickness of 1.6 mm (0.062 inches).
This connector is suitable for applications in industrial automation, telecommunications, and computing hardware assembly.
It includes Rugged Edge Rate® contact technology that enhances signal quality and longevity.
The HSEC8-DV is manufactured in India.
The connector has a vertical orientation, which enables efficient PCB connectivity.
Yes, optional board locks, cable latching features, and weld tabs are available to secure the connector against mechanical stress.
