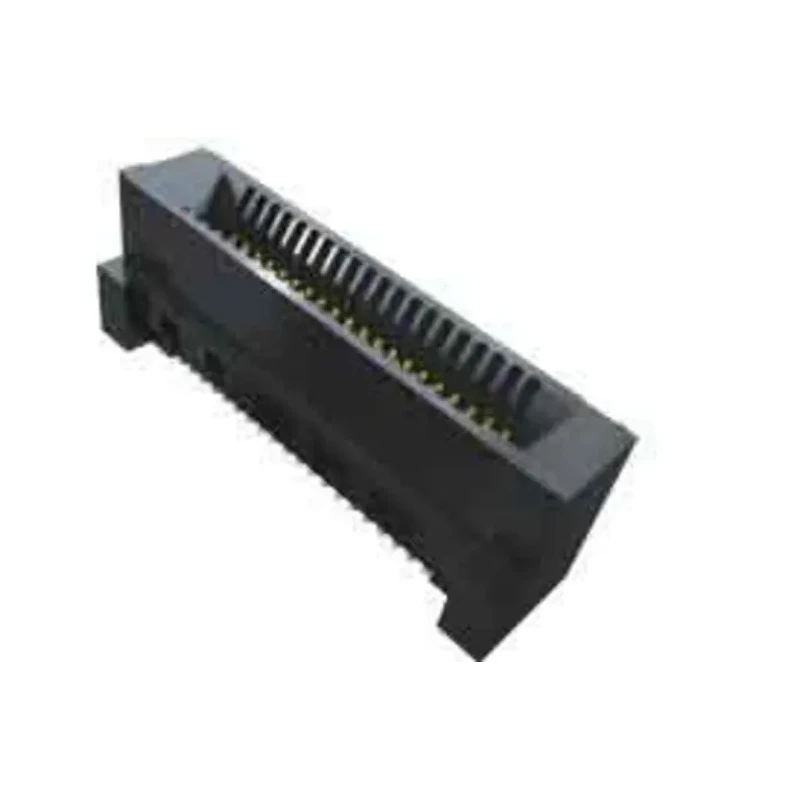

Samtec Vertical Edge Connector Female Surface Mount 120 Contacts 0.8 mm Pitch 2 Row 2.8A 240V HSEC8-DV

Samtec HSEC8-DV Vertical Edge Connector Female model offers a high-density PCB connection solution with 120 gold-plated contacts arranged in 2 rows on a 0.8 mm pitch. This surface mount Edge Connector is constructed with beryllium copper alloy contacts and a liquid crystal polymer housing, providing durability and excellent electrical performance across its operating temperature range of -55°C to 125°C.

Designed for a card thickness of 1.6 mm, this connector supports currents of up to 2.8 A and voltages up to 240 V, suitable for a variety of electronic and industrial applications. The rugged Edge Rate® contact technology ensures signal integrity for single-ended and differential pairs, making it well-suited for telecommunications and computing systems.

Additional mechanical features include optional board locks, cable latching, and weld tabs to provide secure mechanical strength during operations. With a pass-through contact option, this series offers flexibility for complex board layouts. Manufactured as an Extended Life Product™ (E.L.P.™), this connector meets high durability standards essential for long-term industrial and manufacturing uses.

Supports current up to 2.8 amps for moderate power applications. Connector features gold plated beryllium copper alloy contacts for excellent conductivity and corrosion resistance. Mount type is surface mount with solder termination ensuring secure mechanical and electrical connections.

Operates reliably at temperatures ranging from -55°C to 125°C. Housing made of liquid crystal polymer offers ruggedness and durability in demanding environments. Suitable for edge card slots with a thickness of 1.6 mm (0.062 inches).

The item includes rugged Edge Rate® contact technology, providing signal integrity for high-speed board-to-board connections. Features optional board locks, cable latching, and mechanical weld tabs for enhanced stability.

Ideal for use in industrial, telecommunications, computing, and electronic equipment manufacturing.

Use this high-quality connector in electronic assemblies requiring secure, reliable, and high-density interconnections. Perfectly suited for industrial equipment, telecommunications infrastructure, electronic manufacturing, and automation systems. Explore more connectors and related components on EnvMart for your industrial and commercial needs.
