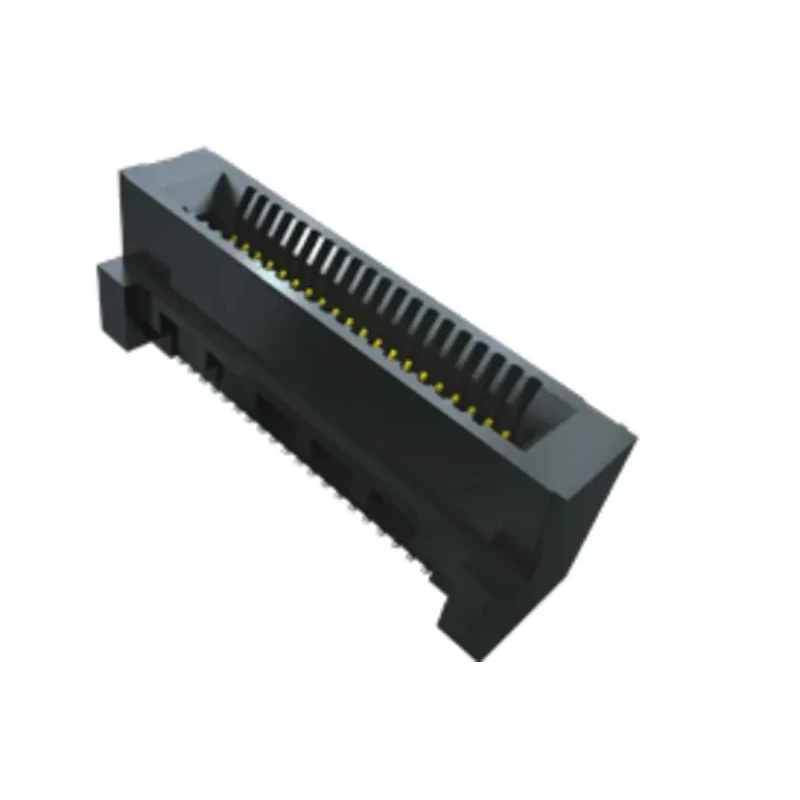

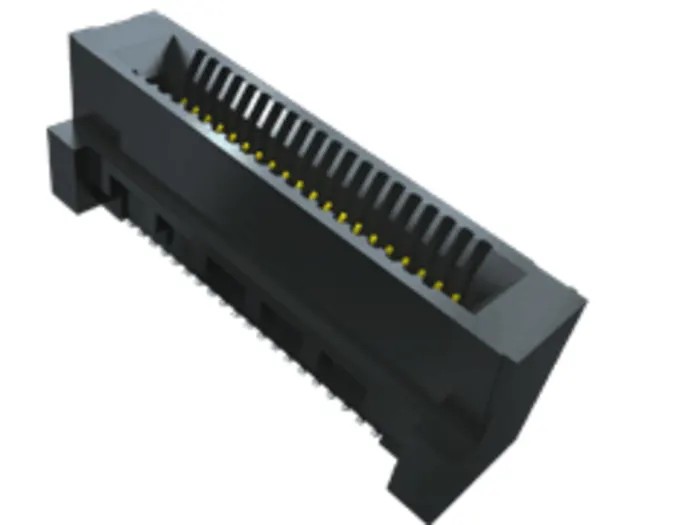

Samtec Vertical Edge Connector Female Surface Mount 80 Contacts 0.8 mm Pitch 2 Row Gold Plated HSEC8-PE
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 240V |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 2.8A |
| Model | HSEC8-PE |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | HSEC8-PE |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Card Slot | .062" (1.60 mm) |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 80 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | Edge |
| Card Thickness | 1.6mm |
Key Features
- Constructed with a beryllium copper alloy for reliable contact performance.
- Gold-plated contacts ensure low electrical resistance and high durability.
- Operates across a wide temperature range from -55°C to 125°C.
- Supports a maximum current rating of 2.8 A and voltage up to 240 V.
- Made of liquid crystal polymer housing for enhanced mechanical strength and reliability.
- Designed for edge card thickness of 1.6 mm with a card slot of 0.062" (1.60 mm).
- Termination type is solder suitable for printed circuit board mounting.
- Rugged Edge Rate® design for high-speed signal integrity up to 28+ Gbps.
Product Description
Samtec HSEC8-PE series vertical edge connector female, model HSEC8-PE, designed for surface mounting with 80 gold-plated contacts arranged in 2 rows. It features a 0.8 mm pitch and is suitable for edge cards with a thickness of 1.6 mm, providing robust mechanical and electrical performance.
Manufactured using beryllium copper alloy contacts and housed in liquid crystal polymer, this connector supports operating temperatures ranging from -55°C to 125°C, making it ideal for demanding industrial and electronic applications. The solder termination type allows for strong and reliable PCB connections.
This vertical edge connector supports a maximum current of 2.8 A and voltage rating up to 240 V. Its rugged Edge Rate® design is optimized for high-speed data transmission up to 28+ Gbps, making it suited for high-performance computing, telecommunications, and networking equipment.
The connector's gold plating provides corrosion resistance and maintains excellent contact reliability over extended use. Card slot dimension is 0.062" (1.60 mm), ensuring compatibility with standard edge cards.
Ideal applications include electronic manufacturing, industrial control systems, communication devices, and other precision electronic assemblies requiring durable and high-speed edge connectors.
Constructed with a beryllium copper alloy for reliable contact performance. Gold-plated contacts ensure low electrical resistance and high durability. Operates across a wide temperature range from -55°C to 125°C. Supports a maximum current rating of 2.8 A and voltage up to 240 V.
Made of liquid crystal polymer housing for enhanced mechanical strength and reliability. Designed for edge card thickness of 1.6 mm with a card slot of 0.062" (1.60 mm). Termination type is solder suitable for printed circuit board mounting.
Rugged Edge Rate® design for high-speed signal integrity up to 28+ Gbps. Manufactured in the United States ensuring quality standards. For reliable and high-speed Edge Connector solutions, browse the range of Samtec products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 2.8 A.
It has a voltage rating of up to 240 V.
The contacts are arranged with a pitch of 0.8 mm.
The contacts are made from beryllium copper alloy, and the housing is constructed from liquid crystal polymer.
It operates across a temperature range from -55°C to 125°C.
This connector features 80 contacts arranged in 2 rows.
The termination type is solder, suitable for printed circuit board mounting.
It is designed for edge cards with a thickness of 1.6 mm.
This model supports edge cards.
It features a rugged Edge Rate® design optimized for high-speed data transmission up to 28+ Gbps.
It is manufactured in the United States, ensuring adherence to quality standards.
The orientation of this connector is vertical.
