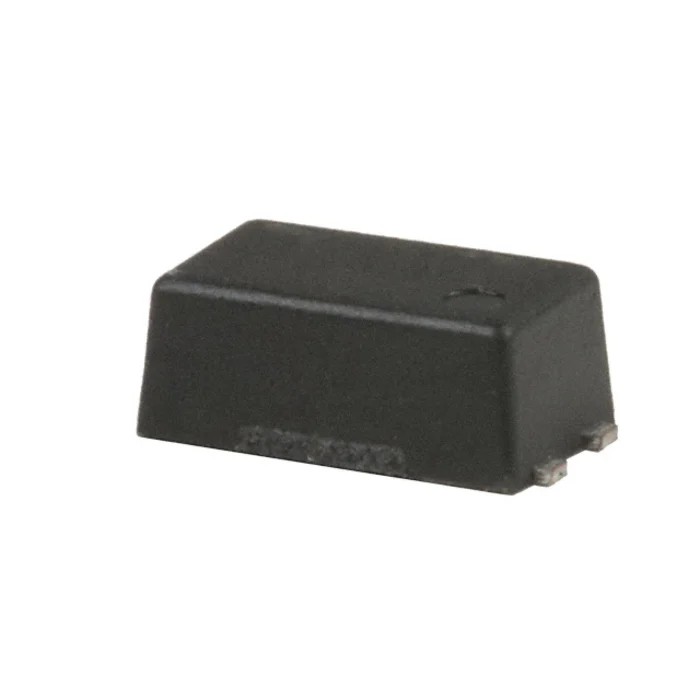

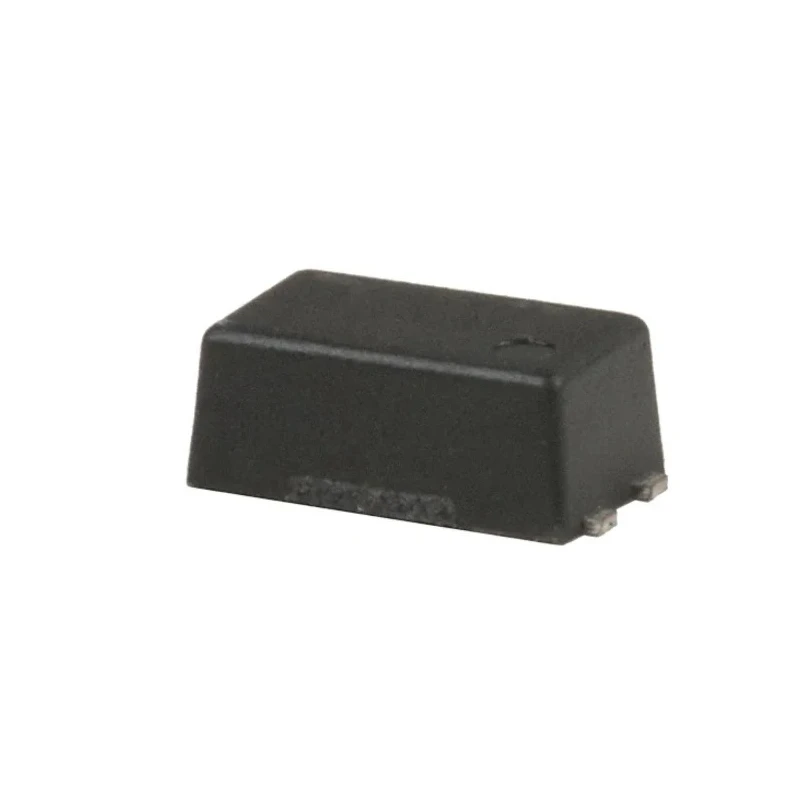

Renesas Electronics DC Input Photocoupler, 4-Pin Mini-Flat, Phototransistor Output, 1.3V Forward Voltage PS2913-1-V-F3-AX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Model | PS2913-1-V-F3-AX |
| Packaging | 500 pcs/Reel |
| Output type | Phototransistor |
| Series | PS |
| Maximum Operating Temperature | 100°C |
| Package Type | Mini-Flat |
| Minimum Operating Temperature | 55°C |
| Maximum input current | 50mA |
| Number Of Channels | 1 |
| Maximum Forward Voltage | 1.3V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 10μs |
| Maximum Current Transfer Ratio | 200% |
| Minimum Current Transfer Ratio | 50% |
Key Features
- The device features a 4-pin Mini-Flat package suitable for space-saving PCB layouts.
- It includes a GaAs LED and an NPN silicon phototransistor in one compact enclosure.
- Maximum forward voltage is 1.3 volts ensuring efficient low voltage operation.
- Supports a maximum input current of 50mA with a typical rise and fall time of 10 microseconds.
- Operating temperature ranges from -55°C minimum to 100°C maximum for robust performance.
- Maximum current transfer ratio reaches up to 200%, with a minimum guaranteed ratio of 50%.
- Boasts a high isolation voltage of 2500Vrms, making it suitable for industrial and power management applications.
- Complies with BS EN 62368-1, DIN EN 60747-5-5, and UL1577 safety standards.
Product Description
Renesas Electronics PS2913-1-V-F3-AX is a DC input photocoupler with phototransistor output, offered in a 4-pin Mini-Flat package designed to reduce PCB mounting area by approximately 30%. This compact optocoupler combines a gallium arsenide (GaAs) LED and an NPN silicon phototransistor, providing reliable optical isolation for signal transmission across circuits.
It operates with a maximum forward voltage of 1.3V and is capable of handling a maximum input current of 50mA. The typical switching characteristics include 10 microseconds rise and fall times, offering suitable speed for various electronic applications.
The PS2913-1-V-F3-AX functions effectively within a broad temperature range from -55°C to 100°C. Its high isolation voltage rating of 2500Vrms ensures safe separation between input and output circuits, making it ideal for industrial, power management, and control system applications.
The device meets international safety standards like BS EN 62368-1, DIN EN 60747-5-5, and UL1577, guaranteeing compliance for professional use.
This product comes in reels containing 500 units, facilitating bulk manufacturing and assembly processes. Its miniature flat-lead form factor enables space savings on printed circuit boards, critical for high-density electronic designs.
The 4-pin Mini-Flat package reduces PCB area requirements by about 30% compared to conventional types. Its Phototransistor output ensures effective electrical isolation while transmitting input signals optically. Typical rise and fall times of 10μs make it compatible with moderate-speed switching applications.
Wide operating temperature range supports usage in harsh environmental conditions. High isolation voltage rating promotes reliability and protection in sensitive electronics. Compliance with multiple international standards ensures quality and safety.
Available in large quantity reels for manufacturing efficiency.
This optocoupler is widely applicable in industrial automation, power supply circuits, instrumentation, and other electronics fields requiring safe signal isolation between high and low voltage sides.
