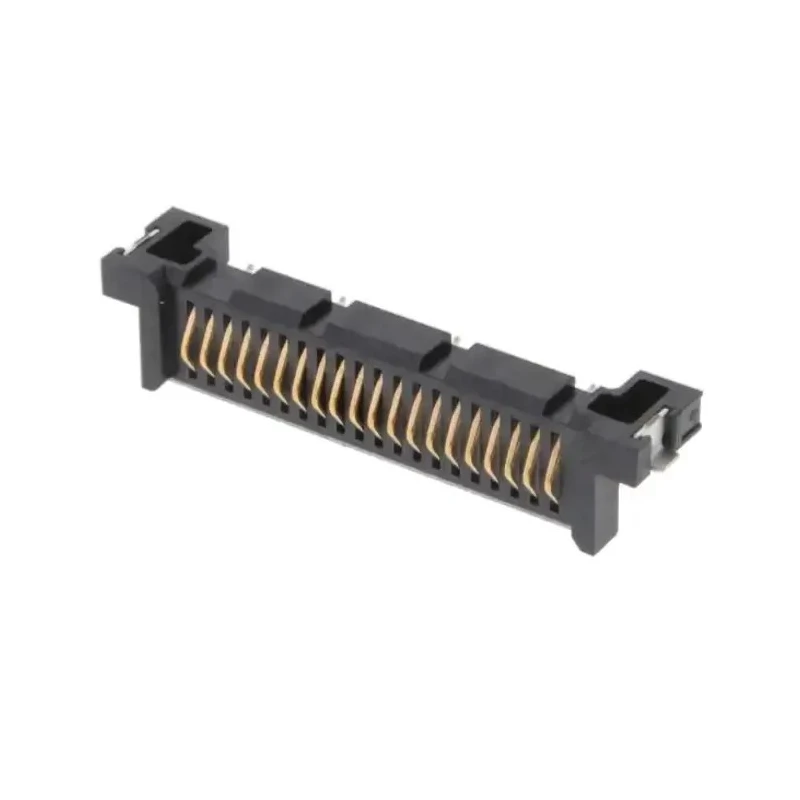

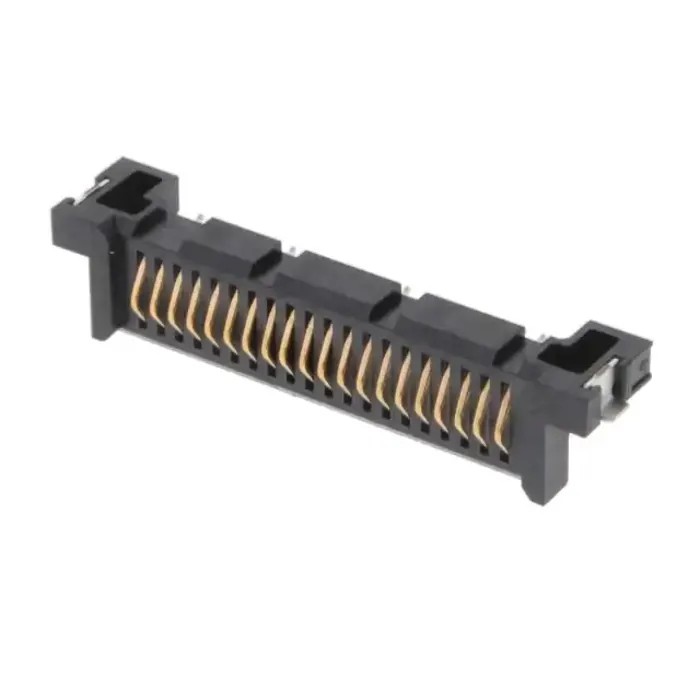

Samtec SAL1 Series Right Angle Edge Connector Female, Surface Mount, 254 Contacts, 1 mm Pitch, 2 Row, Solder Termination

Samtec SAL1-127-01-S-S-A-TR is a right angle edge connector female designed for surface mount applications, featuring 254 contacts with a precise 1 mm pitch in two rows. This edge connector is engineered for high-reliability electronic connections in various industrial and electronic manufacturing applications.

The connector supports a maximum current of 2.9 amperes, ideal for medium power electronic circuits. Its contacts are made from beryllium copper alloy, combining excellent conductivity with mechanical strength. The selective gold plating on contact areas enhances signal integrity and corrosion resistance, while matte tin plating on the tail improves solderability.

Encased within a liquid crystal polymer housing, this component offers high durability, thermal stability, and resistance to harsh environments, supporting operating temperatures from -55°C to 125°C. The solder termination type and surface mount style facilitate efficient PCB assembly and reliable mechanical and electrical connections.

This SAL1 series connector includes 2 rows with 27 positions each, enabling a total of 54 connection points in a compact footprint. The right angle orientation supports design flexibility for space-constrained printed circuit boards found in telecommunications, computing, and industrial control equipment.

As a compliant component, this product meets quality expectations for industrial, manufacturing, and commercial electronic assembly and prototyping. Its robust construction makes it suitable for use in demanding environments alongside other electronic connectors and components.

The connector supports a current rating of 2.9A for reliable electrical performance. It utilizes beryllium copper alloy contact material with selective gold and matte tin plating for corrosion resistance. Constructed with a liquid crystal polymer housing ensuring durability and stability.

Operates effectively within a temperature range of -55°C to 125°C. Features solder termination type for secure mounting on PCBs. Designed with 2 rows and 27 positions per row for high-density connections. Offers surface mount mounting to support modern PCB assembly techniques.

Connector gender is female, suitable for mating with male Edge Connectors. Explore more high-quality electronic connectors like Samtec SAL1 series at EnvMart for diverse industrial, electronics manufacturing, and prototyping requirements.
