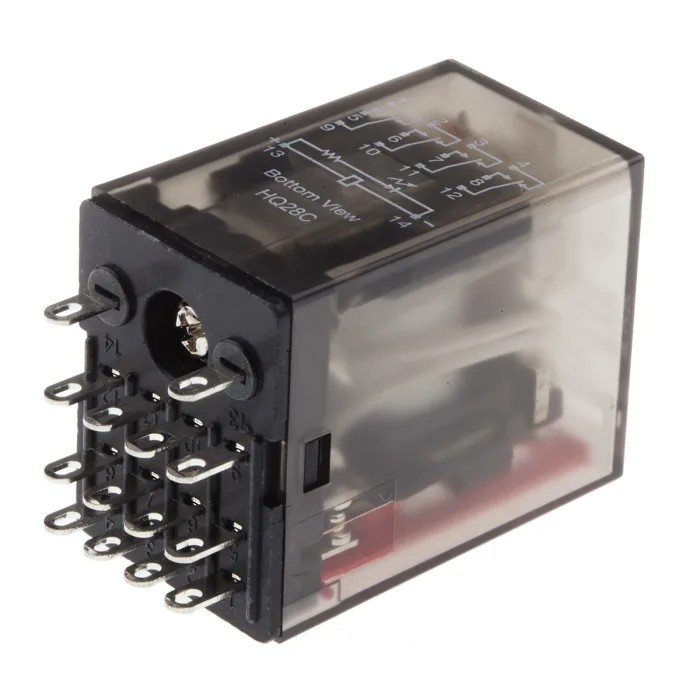

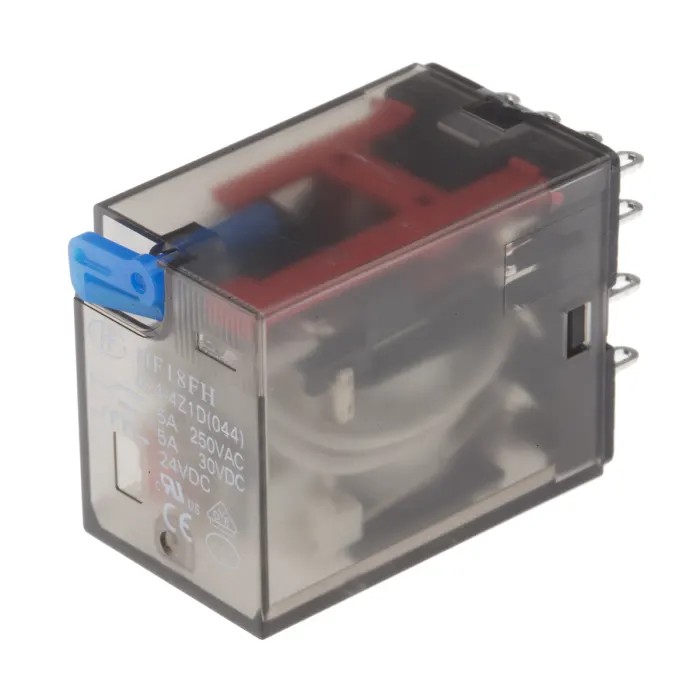

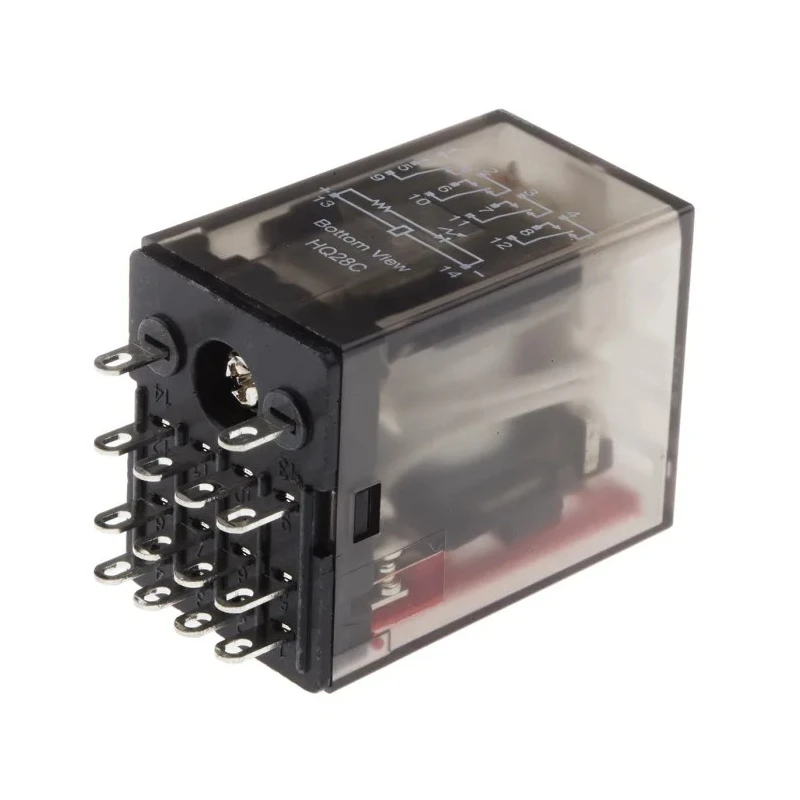

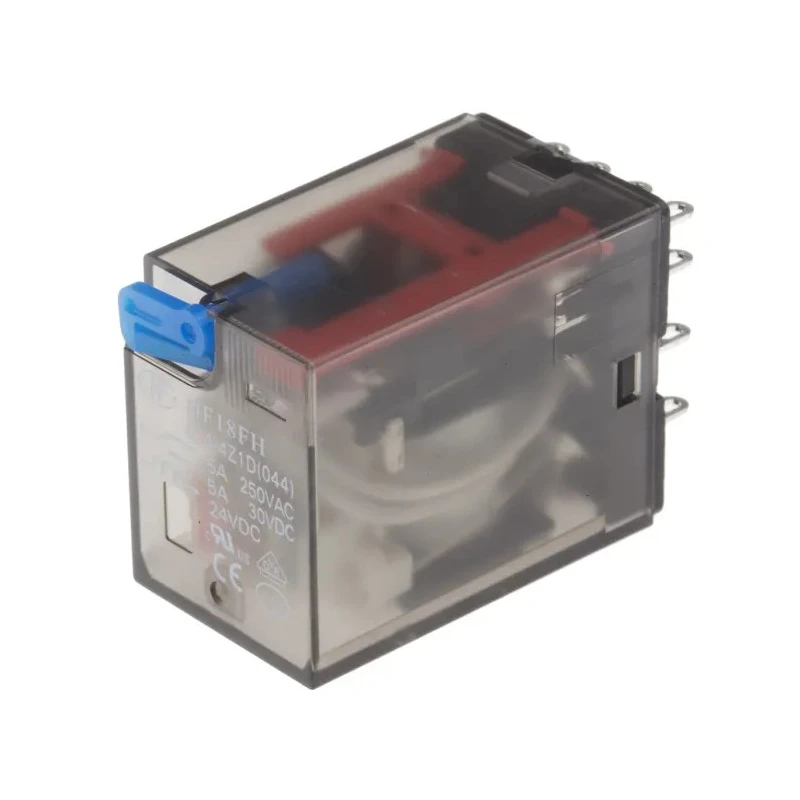

Hongfa Europe GMBH Chassis Power Relay 24V dc Coil 6A Switching Current 4PDT HF18FH0244Z1D
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 36mm |
| Length | 28mm |
| Model | HF18FH0244Z1D |
| Width | 21.5mm |
| Mount Type | Chassis |
| Contact Material | Silver Alloy |
| Series | HF18FH |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CQC, cULus |
| Coil Resistance | 650Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 1.1W |
| Switching Power | 150W |
Key Features
- This relay operates with a coil voltage of 24V dc.
- It has a switching current capacity of 6A suitable for intermediate power control.
- The contact configuration is 4PDT, providing four poles double throw switching.
- Mount type is chassis with plug-in terminal for easy installation and replacement.
- The relay supports switching voltages up to 250V AC and 30V DC.
- Coil resistance is 650Ω ensuring stable coil operation with a coil power of only 1.1W.
- Operating temperature ranges from -40°C to 70°C for reliable indoor and industrial use.
- Contact material is silver alloy with a low contact resistance of 100mΩ for reliable electrical connection.
Product Description
Hongfa Europe GMBH HF18FH0244Z1D chassis power relay is an industrial-grade miniature intermediate relay designed to provide reliable power switching for electrical and automation systems. It features a 24V direct current coil voltage and a 4 pole double throw (4PDT) contact configuration, allowing versatile control of multiple circuits simultaneously.
Built for durable performance, this relay supports a switching current of 6A and handles switching voltages up to 250V AC and 30V DC, making it well-suited for use in control panels, machinery, HVAC systems, and industrial automation.
The chassis mount design with plug-in terminals allows straightforward installation and maintenance, optimizing system uptime. The coil resistance of 650 ohms and coil power of 1.1W ensure energy-efficient coil operation. It operates comfortably over a wide ambient temperature range from -40°C to 70°C.
Constructed with silver alloy contacts, the relay maintains low contact resistance of 100 milliohms, supporting reliable, low-noise switching. Its compact footprint of 28mm length x 21.5mm width x 36mm height suits space-constrained applications.
This product complies with CQC and cULus standards, ensuring safety and quality expected in industrial environments. Originating from China, the HF18FH0244Z1D is ideal for professionals seeking a robust relay solution for power control.
This relay operates with a coil voltage of 24V dc. It has a switching current capacity of 6A suitable for intermediate power control. The contact configuration is 4PDT, providing four poles double throw switching. Mount type is chassis with plug-in terminal for easy installation and replacement.
The relay supports switching voltages up to 250V AC and 30V DC. Coil resistance is 650Ω ensuring stable coil operation with a coil power of only 1.1W. Operating temperature ranges from -40°C to 70°C for reliable indoor and industrial use.
Compact dimensions: length 28mm, width 21.5mm, height 36mm. Contact material is silver alloy with a low contact resistance of 100mΩ for reliable electrical connection. Certified to CQC and cULus standards assuring quality and safety compliance.
Explore more Power Relays from Hongfa Europe GMBH and related products in the Electronics & Electricals category at EnvMart for reliable automation and control components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC.
It has a maximum switching current capacity of 6A.
This model features a 4 pole double throw (4PDT) contact configuration.
The dimensions are 28mm in length, 21.5mm in width, and 36mm in height.
It supports switching voltages up to 250V AC and 30V DC.
The coil resistance is 650Ω, ensuring stable operation.
The contact material is silver alloy, which provides low contact resistance.
It operates within a temperature range of -40°C to 70°C.
This model uses a chassis mount type with plug-in terminals for easy installation.
It complies with CQC and cULus standards, ensuring safety and quality.
The coil power is 1.1W, contributing to energy-efficient operation.
The contact resistance is 100mΩ, which supports reliable electrical connections.
