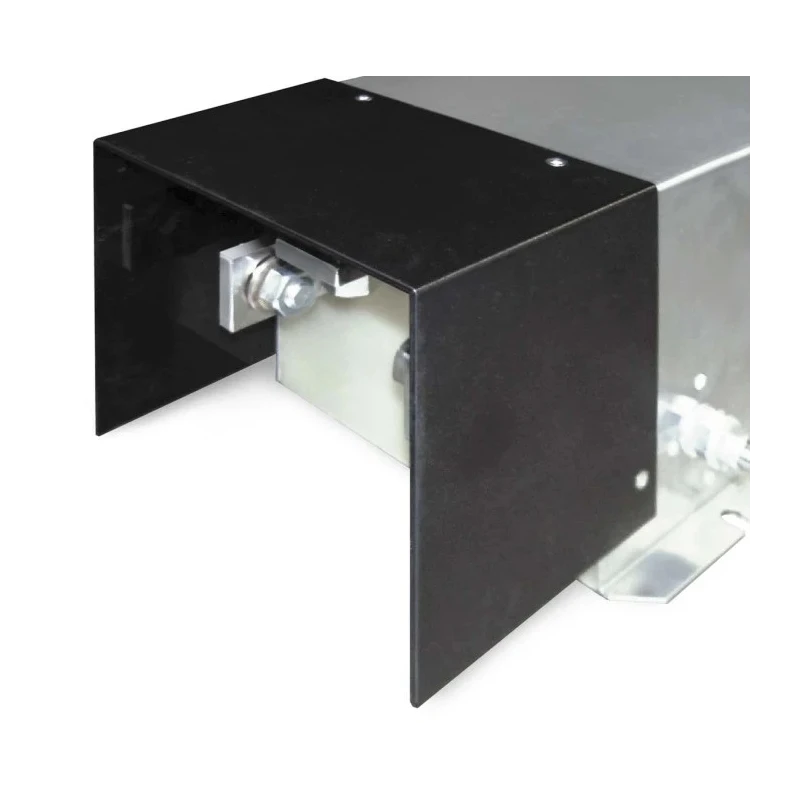

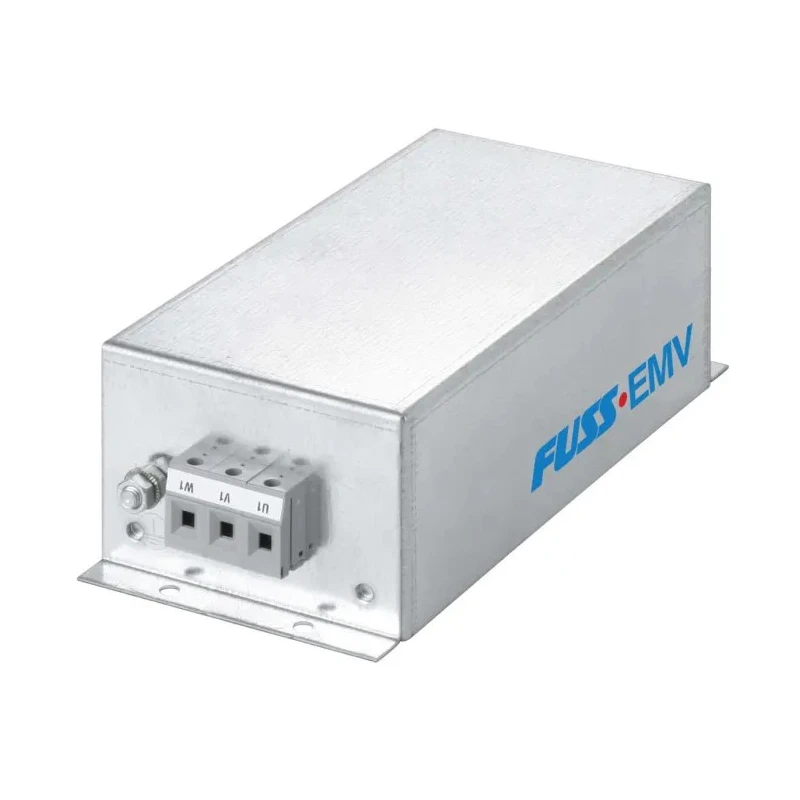

FUSS-EMV 3-Phase Panel Mount EMI Filter 10A 528V AC 50Hz, 60 Hz Screw Termination 3F480-010.260
Specifications
| Country of Origin | India |
|---|---|
| Brand | FUSS-EMV |
| Height | 255mm |
| Length | 257mm |
| Model | 3F480-010.260 |
| Depth | 110mm |
| Mount Type | Panel Mount |
| Operating Frequency | 50, 60Hz |
| Series | 3F480 |
| Maximum Operating Temperature | 45°C |
| Number Of Stages | 2 |
| Maximum Current | 10A |
| Number of Phases | 3 |
| Leakage Current | 4mA |
| Maximum Voltage | 528V ac |
| Termination Style | Screw |
| Power Loss | 10W |
Key Features
- Designed for effective EMI suppression in 3-phase electrical systems.
- Mount type is panel mount with reliable screw termination.
- Operates safely up to 45°C ambient temperature.
- With a compact size of 257mm length, 255mm height, and 110mm depth.
- Features low leakage current of 4mA ensuring efficient operation.
- Power loss rated at 10W for energy-efficient filtering.
- Includes two-stage design achieving high damping and compliance with EN61800-3 and EN55011 norms.
- Suitable for industrial and electronic drive systems requiring EMI noise reduction.
Product Description
FUSS-EMV 3F480-010.260 is a high-performance 3-phase EMI filter designed for panel mount applications. It supports a maximum current of 10A and a voltage rating of up to 528V AC, operating efficiently in standard frequencies of 50Hz to 60Hz. The filter features a robust screw termination style ensuring secure electrical connections.
This EMI line filter incorporates a two-stage design delivering superior attenuation of high frequency interference voltages to comply with electromagnetic compatibility standards EN61800-3 (drive interference suppression) and EN55011 (power electrical device norms). The maximum operating temperature is 45°C, suitable for a wide range of industrial environments.
With physical dimensions of 257mm in length, 255mm in height, and 110mm in depth, it is compact for easy installation in control panels and electronic devices. Leakage current is minimized to 4mA, maximizing operational efficiency, while power loss is maintained at a low 10W to reduce energy consumption.
This FUSS-EMV model 3F480-010.260 is ideal for use in industrial electronic drive systems, machines, and other devices needing effective EMI noise filtering to ensure electromagnetic compliance and reliable equipment performance. The panel mount form factor with screw terminals ensures ease of integration and durable usage.
Effective EMI suppression for 3-phase power lines. Complies with EN61800-3 and EN55011 standards. Two-stage filter design for high damping performance. Low leakage current reduces energy loss. Compact dimensions facilitate panel installation.
Power loss kept minimal for energy efficiency. Suitable for industrial, laboratory, and construction environments. Explore additional EMI filters and related products to meet diverse electrical noise filtering requirements on EnvMart.
Explore more products in our EMI Filters & Protection category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this model is 10A.
This EMI filter supports a maximum voltage rating of 528V AC.
It operates efficiently at standard frequencies of 50Hz and 60Hz.
The leakage current is minimized to 4mA, ensuring efficient operation.
The power loss for this unit is rated at 10W, promoting energy-efficient filtering.
It has dimensions of 257mm in length, 255mm in height, and 110mm in depth.
The maximum operating temperature is 45°C, suitable for various industrial environments.
It features a screw termination style, ensuring secure electrical connections.
This model incorporates a two-stage design for effective EMI suppression.
It is suitable for industrial, laboratory, and construction environments requiring EMI noise reduction.
It complies with EN61800-3 and EN55011 standards for electromagnetic compatibility.
This EMI filter is designed for panel mount applications.
