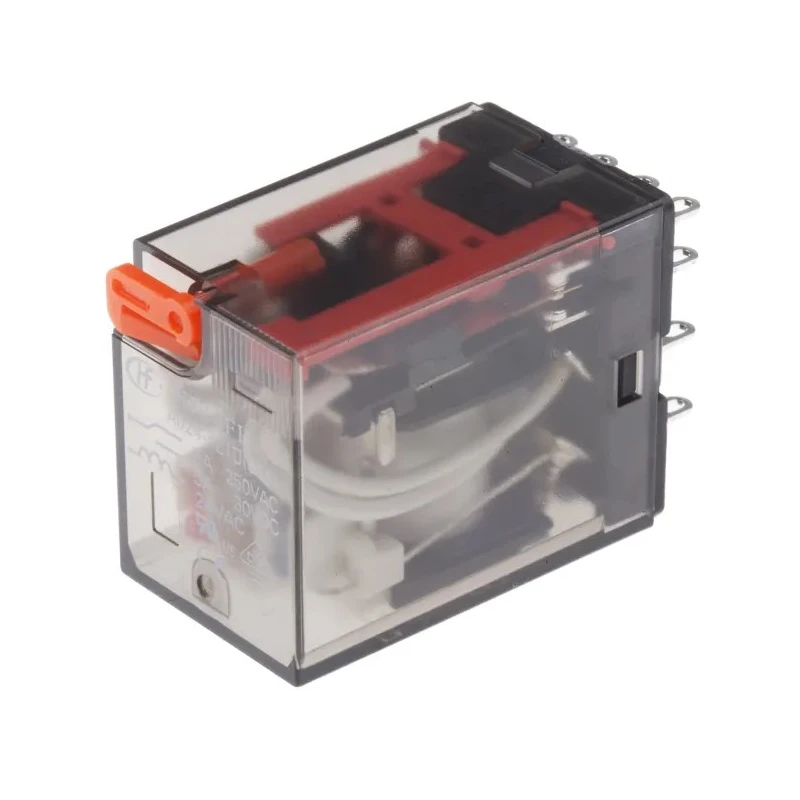

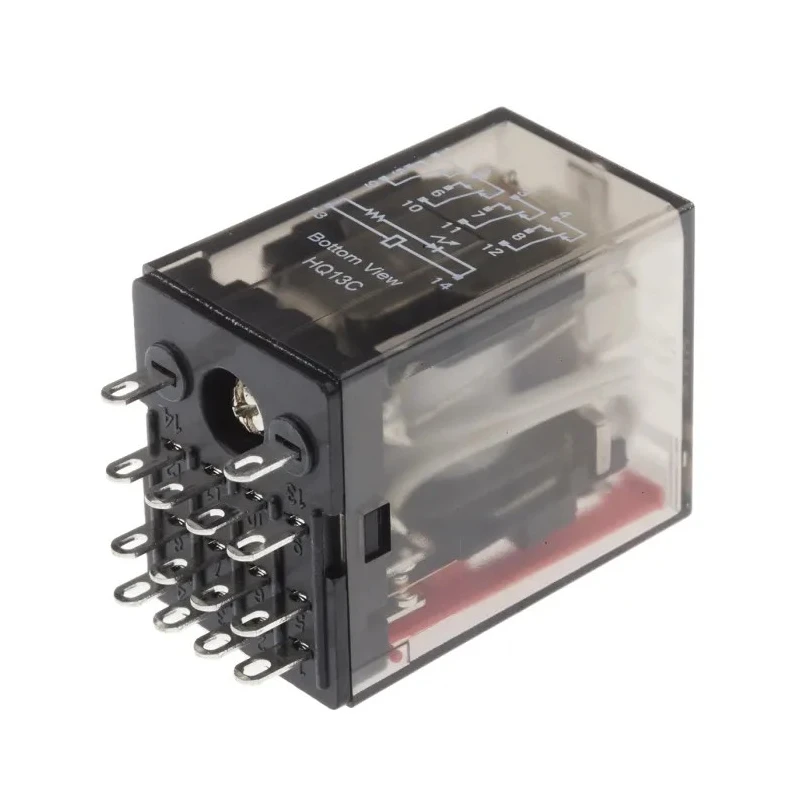

Hongfa Europe GMBH Chassis Power Relay 24V AC Coil 5A Switching Current 4PDT HF18FHA0244Z1D
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 36mm |
| Length | 28mm |
| Model | HF18FHA0244Z1D |
| Width | 21.5mm |
| Mount Type | Chassis |
| Contact Material | Silver Alloy |
| Series | HF18FH |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CQC, cULus |
| Coil Resistance | 184Ω |
| Coil Voltage | 24V ac |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 1.8W |
| Switching Power | 150W |
Key Features
- Designed for chassis mounting with plug-in terminals for easy installation.
- Operates reliably between -40°C and 70°C ambient temperatures.
- Supports switching power of up to 150W for AC and DC loads.
- Constructed with silver alloy contacts providing low contact resistance of 100mΩ.
- Compact dimensions with 36mm height, 28mm length, and 21.5mm width.
- Coil resistance of 184Ω with power consumption of 1.8W.
- Certified with CQC and cULus approvals ensuring safety and quality.
- Ideal for industrial, automation, and electrical applications requiring high power relay switching.
Product Description
Hongfa Europe GMBH HF18FHA0244Z1D chassis power relay is designed for robust performance in industrial and electrical applications. Featuring a 24V AC coil voltage and plug-in terminal type, this relay supports a 5A switching current with a 4PDT contact configuration, enabling versatile control of multiple circuits.
Its chassis-mount design ensures secure installation, while the relay withstands operational temperatures ranging from -40°C to 70°C, making it suitable for harsh environments. The contact material consists of silver alloy which guarantees durable conductivity and minimizes contact resistance measured at 100mΩ.
The relay has a switching power capacity of 150W and can handle switching voltages up to 250V AC and 30V DC. With compact dimensions of 36mm height, 28mm length, and 21.5mm width, it offers a space-saving solution for power relay requirements.
Coil resistance is rated at 184Ω with an associated coil power of 1.8W, ensuring efficient electrical consumption. Certified by CQC and cULus standards, this relay complies with international safety and quality regulations.
This product is ideally used in automation systems, industrial controls, HVAC equipment, manufacturing machinery, and other electrical power switching applications, ensuring reliable and safe operations with long service life.
Designed for chassis mounting with plug-in terminals for easy installation. Operates reliably between -40°C and 70°C ambient temperatures. Supports switching power of up to 150W for AC and DC loads. Constructed with silver alloy contacts providing low contact resistance of 100mΩ.
Compact dimensions with 36mm height, 28mm length, and 21.5mm width. Coil resistance of 184Ω with power consumption of 1.8W. Certified with CQC and cULus approvals ensuring safety and quality. Ideal for industrial, automation, and electrical applications requiring high power relay switching.
Explore more Power Relay products and solutions at EnvMart for your diverse industrial and electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of up to 5A.
The relay has compact dimensions of 36mm in height, 28mm in length, and 21.5mm in width.
It operates with a coil voltage of 24V AC.
The relay can handle a maximum switching power of 150W for both AC and DC loads.
It features a 4PDT (four-pole double-throw) contact configuration.
The contact resistance is measured at 100mΩ, ensuring low resistance for efficient operation.
This unit operates reliably within a temperature range of -40°C to 70°C.
It is designed with plug-in terminals for easy installation.
The coil resistance is rated at 184Ω.
It is certified with CQC and cULus approvals, ensuring compliance with safety and quality standards.
It is ideally used in industrial controls, automation systems, HVAC equipment, and manufacturing machinery.
