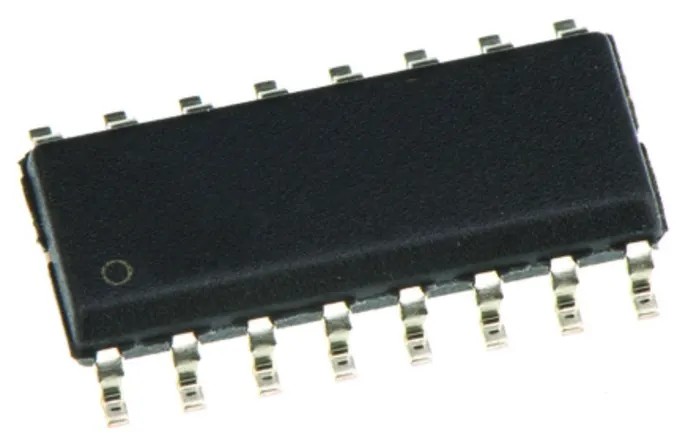

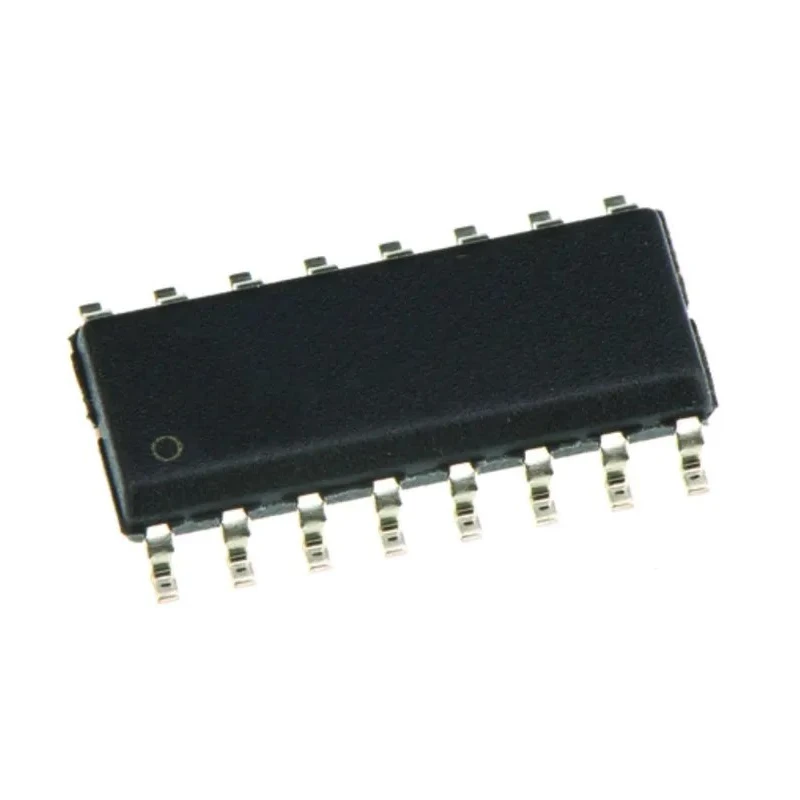

DiodesZetex 7-Input Logic Gate, 16-Pin SOIC ULN2003V12S16-13

DiodesZetex ULN2003V12S16-13 7-Input Logic Gate, 16-Pin SOIC is a surface mount logic IC designed primarily for multi-channel inductive load sink driver applications. Operating with supply voltages between 3.3V and 5V, this CMOS device can handle maximum high-level output currents of up to 700mA and low-level currents of 140mA. Its extended temperature range from -40°C to 125°C ensures reliability across various industrial and electronic environments.

The device package is a SOIC type with 16 pins, measuring approximately 10mm in length and 1.26mm in height. It features 7 input channels and belongs to the ULN logic family, providing voltage output types without Schmitt Trigger inputs. It is not certified for automotive standards but is highly suitable for industrial automation, electronic component integration, power management systems, and semiconductor applications.

This logic gate is manufactured in China, adhering to standard industrial semiconductor production guidelines, and is ideal for embedding within PCBs for electronic projects and production lines. Its capabilities support peripheral drivers, multi-channel inductive loads, and Darlington transistor applications, making it versatile for diverse electronic designs.

The device delivers high output currents suitable for driving inductive loads. The surface mount design offers compactness and efficient PCB integration. Wide operating temperature range supports harsh environmental conditions.

Standard SOIC package ensures compatibility with common PCB layouts. Suitable for use in industrial electronics, power control circuits, and automation systems. Non-Schmitt Trigger input design simplifies signal processing requirements.

Reliable for use where high-current sink drivers are required in voltage output configurations. This product is part of EnvMart's extensive Logic Gate offering designed to meet rigorous industrial and laboratory standards.
