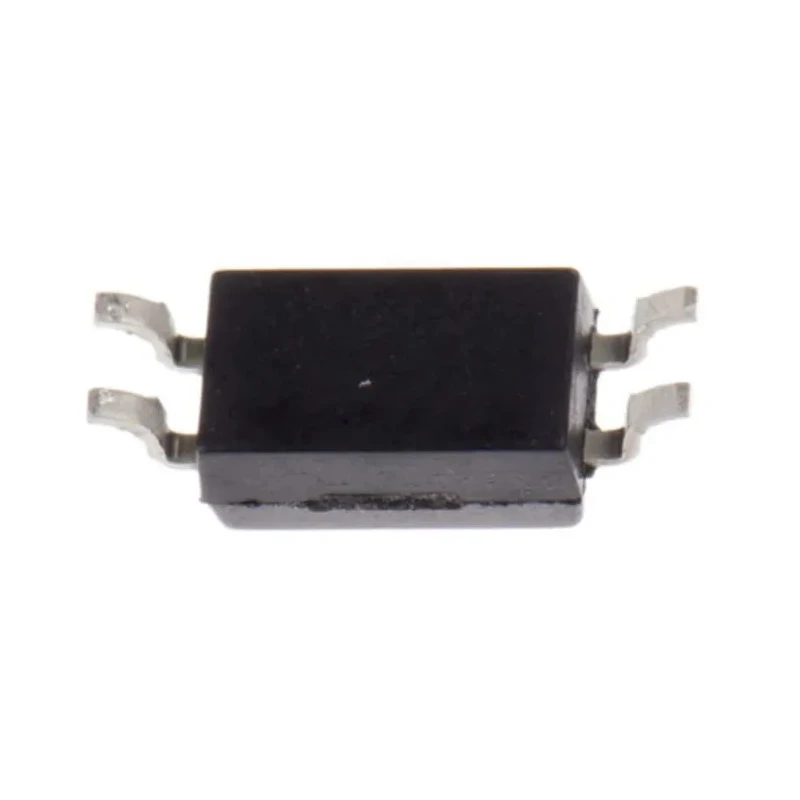

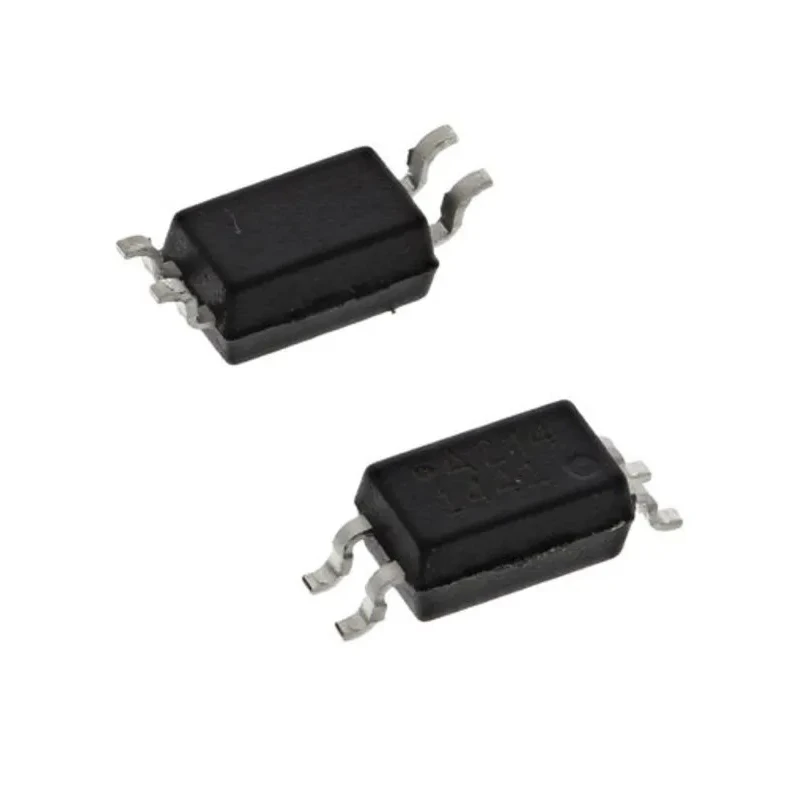

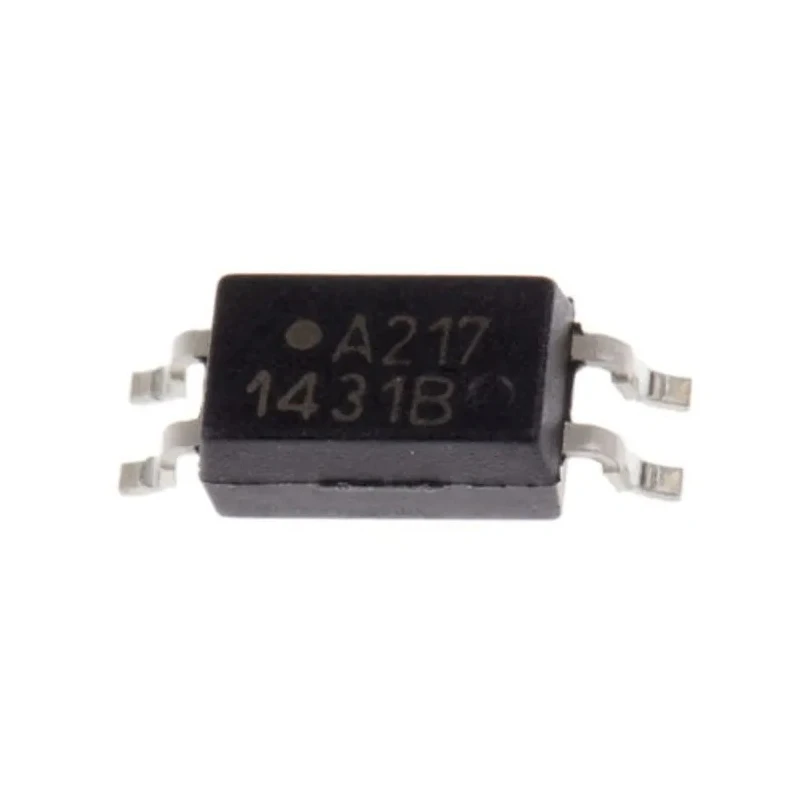

Broadcom DC Input Optocoupler 4-Pin Surface Mount Phototransistor Output 50mA 110°C ACPL-217-50DE

Free Delivery in India | Lowest Global Shipping Charges

Broadcom DC Input Optocoupler 4-Pin Surface Mount Phototransistor Output 50mA 110°C ACPL-217-50DE

Name: Broadcom DC Input Optocoupler 4-Pin Surface Mount Phototransistor Output 50mA 110°C ACPL-217-50DE
Brand: Broadcom
SKU: 412321
Price: 0.4 USD
Availability: InStock



Category Optocoupler Brand Broadcom Condition New

Specifications

Country of Origin	China
Brand	Broadcom
Model	ACPL-217-50DE
Packaging	Tape & Reel
Mount Type	Surface
Output type	Phototransistor
Series	ACPL
Maximum Operating Temperature	110°C
Package Type	SO
Minimum Operating Temperature	-55°C
Maximum input current	50mA
Number Of Channels	1
Standards/Approvals	UL, IEC/EN/DIN EN 60747-5-2, CSA
Maximum Forward Voltage	1.4V
Number of Pins	4
Input Current Type	DC
Maximum Current Transfer Ratio	600%
Typical Fall Time	3μs
Minimum Current Transfer Ratio	50%
Automotive Standard	AEC-Q100

Key Features

Designed for DC input applications with a maximum input current of 50mA.
Features a high isolation voltage of 3000Vrms ensuring safety in sensitive circuits.
Operates over a wide temperature range from -55°C to 110°C.
Maximum forward voltage rated at 1.4V for efficient operation.
Current transfer ratio ranges from 50% minimum to 600% maximum for flexible signal control.
Typical fall time of 3 microseconds supports fast switching requirements.
Packaged in tape and reel format for automated manufacturing processes.
Meets automotive AEC-Q100 standard and multiple certification standards including UL and IEC/EN/DIN EN 60747-5-2.

Product Description

Broadcom ACPL-217-50DE DC Input Optocoupler is a high-performance electronic component designed for power sequence controllers and input/output interface applications. It features a single phototransistor output channel encapsulated in a compact 4-pin small-outline (SO) surface mount package, enabling efficient board space utilization.

The device supports DC input current up to 50mA with a maximum forward voltage of 1.4V, ensuring low power dissipation. Its outstanding isolation voltage of 3000Vrms allows safe interfacing between high and low voltage circuits.

Operating across a broad temperature range from -55°C to 110°C, the ACPL-217-50DE is well-suited for various industrial, automotive, and commercial electronics requiring robust and reliable optocoupler performance.

The typical fall time of 3 microseconds facilitates rapid switching in digital circuits, while a current transfer ratio spanning from a minimum of 50% to a maximum of 600% provides versatility in signal amplification and isolation tasks.

Manufactured under strict quality standards, this optocoupler complies with UL, IEC/EN/DIN EN 60747-5-2, CSA certifications, and the automotive-grade AEC-Q100 standard, making it suitable for demanding applications.

Packaged in tape and reel format, it ensures compatibility with automated assembly lines, enhancing production efficiency. Designed for DC input applications with a maximum input current of 50mA. High isolation voltage of 3000Vrms for safe circuit separation.

Wide operating temperature range from -55°C to 110°C. Maximum forward voltage of 1.4V reduces power losses. Current transfer ratio between 50% and 600% for flexible signal control. Fast switching with typical fall time of 3 microseconds.

Automotive grade compliant to AEC-Q100. Certified to UL, IEC/EN/DIN EN 60747-5-2, and CSA standards. Surface mount SO package for compact designs. Packaging suitable for automated production, tape and reel.

This Broadcom ACPL-217-50DE Optocoupler is ideal for use in industrial automation, automotive electronics, power control, and communication systems. Explore more components in EnvMart's electronics catalog to find complementary products for your applications.
