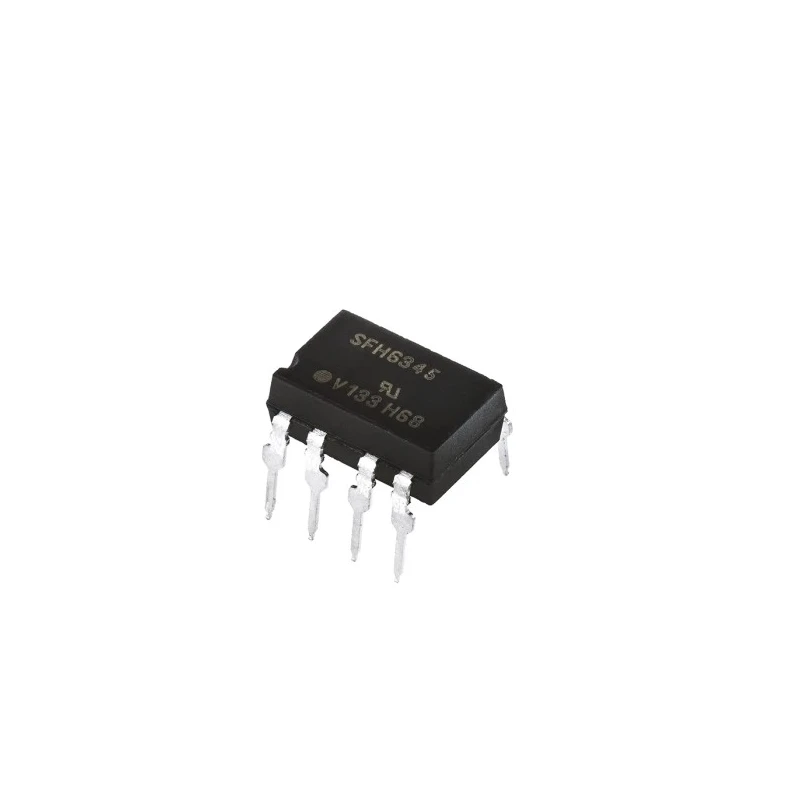

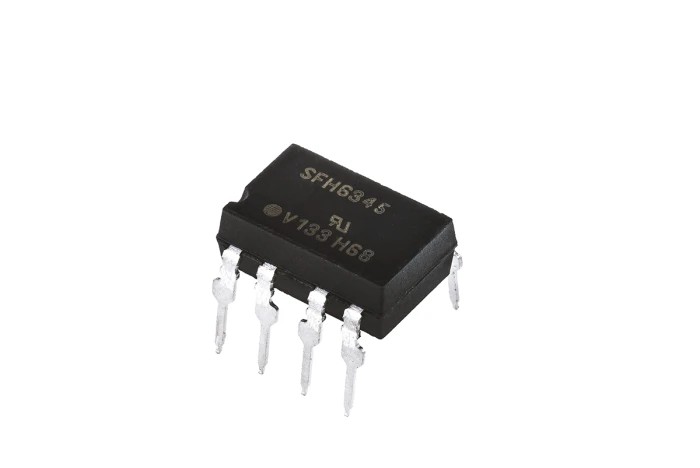

Vishay DC Input Transistor Output Optocoupler Through Hole 8-Pin PDIP SFH6345

Name: Vishay DC Input Transistor Output Optocoupler Through Hole 8-Pin PDIP SFH6345
Brand: Vishay
SKU: 412625
Price: 1.55 USD
Availability: InStock



Category Optocoupler Brand Vishay Condition New

Specifications

Country of Origin	Malaysia
Brand	Vishay
Model	SFH6345
Packaging	Tape & Reel
Mount Type	Through Hole
Output type	Transistor
Series	SFH6345
Maximum Operating Temperature	100°C
Package Type	PDIP
Minimum Operating Temperature	-55°C
Maximum input current	25mA
Number Of Channels	1
Maximum Forward Voltage	1.9V
Number of Pins	8
Input Current Type	DC
Maximum Current Transfer Ratio	30%
Minimum Current Transfer Ratio	19%
Isolation Voltage	5300V ac

Key Features

This optocoupler supports DC input current type with a maximum forward voltage of 1.9V.
It has a maximum input current rating of 25mA and operates from -55°C to 100°C temperature range.
The device provides a logic output with a minimum current transfer ratio of 19% and a maximum of 30%.
The packaging is tape and reel, suitable for automated assembly processes.
The optocoupler meets industry standards including cUL, UL1577, DIN EN 60747-5-5, and others.
It is manufactured in Malaysia and part of the SFH6345 series by Vishay Semiconductor.

Product Description

Vishay SFH6345 DC input transistor output optocoupler is designed with an 8-pin PDIP through-hole mount for reliable integration into electronic circuits requiring isolation.

This device offers 5300V ac isolation voltage, providing effective protection between input and output circuits, essential for applications such as industrial controls, telecom systems, programmable logic controllers, AC adapters, switch mode power supplies, smart meters, and power on internet and solar solutions.

Operating efficiently within a temperature range of -55°C to 100°C, this optocoupler supports a DC input current type with a maximum forward voltage of 1.9V, ensuring low power dissipation.

The transistor output type enables logic output functionality with current transfer ratios ranging from 19% minimum to 30% maximum, optimizing signal integrity and responsiveness. Packaged in tape and reel form, the SFH6345 is suitable for automated handling and surface mount assembly processes, enhancing manufacturing efficiency and consistency.

This Optocoupler complies with several international standards, including cUL, UL1577, DIN EN 60747-5-5 (VDE0884-5), GB4943.1-2011, and CQC GB8898-2001. It is a key component for ensuring electrical isolation in sensitive electronic systems.

The component is manufactured in Malaysia by Vishay Semiconductor, known for quality and reliability in optoelectronic devices. This product is ideal for industrial, construction, HVAC, telecom, and electrical engineering applications requiring compact isolation solutions.
