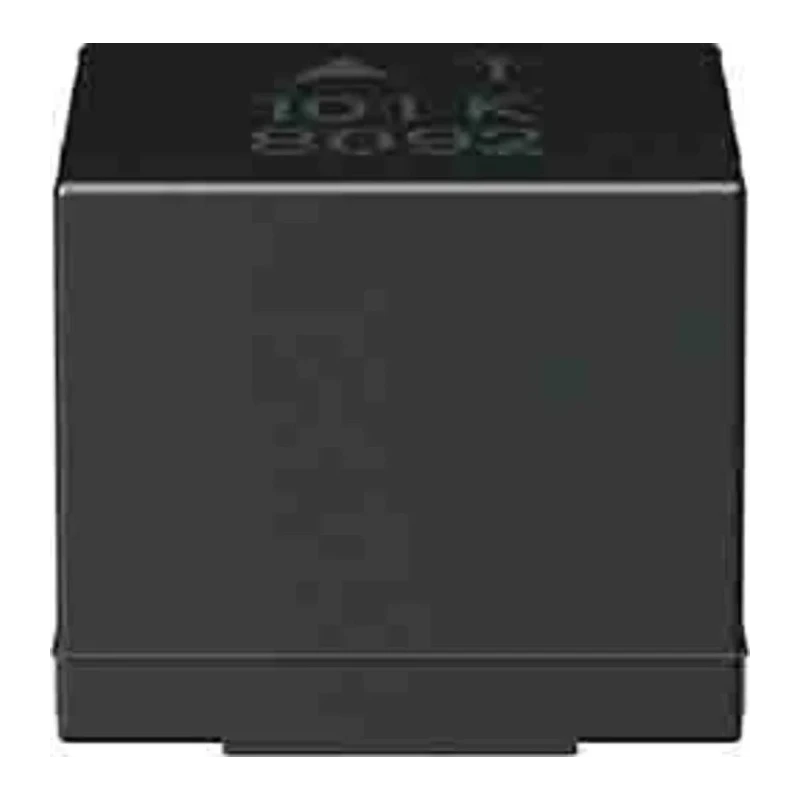

TDK SIMID 2220 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 56 μH ±10% 600 mA Idc Q:15 B82442T1563K000
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | TDK |
| Height | 5mm |
| Length | 5.6mm |
| Model | B82442T1563K000 |
| Depth | 5mm |
| Packaging | Tape & Reel |
| Series | SIMID |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 56μH |
| Standards/Approvals | AEC-Q200, JEDEC J-STD 020D, RoHS |
| Package/Case | 2220 |
| Maximum DC Current | 600mA |
| Maximum DC Resistance | 679mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 7.5MHz |
| Minimum Quality Factor | 15 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a ferrite core providing stable magnetic properties.
- Unshielded wirewound design optimized for surface mounting applications.
- Operates reliably within -55°C to 150°C temperature range.
- Max DC resistance is 679 mΩ ensuring efficient current handling.
- Suitable for automotive applications compliant with AEC-Q200 standard.
- Packaged in tape and reel format for automated assembly.
- Maximum self-resonant frequency of 7.5 MHz supports high-frequency circuits.
- RoHS compliant and halogen-free for environmental safety.
Product Description
TDK B82442T1563K000 SIMID series unshielded wirewound surface mount inductor features a ferrite core with inductance of 56 μH and tolerance of ±10%. It supports a maximum DC current of 600 mA and offers a minimum quality factor of 15, making it ideal for filtering supply voltages, coupling, decoupling, and DC to DC converters in various electronic devices.
The inductor is designed for use in automotive electronics, telecommunications, consumer electronics, and industrial electronics where reliability up to 150°C operating temperature is crucial. Its unshielded construction and solder termination style enable surface mount assembly efficiency.
This inductance component meets rigorous standards including AEC-Q200 automotive testing, JEDEC J-STD 020D for lead-free reflow soldering, and RoHS environmental compliance. The package case code is 2220, measuring 5.6 mm in length, 5 mm in height, and 5 mm in depth.
The device exhibits a maximum DC resistance of 679 mΩ and operates without shielding to minimize parasitic effects. The maximum self-resonant frequency of 7.5 MHz allows use in high-frequency switching power supplies.
Packaged in tape and reel format, it facilitates automated pick-and-place manufacturing processes. Made in Hungary, this new condition inductor is molded with a flame-retardant material, providing durability and safety in demanding applications.
Ferrite core for magnetics stability and efficiency. Wirewound construction for precise inductance values. Automotive standard AEC-Q200 ensures quality in harsh environments. Wide operating temperature range from -55°C to +150°C.
Tape & reel packaging supports high volume manufacturing. Molded with flame-retardant materials. RoHS compliant and halogen-free design.
This inductor is suitable for industrial, automotive, telecommunications, and consumer electronics applications requiring high reliability and stable inductance. Explore more electronic components under Surface Mount Inductors at EnvMart for high-performance solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 56 μH with a tolerance of ±10%.
The maximum DC current for this inductor is 600 mA.
The inductor has a length of 5.6 mm, a height of 5 mm, and a depth of 5 mm.
It can operate at a maximum temperature of 150°C.
The minimum operating temperature is -55°C.
The maximum DC resistance is 679 mΩ.
The maximum self-resonant frequency is 7.5 MHz.
It complies with AEC-Q200, JEDEC J-STD 020D, and RoHS standards.
The inductor is constructed with a ferrite core, which provides stable magnetic properties.
It is packaged in tape and reel format, facilitating automated assembly.
The minimum quality factor is 15.
It is suitable for automotive electronics, telecommunications, consumer electronics, and industrial electronics applications.
