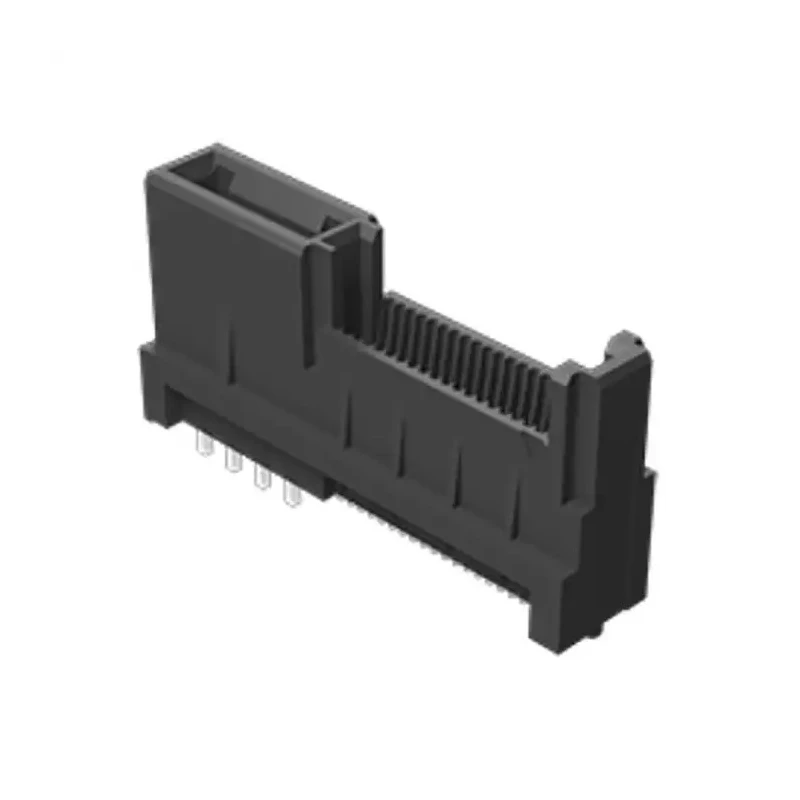

Samtec Vertical Edge Connector Female Surface Mount, 200 Contacts, 0.8 mm Pitch, 2 Row, Solder HSEC8-1100-01-L-DV-A-K

Samtec HSEC8-1100-01-L-DV-A-K is a high-performance vertical edge connector female series designed primarily for PCIe card applications. It offers 200 gold-plated beryllium copper alloy contacts arranged in 2 rows with a 0.8 mm pitch for precise and reliable connections on surface mounted PCBs.

Designed to operate at currents up to 2.8 A and voltages up to 240 V, this connector supports rigorous industrial and electronic environments. It maintains stable operation over a wide temperature range from -55°C minimum to 125°C maximum, ensuring durability in challenging conditions.

The polyamide housing material combines mechanical strength with excellent resistance to chemicals and heat. Solder termination provides a secure and standard mounting solution on printed circuit boards. The connector supports cards with a thickness of 1.6 mm, fitting into a 0.062" (1.60 mm) card slot for broad compatibility.

This connector series includes optional features such as weld tabs for enhanced mechanical strength, board locks, and cable latching options to meet specific application demands. The rugged Edge Rate® contact design supports signal speeds up to 28+ Gbps, making it well-suited for high-speed data transfer needs in industrial, computing, networking, and telecommunications applications.

Applications include industrial automation, high-speed computing and telecom hardware, electronic instrumentation, and surface mount PCB assemblies. This connector features a vertical orientation suitable for PCIe card types.

It supports a maximum current rating of 2.8 A for robust electrical performance. The connector has 2 rows with gold-plated beryllium copper alloy contacts for durability and conductivity. Operating temperature range is from -55°C to 125°C ensuring reliable function under harsh conditions.

Termination is via solder, making it compatible with standard PCB assembly processes. The housing is made of polyamide providing mechanical strength and chemical resistance. Card thickness supported is 1.6 mm with a card slot of 0.062" (1.60 mm).

Voltage rating up to 240 V is suitable for various electronic and industrial applications. Explore a broad range of Samtec connectors and reliable Edge Connector solutions at EnvMart for your next industrial and electronic design projects.
