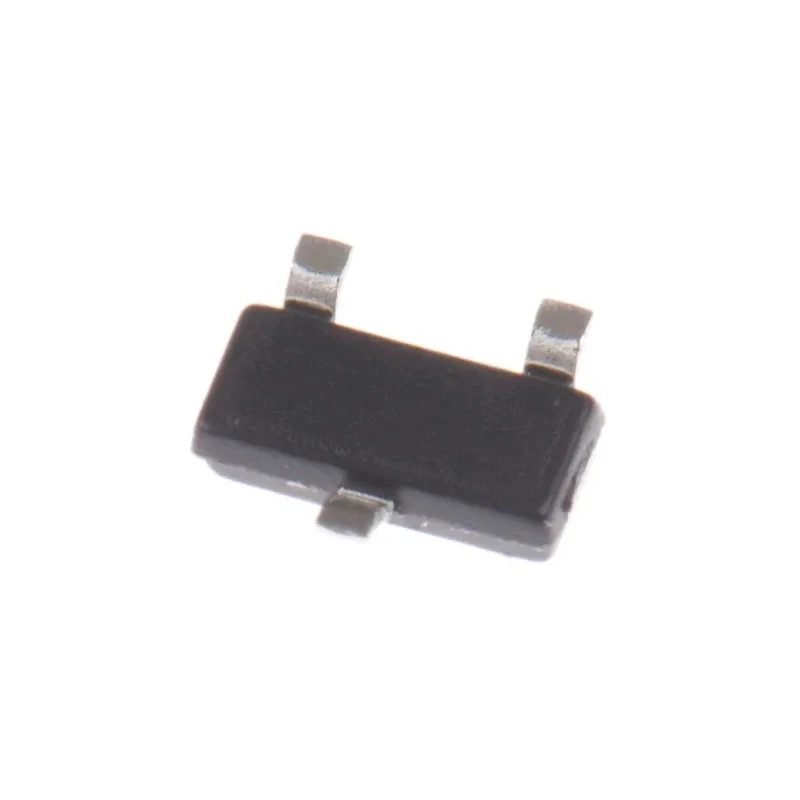

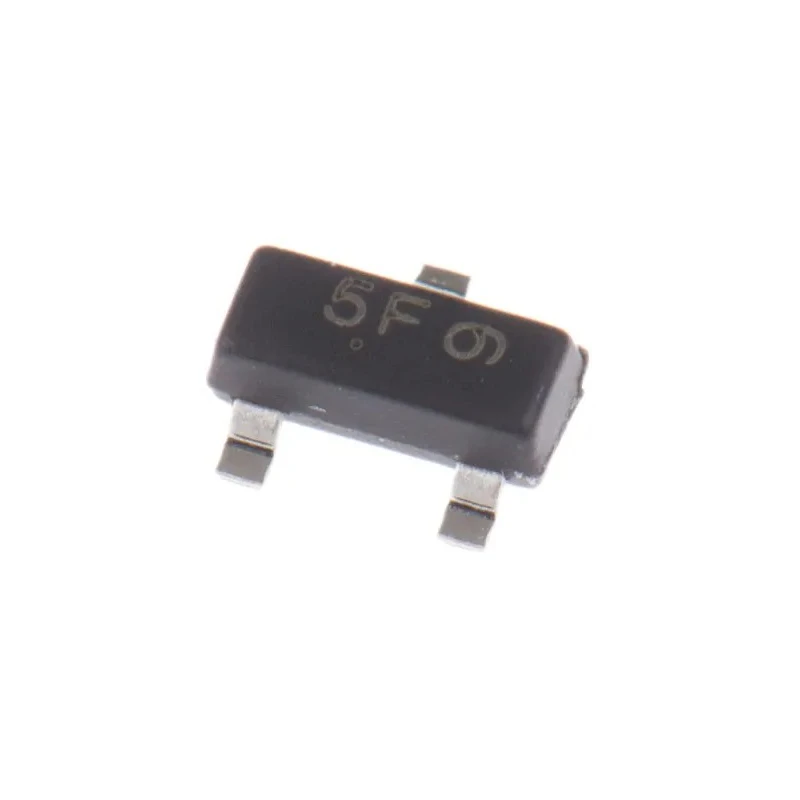

onsemi Small Signal PNP Transistor BC808-25LT1G, 500 mA, 25 V, 3-Pin SOT-23 Package BC808-25LT1G

onsemi BC808-25LT1G is a high-quality small signal PNP bipolar junction transistor designed for various electronic applications. It supports a maximum DC collector current of 500 mA and features a collector-emitter voltage rating of 25 V, making it suitable for low power switching and amplification in electronic circuits.

The device is housed in a compact 3-pin SOT-23 surface mount package, facilitating densely packed PCB layouts in industrial, automotive, and consumer electronics.

With a minimum DC current gain (hFE) of 160, the BC808-25LT1G provides efficient amplification while operating reliably over a wide temperature range from -55°C to 150°C, ensuring durability under demanding environmental conditions.

The transistor has a maximum power dissipation rating of 225 mW and a high transition frequency (ft) of 100 MHz, enabling performance in high-frequency switching scenarios. This component meets the automotive standard AEC-Q101, ensuring that it complies with stringent automotive industry requirements for quality and reliability.

Physical dimensions measure 3.04 mm in length, 2.64 mm in width, and 1.11 mm in height, making it compatible with modern compact circuit designs. Maximum DC collector current: 500 mA. Maximum collector-emitter voltage: 25 V.

Compact 3-pin SOT-23 package. Minimum DC current gain (hFE): 160. Operating temperature range: -55°C to 150°C. Maximum power dissipation: 225 mW. Transition frequency (ft): 100 MHz. Automotive standard: AEC-Q101 certified.

Dimensions: 3.04 mm x 2.64 mm x 1.11 mm.

This transistor is ideal for use in electronic circuits including industrial controls, automotive electronics, telecommunications, and consumer devices where reliable switching and amplification are required.
