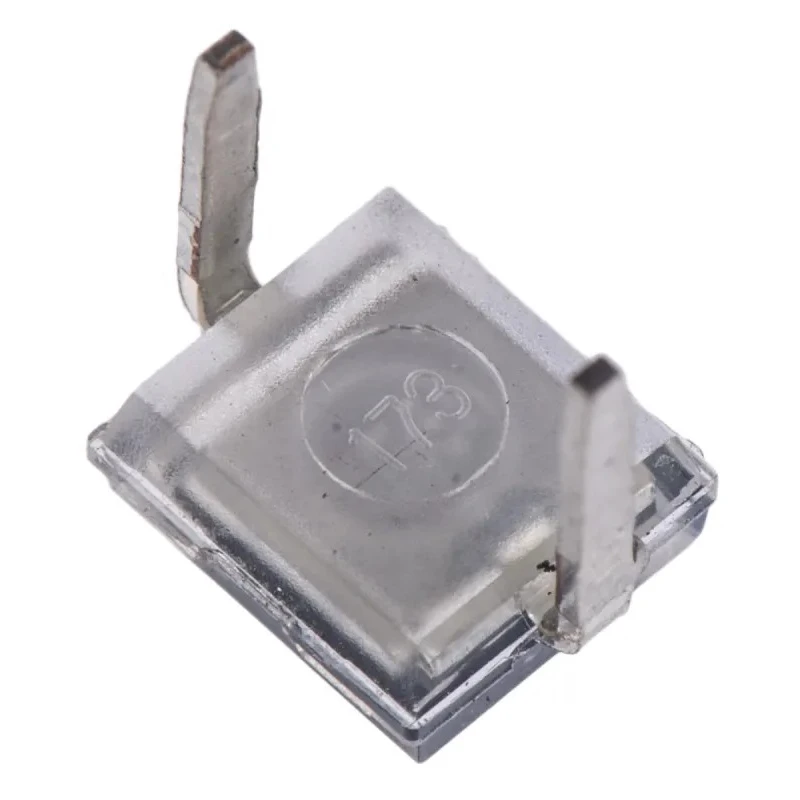

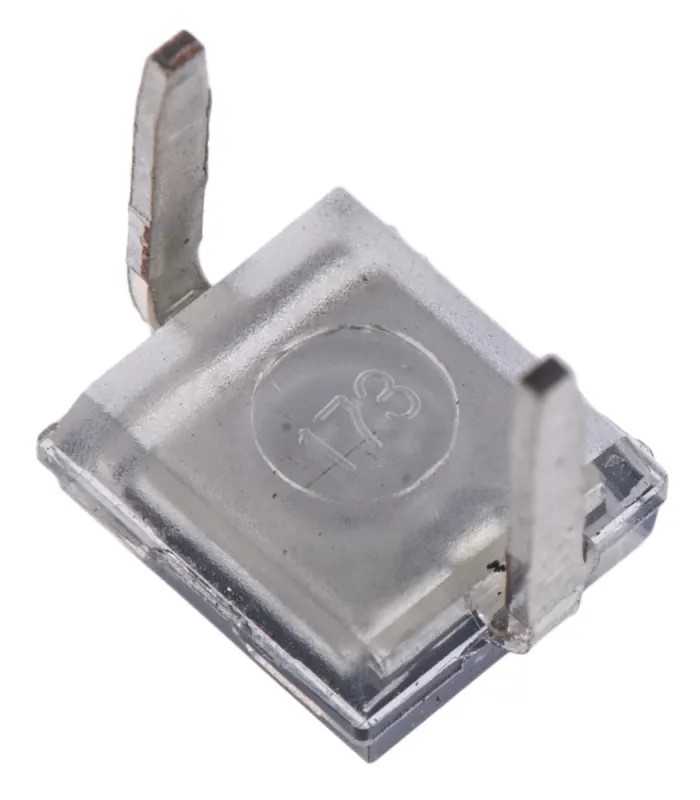

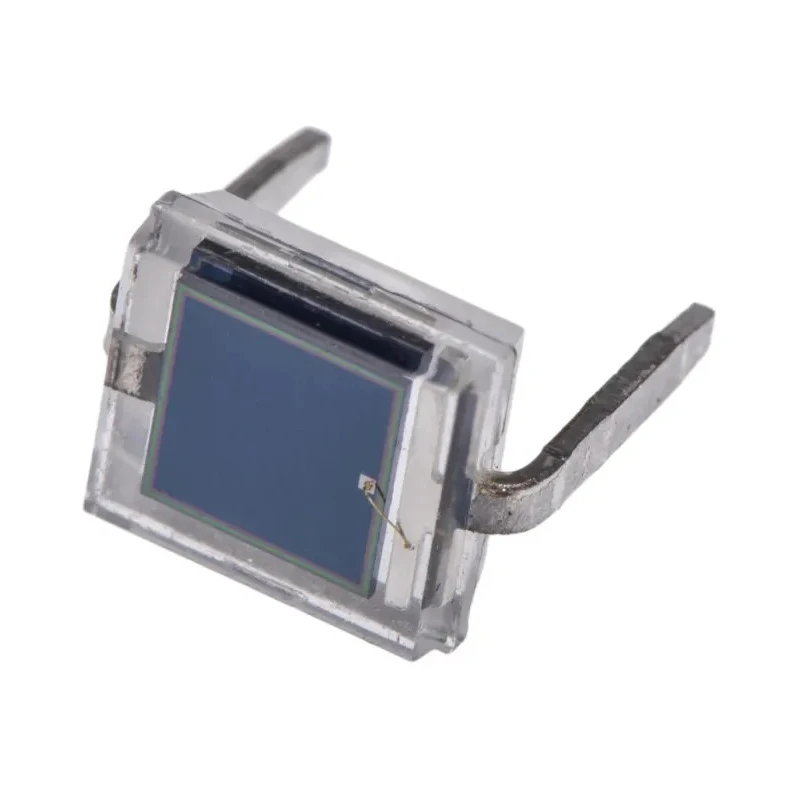

Vishay Visible Light and Infrared Photodiode, Through Hole Flat Top, 65° Angle, 2 Pins, 5.4x4.3x3.2mm BPW34
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5mm |
| Brand | Vishay |
| Dimensions | 5.4 x 4.3 x 3.2 mm |
| Height | 3.2mm |
| Length | 5.4mm |
| Model | BPW34 |
| Packaging | Tape & Reel |
| Width | 4.3mm |
| Mount Type | Through Hole |
| Series | BPW |
| Short Circuit Current | 50μA |
| Maximum Operating Temperature | 100°C |
| Package Type | Flat Top |
| Minimum Operating Temperature | -40°C |
| Polarity | Forward |
| Dark Current | 2nA |
| Open Circuit Voltage | 350mV |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Fall Time | 100ns |
| Wavelength of Peak Sensitivity | 900nm |
| Spectrums Detected | Visible Light, Infrared |
| Breakdown Voltage | 60V |
| Minimum Wavelength Detected | 430nm |
| Maximum Wavelength Detected | 1100nm |
| Angle of Half Sensitivity | 65 ° |
| Radiant sensitive area | 7.5 mm² |
Key Features
- The device has a radiant sensitive area of 7.5 mm² for efficient detection.
- It employs a through-hole flat top package measuring 5.4 x 4.3 x 3.2 mm.
- Operates effectively between -40°C to 100°C temperature range.
- Features fast response times with typical rise and fall times of 100 ns.
- Includes 2 pins for secure mounting in through-hole PCB designs.
- Exhibits a low dark current of 2 nA, ensuring accurate photodetection.
- Breakdown voltage is rated at 60 V for reliable operation.
- Peak sensitivity wavelength is 900 nm, suitable for visible and infrared detection.
Product Description
Vishay BPW34 is a high-performance silicon PIN photodiode designed for sensitive detection of visible and near-infrared (IR) light. The device features a flat top package with through-hole mounting, measuring 5.4 x 4.3 x 3.2 mm, making it suitable for various optoelectronic applications requiring reliable and precise light sensing.
Its radiant sensitive area of 7.5 mm² ensures high photo sensitivity and rapid response times with typical rise and fall times of 100 nanoseconds, enabling precise detection in high-speed photo detector applications. The BPW34 photodiode operates efficiently within a wide temperature range from -40°C to +100°C, making it suited for industrial, laboratory, and electronic manufacturing environments where temperature stability is essential.
This photodiode has a half-sensitivity angle of 65°, allowing it to capture light across a broad field of view. It covers a spectral range from 430 nm to 1100 nm, peaking at 900 nm, which includes visible light and near IR, making it versatile for general photodetection, IR remote controls, and optical communication systems.
The device features a low dark current of 2 nanoamperes and a breakdown voltage rating of 60 volts, which supports sensitive and stable operation with minimal noise. The photodiode has forward polarity and includes two pins for robust through-hole mounting. It is supplied in tape and reel packaging, optimized for automated PCB assembly lines.
Applications for the Vishay BPW34 include industrial sensor systems, optical safety equipment, electronic test instruments, and general light detection circuits requiring durability and precision.
High radiant sensitivity with broad spectral response. Fast response suitable for high-speed detection. Wide operating temperature for versatile conditions. Compact through-hole package for easy PCB integration. Low dark current ensures accurate signal detection.
Tape and reel packaging for automated manufacturing.
Discover more Vishay Photodiodes and explore the extensive range of optoelectronic components available for industrial, commercial, and laboratory applications in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay BPW34 photodiode detects wavelengths from 430 nm to 1100 nm, with peak sensitivity at 900 nm, suitable for both visible light and near-infrared applications.
This model has dimensions of 5.4 mm in length, 4.3 mm in width, and 3.2 mm in height, making it compact for various applications.
The photodiode operates effectively within a temperature range of -40°C to +100°C, allowing it to function in diverse environmental conditions.
It features typical rise and fall times of 100 nanoseconds, enabling rapid detection suitable for high-speed applications.
The device has a radiant sensitive area of 7.5 mm², which contributes to its high photo sensitivity and efficient light detection.
The BPW34 has a breakdown voltage rated at 60 volts, ensuring reliable operation under various conditions.
It employs a through-hole flat top package, making it suitable for secure mounting in PCB designs with two pins.
This photodiode exhibits a low dark current of 2 nanoamperes, which helps ensure accurate photodetection with minimal noise.
It is supplied in tape and reel packaging, which is optimized for automated PCB assembly lines.
This photodiode is suitable for applications including industrial sensor systems, optical safety equipment, and general light detection circuits.
The BPW34 has a half-sensitivity angle of 65°, allowing it to detect light across a broad field of view.
This model is compliant with RoHS standards, ensuring it meets environmental regulations for hazardous substances.
