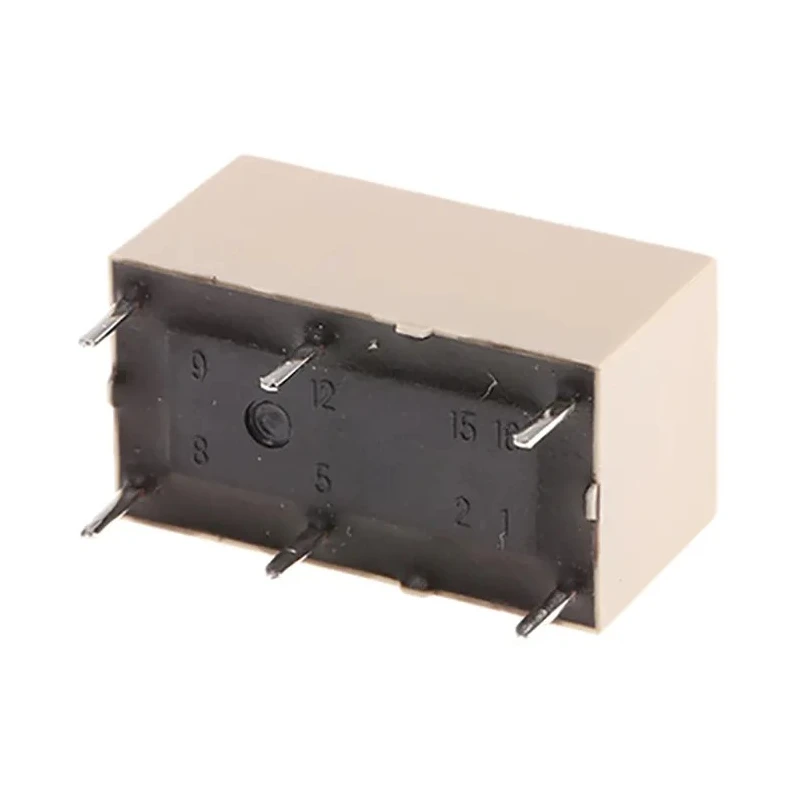

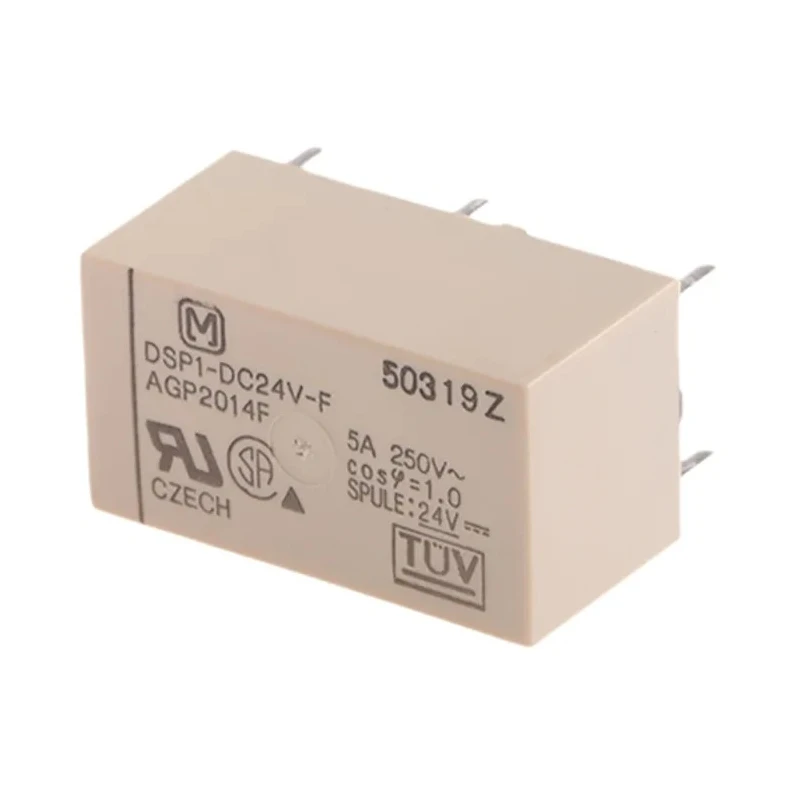

Panasonic DIN Rail Power Relay 24V DC Coil 5A Switching Current DPST DSP1-DC24V-F
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Panasonic |
| Height | 10.5mm |
| Length | 20.2mm |
| Model | DSP1-DC24V-F |
| Width | 14mm |
| Mount Type | DIN Rail |
| Contact Material | Gold Plated |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.9kΩ |
| Coil Voltage | 24V dc |
| Coil Power | 300mW |
| Panasonic Non-Latching Relay, 8A Switching CurrentBrand | Panasonic |
Key Features
- Compact miniature PCB mount design with DIL format for easy installation.
- High contact rating offering reliable 5A switching current capability.
- Gold plated contacts ensure excellent conductivity and durability.
- Sealed construction allows for automatic washing and protection against contaminants.
- Suitable for use in office devices, industrial electronics, temperature controllers, and PLCs.
- Wide operating temperature range from -40°C to 65°C guarantees performance stability.
- Mounts easily on standard DIN rail for efficient panel assembly.
- Through hole terminal type simplifies PCB integration and wiring.
Product Description
Panasonic DSP1-DC24V-F is a DIN Rail Power Relay featuring a 24V DC coil voltage and a double pole single throw (DPST) contact configuration capable of switching a current of 5 amperes. This miniature relay is designed with a DIL format providing a compact footprint measuring 20.2mm in length, 14mm width, and 10.5mm height. The relay includes gold plated contacts for superior electrical conductivity and longevity.
It offers a sealed construction which enables automatic washing, making it highly suitable for reliability-demanding environments such as manufacturing, industrial controls, and automation systems. The device operates effectively within a temperature range of -40°C to 65°C, ideal for diverse climatic conditions. Its coil power consumption is low at 300 milliwatts and coil resistance is specified at 1.9 kilo-ohms.
Mounting is designed for DIN rail installation with through hole terminals to facilitate secure PCB mounting and connections. Typical applications include use in office and industrial electronic devices, temperature controllers, programmable logic controllers (PLCs), and other automation equipment.
The product complies with RoHS standards and is manufactured in the Czech Republic. This relay series is noted for high contact rating, high switching capability, high sensitivity, and a high breakdown voltage, suitable for high reliability industrial and laboratory settings.
Compact miniature PCB mount design with DIL form factor. High switching capacity with 5A current rating. Gold plated contacts ensure superior conduction quality. Sealed construction for protection and cleaning usability.
Wide operating temperature range enables versatile use cases. Designed for DIN rail mounting with through hole terminals. Low coil power consumption of 300mW for energy efficiency. Suitable for office, industrial electronics, temperature control, and PLC systems.
Manufactured in the Czech Republic with RoHS compliance. Explore our Electronics & Electricals category to find more Power Relays and specialized components for professional industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 5A.
This model operates with a coil voltage of 24V DC.

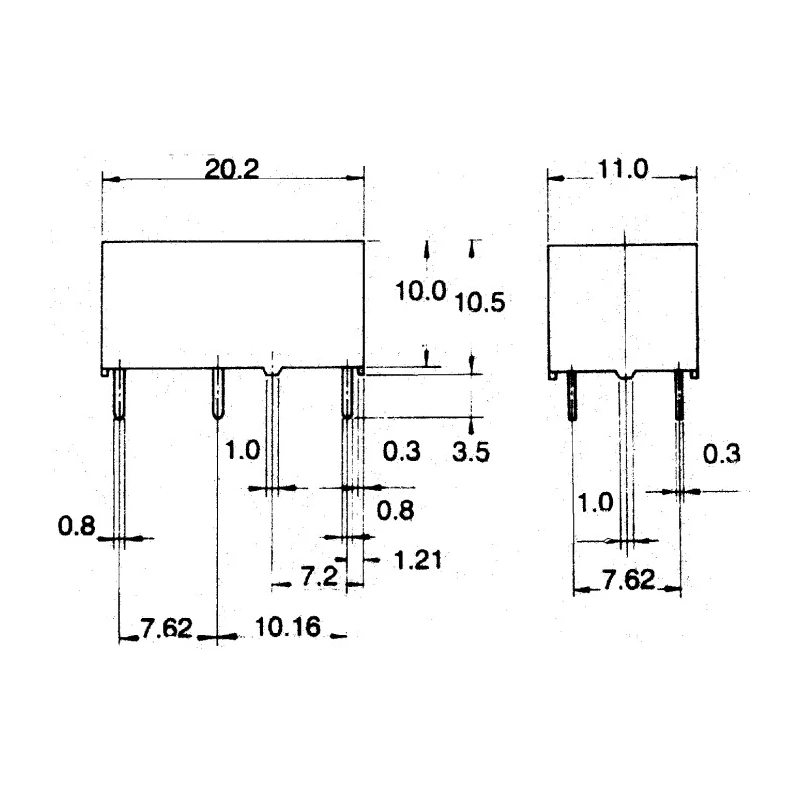

The relay measures 20.2mm in length, 14mm in width, and 10.5mm in height.
It operates effectively within a temperature range of -40°C to 65°C.
This relay features a double pole single throw (DPST) contact configuration.
It is designed for DIN rail mounting, which allows for efficient panel assembly.
This model utilizes through hole terminals for secure PCB mounting and connections.
The coil power consumption is 300 milliwatts.
The contacts are made from gold plated material, ensuring excellent conductivity.
Yes, it complies with RoHS standards.
It is suitable for use in office devices, industrial electronics, temperature controllers, and PLCs.
This relay is manufactured in the Czech Republic.
