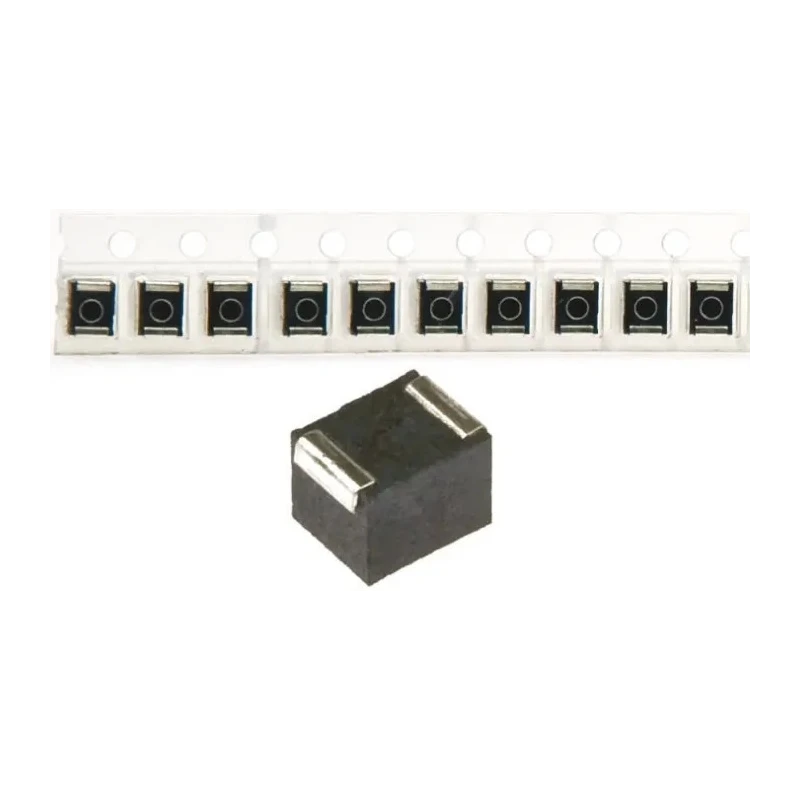

TDK 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 6.8 μH ±5% 180 mA IDC Q:30 NLV32T-6R8J-PF
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TDK |
| Height | 2.2mm |
| Length | 3.2mm |
| Model | NLV32T-6R8J-PF |
| Depth | 2.5mm |
| Series | NLV-PF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 6.8μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 180mA |
| Pin Count | 2 |
| Maximum DC Resistance | 1.8Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 40MHz |
| Minimum Quality Factor | 30 |
| Inductor Construction | Wirewound |
| Applications include | TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, HDDs, etc |
Key Features
- Constructed with a ferrite core for enhanced magnetic properties.

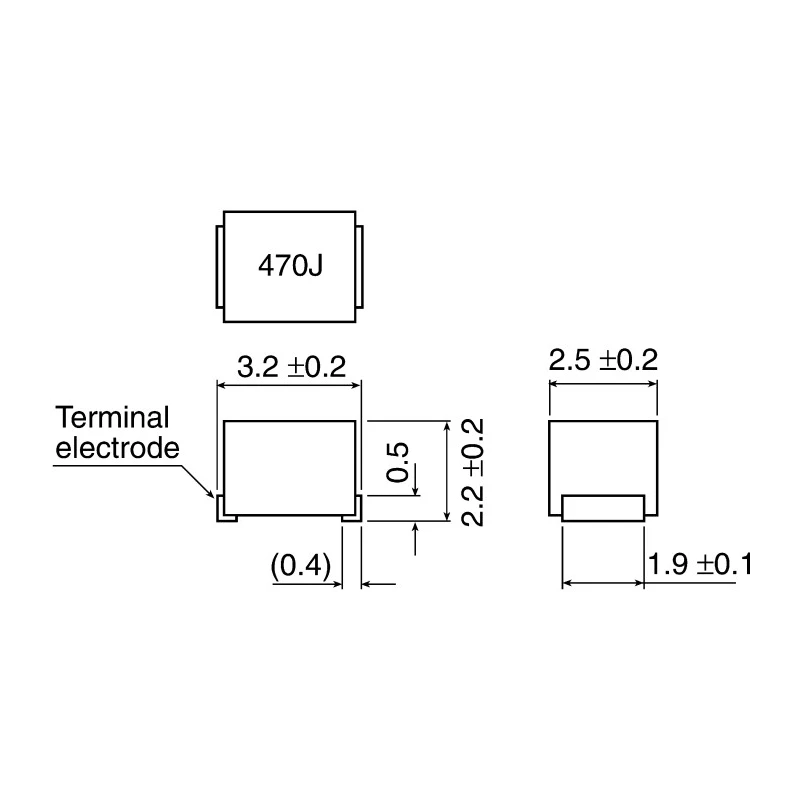

- Compact 1210 package size with dimensions 3.2 mm length x 2.5 mm depth x 2.2 mm height.
- Offers a high quality factor (Q) of 30 ensuring sharp frequency response.
- Maximum DC resistance of 1.8 Ω with molding for durability and heat resistance.
- Suitable operating temperature range from -40°C to +105°C.
- Wirewound construction provides stable inductance and performance.
- Surface mount termination style for easy PCB assembly.
- RoHS compliant meeting environmental and safety standards.
Product Description
TDK NLV32T-6R8J-PF is a premium quality 1210 shielded wirewound surface mount inductor designed with a ferrite core to provide reliable inductance of 6.8 μH ±5% tolerance and capable of handling DC currents up to 180 mA. This component features a high quality factor (Q) of 30, ensuring sharp frequency response essential for sensitive electronic circuits.
Encased in a heat-resistant thermoplastic resin package, it maintains operational stability across a wide temperature range from -40°C to 105°C, suitable for harsh industrial, automotive, and consumer electronics environments. The robust wirewound construction combined with surface mount termination style facilitates dependable soldering and compact footprint on printed circuit boards.
Measuring 3.2 mm in length, 2.5 mm in depth, and 2.2 mm in height, this inductor fits well into space-constrained applications. The 1.8 ohm maximum DC resistance ensures minimal power loss, optimizing circuit efficiency.
The NLV-PF series complies with RoHS standards, affirming its environmentally safe manufacturing process. It is widely used in various industries including consumer electronics such as TVs and digital cameras, telecommunications equipment like xDSL modems, automotive audio systems, electronic control units (ECU), and hard disk drives.
Constructed with ferrite core for superior magnetic performance. Compact dimensions in a 1210 package for surface mount assembly. High quality factor enhancing frequency selectivity in circuits. Wide operating temperature range for diverse industrial uses.
Wirewound technology for stable and precise inductance values. RoHS compliant ensuring regulatory adherence for electronics. Surface mount termination enabling automated PCB assembly. Low DC resistance for efficient electrical performance.
Ideal for consumer electronics, automotive, telecommunications, and industrial applications.
This TDK surface mount inductor combines precision, durability, and environmental compliance making it a high-performance component for modern electronic devices. Browse EnvMart's extensive range of Surface Mount Inductors for more specialized electronic components and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value is 6.8 μH with a tolerance of ±5%.
It can handle a maximum DC current of 180 mA.
The dimensions are 3.2 mm in length, 2.5 mm in depth, and 2.2 mm in height.
The maximum operating temperature is 105°C.
It is constructed with a ferrite core, which enhances its magnetic properties.
The quality factor (Q) is a minimum of 30, ensuring sharp frequency response.
The termination style is surface mount, allowing for easy PCB assembly.
The maximum DC resistance is 1.8 Ω.
It is suitable for various applications including TVs, digital cameras, xDSL modems, and automotive audio systems.
The minimum operating temperature is -40°C.
The maximum self-resonant frequency is 40 MHz.
Yes, it complies with RoHS standards, ensuring environmental safety.
