| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PDTA114YQCZ |
| Mount Type | Surface |
| Series | PDTA114Y |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1412D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -50V |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | -10V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | -100mA |
| Transistor Configuration | PNP |

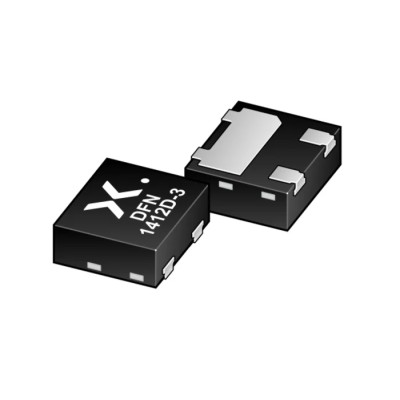

Nexperia PDTA114YQCZ resistor-equipped transistor is a PNP transistor designed for efficient circuit integration in semiconductor applications. It offers a maximum DC collector current of 100 mA and a maximum collector-emitter voltage of 50 V. Packaged in an ultra small DFN1412D-3 plastic case with side-wettable flanks, it supports surface mount technology with a low package height of 0.5 mm suitable for automated optical inspection (AOI).
This transistor features built-in resistors which simplify circuit design and reduce the total component count, resulting in cost savings and reduced pick and place operations during assembly. Its thermal performance supports operation in temperature ranges from -55°C minimum to 150°C maximum, making it suitable for industrial, automotive, and electronic power control applications.
It complies with RoHS directives and meets the automotive standard AEC-Q101, endorsing its reliability in automotive semiconductor systems. The device is particularly useful for controlling IC inputs and switching loads in digital electronic circuits. As a cost-effective alternative to the common BC857 transistor series, it supports modern manufacturing practices requiring compact and efficient components.
Maximum DC collector current of 100 mA. Maximum collector-emitter voltage of 50 V. Built-in resistors reduce component count and design complexity. Low profile 0.5 mm height DFN1412D-3 surface mount package. Operating temperature range from -55°C to 150°C.
Complies with RoHS and automotive standard AEC-Q101. Ideal for digital applications requiring reliable switching. Supports automatic optical inspection in assembly lines. Cost saving alternative to BC857 series.
This transistor is an excellent choice for industrial, automotive, and electronic semiconductor applications where space-saving and integration with automatic assembly processes are critical. Available in a 3-pin configuration, it is widely usable in bipolar transistor circuits requiring PNP functionality with integrated resistors.
Explore more semiconductor devices and discrete transistors in the Nexperia PDTA114Y series at EnvMart for advanced circuit design needs.
