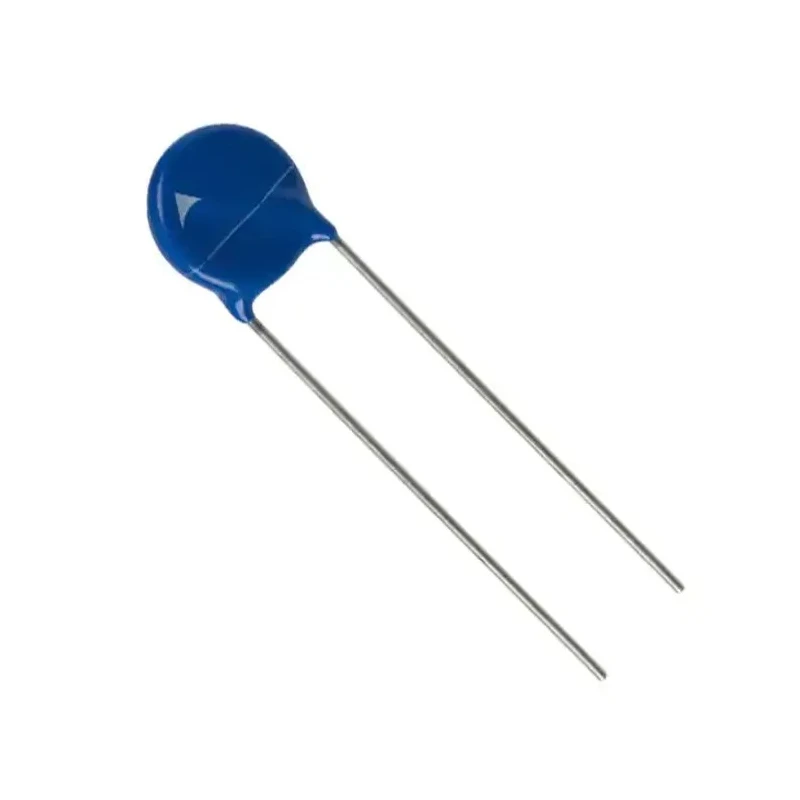

TDK StandardD Metal Oxide Varistor 110 pF 50 A Clamping Voltage 2970 V Varistor Voltage 1800 V B72214S0102K101

TDK B72214S0102K101 Metal Oxide Varistor is a StandardD series component designed for effective surge protection in electronic and electrical circuits operating up to 1100 V AC. It features a capacitance of 110 pF and a varistor voltage rating of 1800 V, with a clamping voltage of 2970 V to limit voltage spikes effectively. This varistor supports clamping currents up to 50 A and maximum surge currents of 4.5 kA, making it highly suitable for industrial, commercial, and laboratory surge protection applications.

The device is housed in a through-hole package with dimensions of 20.5 mm length, 15.5 mm diameter, and 11 mm thickness. It is coated with flame-retardant epoxy resin complying with UL 94 V-0 safety standards, and its terminals are made from tinned wire for reliable electrical connections. It operates in a wide temperature range from -40°C to 105°C without performance derating, ensuring safety and durability in demanding environments.

This varistor is compliant with international safety standards including CSA, UL, VDE, and IEC, which underlines its quality and readiness for stringent electrical protection scenarios. Its tape and reel packaging facilitate automated manufacturing and assembly processes. Typical use cases for the TDK B72214S0102K101 include surge protection in power supplies, industrial electronics, HVAC systems, and general electrical equipment susceptible to voltage transients.

Capacitance rating of 110 pF ensures effective transient suppression. Can handle clamping currents up to 50 A for strong surge resistance. Clamping voltage of 2970 V and varistor voltage of 1800 V suitable for 1100 V AC systems.

Through hole mounting with a diameter of 15.5 mm and thickness of 11 mm. Operates reliably between -40°C to 105°C without derating. Epoxy resin flame-retardant coating meets UL 94 V-0 standards for safety. Maximum surge current capacity of 4.5 kA with a maximum DC voltage of 1465 V.

StandardD series with tape & reel packaging ideal for automated assembly. Compliant with CSA, UL, VDE, and IEC standards ensuring industrial reliability. Explore more high-quality Varistors and surge protection components in the Electronics Components category on EnvMart.
