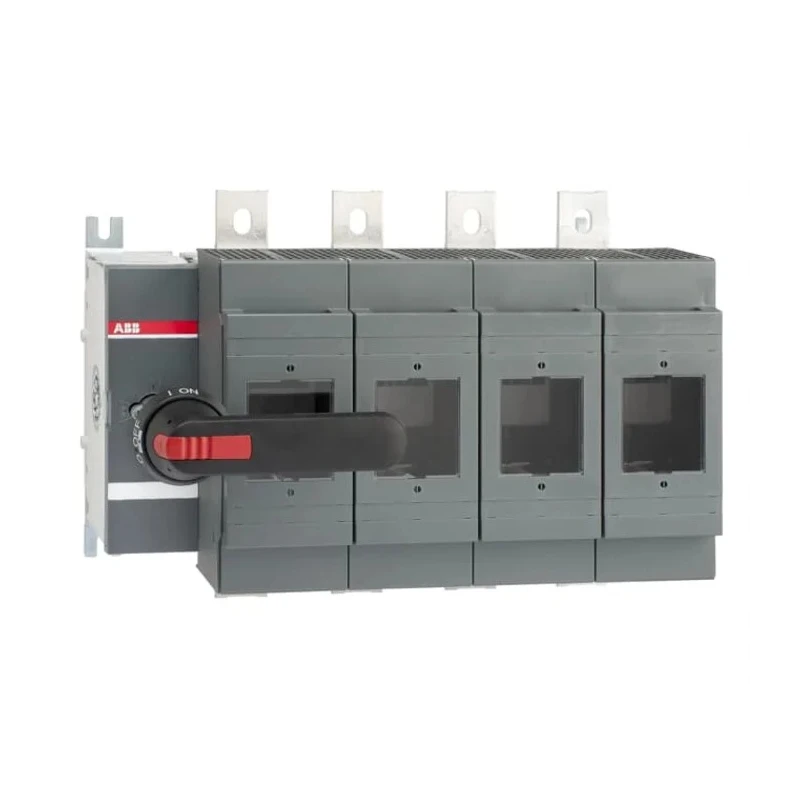

ABB Fuse Switch Disconnector 4-Pole 630 A 630kW Base Mounted Enclosed OS Series 1SCA022825R4610 OS630D04FP

Free Delivery in India | Lowest Global Shipping Charges

ABB Fuse Switch Disconnector 4-Pole 630 A 630kW Base Mounted Enclosed OS Series 1SCA022825R4610 OS630D04FP



Category Electrical Switches & Disconnectors Brand ABB Condition New

Specifications

Country of Origin	Finland
Brand	ABB
Model	1SCA022825R4610 OS630D04FP
Mount Type	Base
Series	OS
Switching Current	630A
Terminal type	Lug Terminal
Number of Poles	4
Standards/Approvals	REACH, DNV GL, CE, CCC, IEC 60947-3, EAC, RoHS
Switching Voltage	690V ac
Switching Power	630kW
Mechanical Fuse Size	3
Enclosed/Not Enclosed	Enclosed
Fuse Current	630A

Key Features

The fuse switch disconnector features a pistol handle with shaft included for front operation.
It uses a DIN fuse system and has lug type terminals with a width of 39 mm.
The device is rated for switching voltage of 690V AC and switching current of 630 A.
The fourth pole is a switched fusible pole for safety and operational efficiency.
Mechanical fuse size is 3, compatible with the OS series switches.
The product complies with standards including REACH, DNV GL, CE, CCC, IEC 60947-3, EAC, and RoHS.
It has pollution degree 3 and does not include auxiliary contacts.
Made in Finland, this switch disconnector is suitable for industrial and commercial electrical distribution systems.

Product Description

ABB 1SCA022825R4610 OS630D04FP fuse switch disconnector is a high-quality electrical switching device designed for secure and efficient isolation of electrical circuits. This 4-pole disconnector is enclosed and base mounted, featuring a robust pistol handle and shaft for easy front operation. It is designed to operate with a DIN fuse system, providing reliable protection and isolation in industrial, commercial, and electrical distribution applications.

The fuse switch disconnector supports a switching voltage of 690V AC and a switching current of 630 A, with a switching power of 630 kW. The lug type terminals have a width of 39 mm, ensuring solid connection and durability. The fourth pole is a switched fusible pole, enhancing user safety and operational flexibility. The mechanical fuse size 3 is standard within the OS series by ABB, guaranteeing compatibility and performance.

Constructed to meet rigorous standards such as REACH, DNV GL, CE, CCC, IEC 60947-3, EAC, and RoHS, this device complies with international quality and safety norms. Its pollution degree 3 rating further ensures reliable performance in industrial environments exposed to dust and moisture.

This device is ideal for use in electrical distribution panels, automation systems, and industrial electrical installations requiring dependable circuit breaking and disconnection functionalities. It does not feature auxiliary contacts but provides essential primary switching and fuse isolation capabilities.

The fuse switch disconnector operates via a front-operated pistol handle with shaft included. Lug type terminals provide a 39 mm width contact area for secure electrical connection. Rated for 630 A switching current and 690V AC switching voltage with 630 kW power handling.

Suitable for 4 poles with a switched fusible fourth pole for enhanced protection. Mechanical fuse size 3 fits the DIN fuse system of the OS series. Certified to multiple stringent standards ensuring safety and compliance.

Pollution degree 3 rating enables usage in rugged industrial settings.

As a product made in Finland, it reflects ABB's global standards of quality and reliability. For detailed technical specifications, compatibility, and application guidance, explore EnvMart's extensive electrical components catalog.
