ABB 6-Pole Switch Disconnector IP65 400A 10W Screw Clamp Terminal OT Series

Free Delivery in India | Lowest Global Shipping Charges

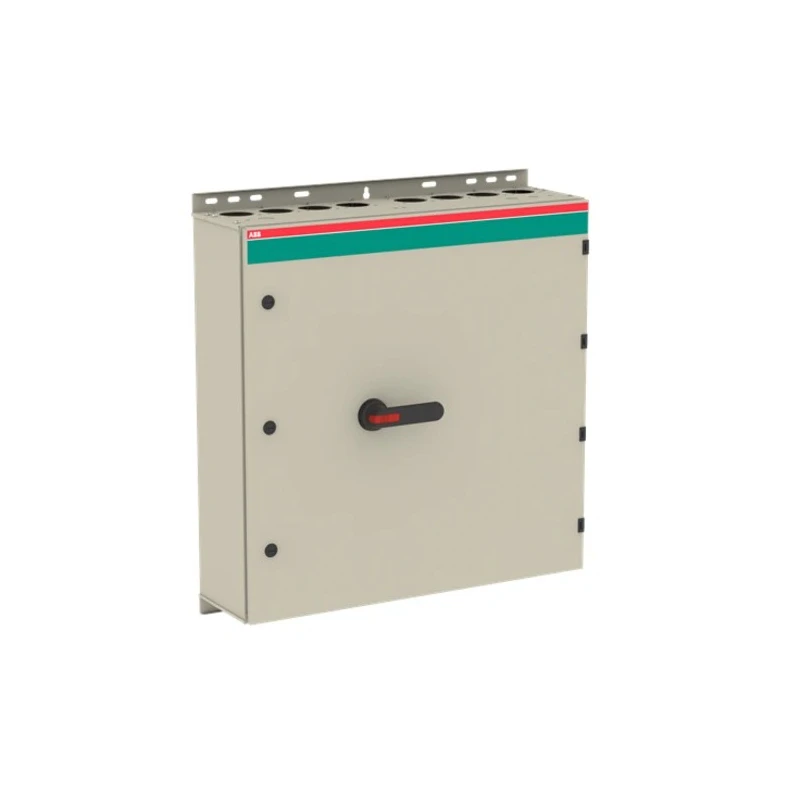

ABB 6-Pole Switch Disconnector IP65 400A 10W Screw Clamp Terminal OT Series



Category Electrical Switches & Disconnectors Brand ABB Condition New

Specifications

Country of Origin	Finland
Brand	ABB
Length	800mm
Model	IP65
Depth	230mm
IP Rating	IP65
Width	800mm
Series	OT
Minimum Operating Temperature	0°C
Switching Current	400A
Terminal type	Screw Clamp Terminal
Handle Colour	Black
Number of Poles	6
Standards/Approvals	IEC 60947-1-3
Switching AC Voltage	1000V ac
Switching Power	10W

Key Features

The switch has 6 poles for comprehensive circuit isolation.
It features a robust galvanised steel enclosure with polyester coating suitable for outdoor use.
IP65 rated enclosure ensures protection against dust and water ingress.
Equipped with screw clamp terminals for secure wiring connections.
Padlock compatibility allows secure locking with up to 3 padlocks.
The handle color is black for clear identification.
It supports auxiliary contacts, with a maximum of 4 NO and 2 NC contacts.
Designed for switching AC voltages up to 1000V and current up to 400A.

Product Description

ABB 1SCA022338R8200 6-Pole Switch Disconnector is engineered to provide safe and efficient circuit isolation with a 400A switching current and 10W switching power, housed in a durable galvanised steel enclosure with a polyester coating. This ensures suitability for outdoor industrial environments with excellent resistance to UV light and ingress protection rated at IP65.

The enclosure design includes a gas pressure relief function to protect users in case of an internal arc, and the door is earthed via the hinges enhancing safety. It supports various cable entry types including blank, ring-flange, or C-flange (FL21), with flexible cable configurations allowing top/bottom or bottom/bottom setups.

The switch handle is padlockable for up to three padlocks, providing added security, and incorporates an interlocked cover with bypass functions for thermography. Auxiliary contact options are available with a maximum of 4 normally open (NO) and 2 normally closed (NC) contacts to meet auxiliary control requirements.

Certified according to IEC 60947-1-3 standards, this switch disconnector supports an operational AC voltage of up to 1000V and can handle switching currents of 400A, making it suitable for industrial, commercial, and automation applications. The switch features screw clamp terminals for reliable electrical connections and a black handle for clear operational status.

The enclosure material provides UV resistance and durability for outdoor installations. The IP65 rating ensures protection against dust and water, ideal for harsh conditions. Padlock compatibility enhances user safety by preventing unauthorized operation.

Suitable for use in electrical panels requiring high switching capacity and safety compliance. Designed to accommodate both single and parallel cable configurations. Minimum operating temperature of 0°C supports standard industrial ambient conditions.

Dimensions facilitate installation planning with an 800mm width, 800mm length, and 230mm depth. Suitable for use in electrical, automation, manufacturing, and industrial control systems.

This ABB switch disconnector is made in Finland and exemplifies high standards of engineering for isolator switch applications. Explore more in the Electrical Switches & Disconnectors category at EnvMart for related products and compatible components.
