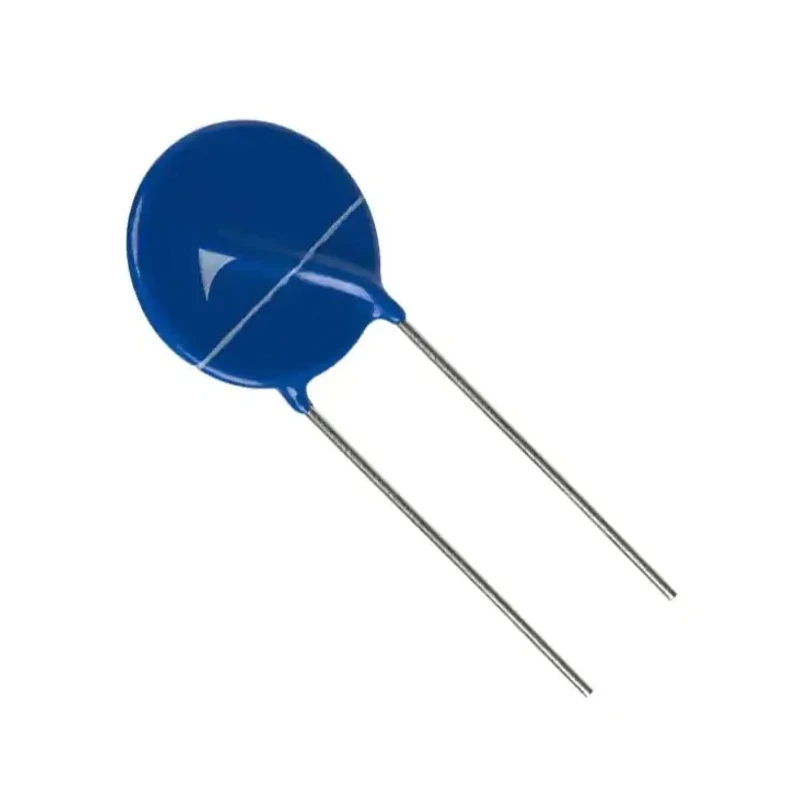

TDK AdvancedD Metal Oxide Varistor 110 pF Capacitance 10 A Clamping Voltage 710 V Model B72207S2271K101
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 9mm |
| Brand | TDK |
| THICKNESS | 4.6mm |
| Length | 11mm |
| Model | B72207S2271K101 |
| Packaging | Tape & Reel |
| Mount Type | Through Hole |
| Series | AdvancedD |
| Maximum Operating Temperature | 105°C |
| Capacitance | 110pF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 350V dc |
| Standards/Approvals | IEC, CSA, UL, VDE |
| Pin Count | 2 |
| Maximum AC Voltage | 275V ac |
| Clamping Voltage VC | 710V |
| Clamping Current | 10A |
| Maximum Surge Current | 1.75kA |
| Varistor Voltage | 430 V |
Key Features
- High clamping voltage of 710 V ensures efficient voltage suppression.
- Varistor voltage rated at 430 V for protective functionality.
- Capacitance value is precisely 110 pF for stable performance.
- Through-hole mount type offers easy PCB integration.
- Operates reliably with a maximum AC voltage of 275 V and DC voltage of 350 V.
- Designed for high surge currents up to 1.75 kA, safeguarding components.
- Constructed with a 9 mm diameter and 11 mm length for compact installation.
- Operating temperature range from -40°C to 105°C for diverse environments.
Product Description
TDK B72207S2271K101 AdvancedD Metal Oxide Varistor offers robust surge protection for electronic circuits. Its 110 pF capacitance combined with a clamping current of 10 A enables reliable voltage suppression in diverse industrial and commercial electronics applications.
The varistor voltage is rated at 430 V with a clamping voltage of 710 V, effectively protecting against transient voltage spikes. The device supports a maximum AC voltage of 275 V and DC voltage of 350 V, suitable for various power and signal lines.
Designed with through-hole mounting, the varistor has a compact 9 mm diameter and 11 mm length, making it ideal for space-constrained PCBs. It handles surge currents up to 1.75 kA, ensuring superior protection against high-energy transient surges common in industrial environments.
The operating temperature range from -40°C to 105°C allows usage in harsh environmental conditions, while the flame-retardant epoxy resin coating conforms to UL 94 V-0 standards, enhancing safety and durability. The terminals are made of tinned wire for reliable electrical contacts.
High clamping voltage of 710 V for surge suppression. Capacitance of 110 pF for stable performance. Through-hole mount type for easy PCB integration. Supports surge current up to 1.75 kA. Compliance with IEC, CSA, UL, and VDE standards.
Flame-retardant epoxy resin coating to UL 94 V-0. Operating temperature from -40°C to 105°C. Compact size with 9 mm diameter and 11 mm length.
This Varistor is suitable for industrial electronics, power supply protection, surge protection components in electronic circuits, and other applications requiring high surge current tolerance and reliable voltage clamping.
Explore more products in Electronics Components at EnvMart to find matching surge protection devices and complementary components for your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping voltage of this model is 710 V, providing effective protection against transient voltage spikes.
This varistor has a capacitance value of 110 pF, ensuring stable performance in electronic circuits.
It is designed to handle surge currents up to 1.75 kA, safeguarding components from high-energy transient surges.
The varistor has a diameter of 9 mm and a length of 11 mm, making it suitable for compact installations.
The maximum operating temperature for this varistor is 105°C, allowing its use in diverse environments.
This model features a through-hole mount type, facilitating easy integration into PCBs.
The varistor voltage is rated at 430 V, which is essential for its protective functionality.
It supports a maximum DC voltage of 350 V, ensuring compatibility with various power applications.
This model complies with IEC, CSA, UL, and VDE standards, enhancing its reliability and safety.
The minimum operating temperature is -40°C, allowing it to function in harsh conditions.
This varistor is packaged in tape & reel, which is suitable for automated assembly processes.
This model has 2 pins, which are necessary for its installation and connection in electronic circuits.
