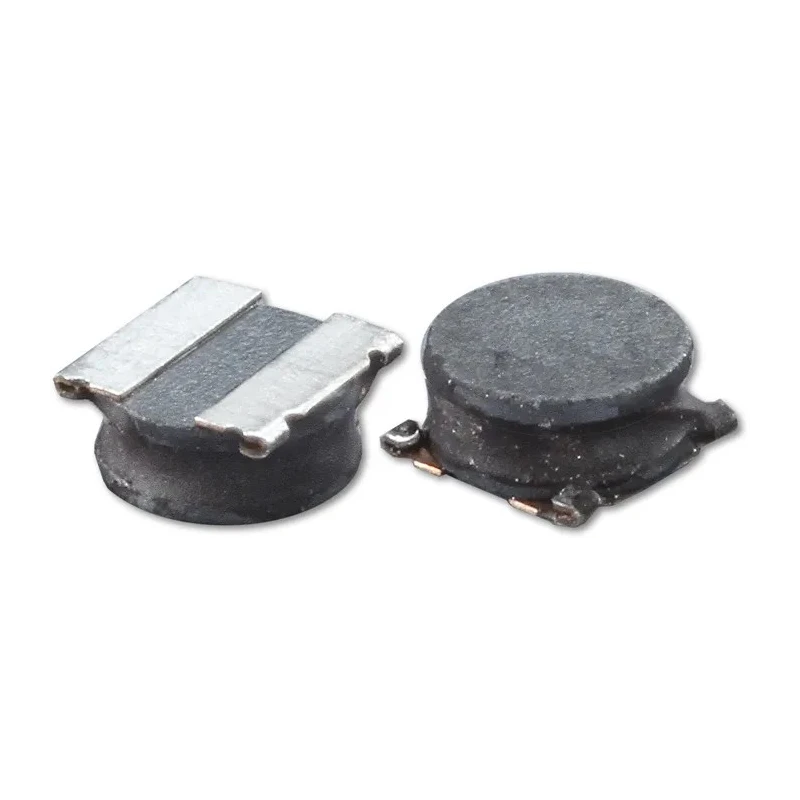

Abracon Shielded Surface Mount Inductor with Ferrite Core 10 μH Flat Wire Winding ±20% 770 mA ASPI-0315FS-100M-T2

Abracon ASPI-0315FS-100M-T2 is a shielded surface mount inductor designed with a ferrite core and 10 μH inductance. Featuring a flat wire winding construction, it offers ±20% inductance tolerance and supports a maximum DC current of 770 mA. Its compact size with dimensions 3mm length, 2.5mm diameter, and 1.5mm height and depth make it highly suitable for modern electronic circuit boards.

The ferrite core provides excellent magnetic properties and is magnetically shielded using magnetic powder molding to prevent electromagnetic interference in sensitive applications. The inductor also complies with RoHS standards, ensuring it meets environmental and safety requirements.

With a DC resistance of only 325 mΩ, it offers efficient performance with low power loss. It operates reliably across a wide temperature range from -40°C to 125°C, making it suitable for industrial, automotive (non-certified), and consumer electronics including mobile phones, digital cameras, MP3 players, and other portable communication devices.

This package contains the ASPI-0315FS-100M-T2 surface mount inductor, delivered in tape & reel packaging, facilitating automated SMT assembly. The termination style is surface mount with a pin count of 4, ensuring stable and easy PCB integration.

Compact surface mount design with dimensions of 3mm length, 2.5mm diameter, and 1.5mm height and depth. Constructed with a ferrite core for efficient magnetic performance and shielding. Maximum DC resistance of 325 mΩ ensures low power loss during operation.

Industry-compliant with RoHS standards and suitable for various electronics applications. Protection and reliability enhanced by magnetic powder molding and flat wire winding construction. Wide operating temperature range from -40°C to 125°C for demanding environments.

Supplied in tape and reel packaging suitable for automated assembly processes. Pin count of 4 allows for stable electrical connections on PCBs.

This Abracon surface mount inductor is ideal for applications in industrial electronics, telecommunications, and portable devices where compact size and shielding are critical. Discover more products like this in EnvMart's Surface Mount Inductors category for efficient electronic component sourcing.
