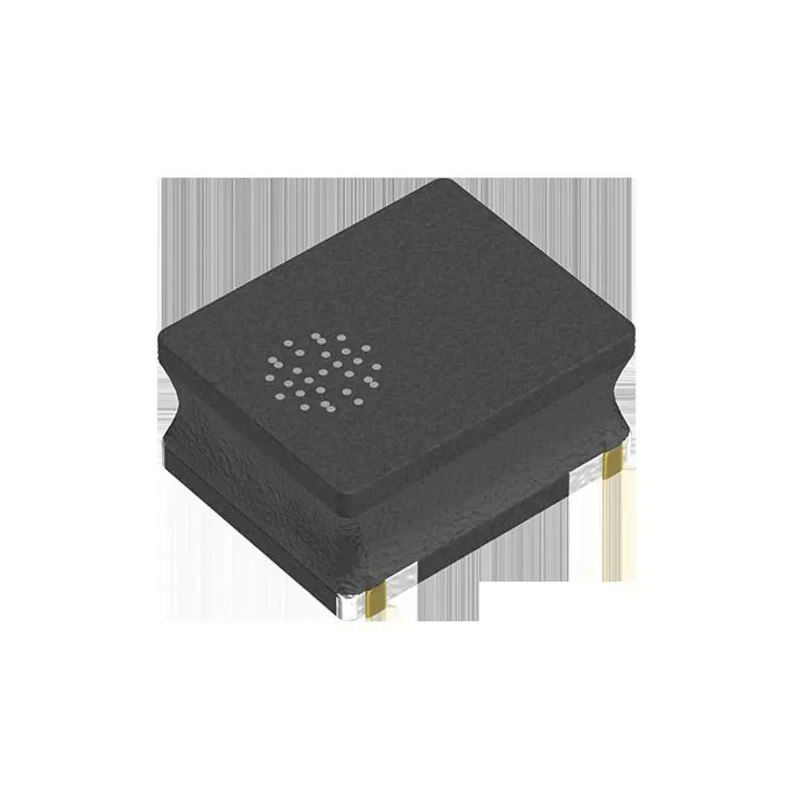

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 2.2 μH ±20% 1.87 A DC Current 252012 VLS252012CX-2R2M-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 1.2mm |
| Length | 2.5mm |
| Model | VLS252012CX-2R2M-1 |
| Depth | 2mm |
| Series | VLS-CX-1 |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 2.2μH |
| Standards/Approvals | Lead Free, SVHC-free, RoHS, REACH, Halogen Free |
| Package/Case | 252012 |
| Maximum DC Current | 1.87A |
| Maximum DC Resistance | 96mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| Application guides | Smart phones/tablets |
Key Features
- The inductor features a 252012 package with surface mount termination.
- Constructed with a ferrite core and wirewound design for enhanced magnetic shielding.
- Operates reliably between -40°C and 105°C.
- Maximum DC resistance is 96 mΩ ensuring efficient current performance.
- Lead-free and compliant with SVHC, RoHS, REACH, and halogen-free standards.
- Compatible with high-density mounting applications.
- Optimized ferrite core for larger current handling and lower resistance.
- Ideal for use in smartphones, tablets, HDDs, SSDs, DVCs, DSCs, mobile display panels, portable gaming devices, and compact power supply modules.
Product Description
TDK VLS252012CX-2R2M-1 is a shielded wirewound surface mount inductor equipped with a ferrite core delivering an inductance of 2.2 μH with ±20% tolerance. This component supports a maximum DC current of 1.87 A, making it suitable for power circuits requiring compact and reliable magnetic shielding.
The inductor is styled in a 252012 package size with surface mount termination style, measuring 2.5 mm in length, 1.2 mm in height, and 2 mm in depth. Its ferrite core construction enhances magnetic shielding effectiveness and allows integration into high-density circuit layouts.
Operating temperature ranges from -40°C to 105°C, ensuring stable performance under varied environmental conditions. The device exhibits a maximum DC resistance of 96 mΩ, contributing to efficient power handling and thermal stability.
This wirewound inductor complies with multiple environmental and safety standards including lead-free fabrication, SVHC-free, RoHS, REACH, and halogen-free certifications. It is optimized for larger currents and reduced resistance through careful design of the ferrite core.
Applications for the VLS252012CX-2R2M-1 include smartphones, tablet terminals, hard disk drives (HDDs), solid-state drives (SSDs), digital video cameras (DVCs), digital still cameras (DSCs), mobile display panels, portable game devices, and compact power supply modules requiring effective power inductance components.
The inductor offers a shielded wirewound design for reduced electromagnetic interference. It is designed for surface mount technology (SMT) assembly compatibility. High current capacity supports power-intensive portable electronics.
Durable performance over extensive temperature ranges. Compliance with global environmental standards ensures sustainability. Compact 252012 package enables space-saving PCB layouts. Ferrite core material optimizes magnetic characteristics and power handling.
This inductor is an excellent choice for advanced electronic devices in industrial, consumer electronics, and communication sectors. Explore more high-quality Inductors and passive components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 2.2 μH with a tolerance of ±20%.
It supports a maximum DC current of 1.87 A, making it suitable for power circuits.
This inductor has dimensions of 2.5 mm in length, 1.2 mm in height, and 2 mm in depth.
It operates reliably within a temperature range of -40°C to 105°C.
The TDK VLS252012CX-2R2M-1 features a surface mount termination style.
The maximum DC resistance is 96 mΩ, contributing to efficient current performance.
It is constructed with a ferrite core and features a wirewound design for enhanced magnetic shielding.
This inductor is suitable for applications in smartphones, tablets, HDDs, SSDs, and portable gaming devices.
It complies with multiple environmental and safety standards including RoHS, REACH, and is lead-free.
The optimized ferrite core enhances magnetic characteristics, allowing for larger current handling and lower resistance.
Yes, it is designed to be compatible with high-density mounting applications due to its compact package size.
This model belongs to the VLS-CX-1 series of inductors.
