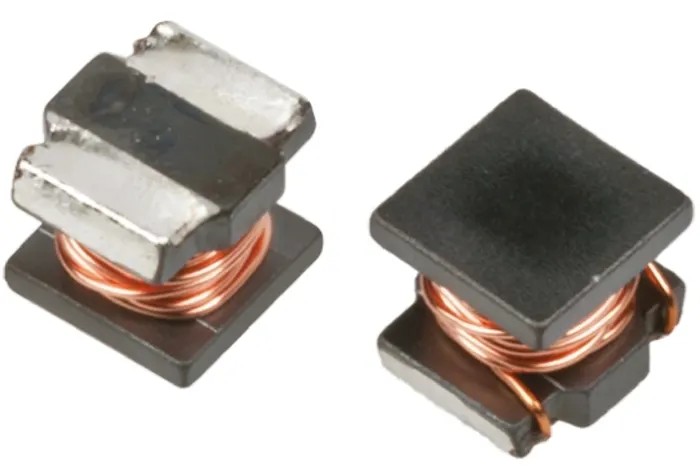

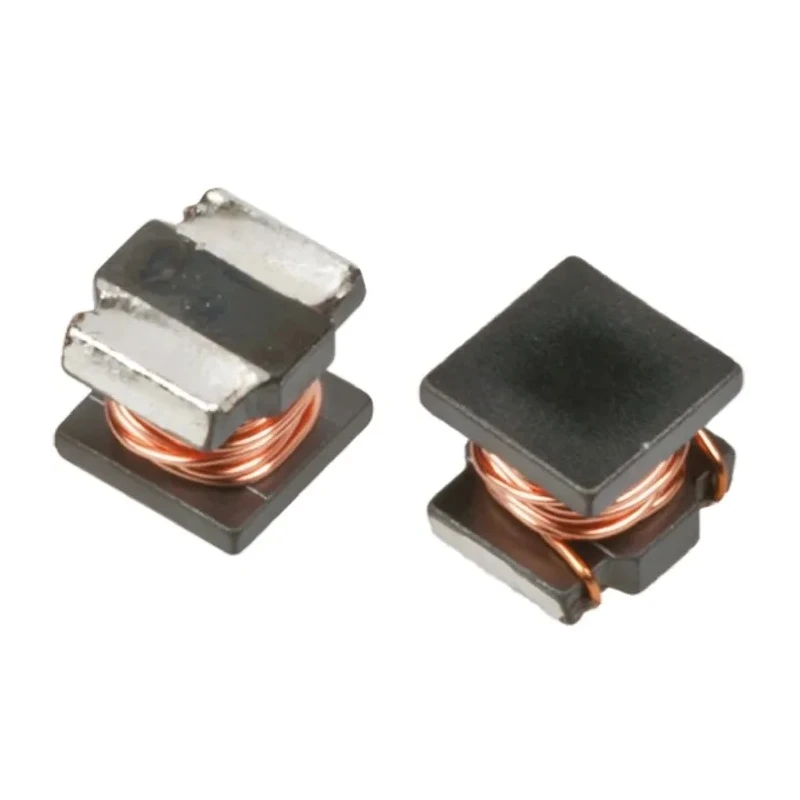

Murata Unshielded Wirewound Surface Mount Inductor 10 μH ±20 % 1.7 A DC Current Ferrite Core 2220 Package LQH55DN100M03L

Murata LQH55DN100M03L is an unshielded wirewound surface mount inductor designed for choke applications, utilizing a high performance ferrite core and thick wirewound technology. This 2220 package inductor offers an inductance of 10 μH with a tolerance of ±20 % and supports a maximum DC current of 1.7 A, suitable for demanding applications such as DC-DC converters and power supply circuits.

Constructed with a robust ferrite core, it achieves low direct current resistance of 93 mΩ, minimizing power losses and improving energy efficiency. The inductor supports operation over a wide temperature range from -40°C to 80°C, ensuring stable performance in diverse environments.

Its compact surface mount design (5.7 mm length, 4.7 mm height, and 5 mm depth) makes it ideal for high-density PCB layouts. The solder termination style provides secure and reliable mounting to printed circuit boards.

With a maximum self resonant frequency of 20 MHz, Murata LQH55DN100M03L supports high frequency operations in industrial, electronic, and communication equipment.

Compliant with RoHS standards, this inductor meets environmental regulations for lead and hazardous substances. The product is made in Japan, assuring high manufacturing quality and reliability.

Murata wirewound inductors of the LQH55D series are well-suited for many critical electronic uses requiring efficient choke inductors, such as in industrial electronics, telecommunications, and power management systems.

Constructed using a ferrite core for enhanced magnetic properties. Designed as an unshielded wirewound inductor suitable for surface mounting. Packaged in a 2220 case size with embossed tape packaging. Operates effectively within a temperature range of -40°C to 80°C.

Maximum DC resistance is 93 milliohms ensuring low power loss. Inductor exhibits a maximum self-resonant frequency of 20 MHz. Features a solder termination style for reliable PCB attachment. Complies with RoHS standards, making it environmentally compliant.

Manufactured in Japan with high-quality wirewound construction technology. Explore more surface mount Inductors and Murata products on EnvMart for advanced electronic component solutions.
