| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | 744786233A |
| Depth | 0.8mm |
| Packaging | Tape & Reel |
| Series | WE-MK |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ceramic |
| Inductance | 330nH |
| Package/Case | 0603 |
| Maximum DC Current | 150mA |
| Pin Count | 2 |
| Maximum DC Resistance | 2.8Ω |
| Inductance Tolerance | ±0.05 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 350MHz |
| Minimum Quality Factor | 8 |
| Inductor Construction | Multilayer |

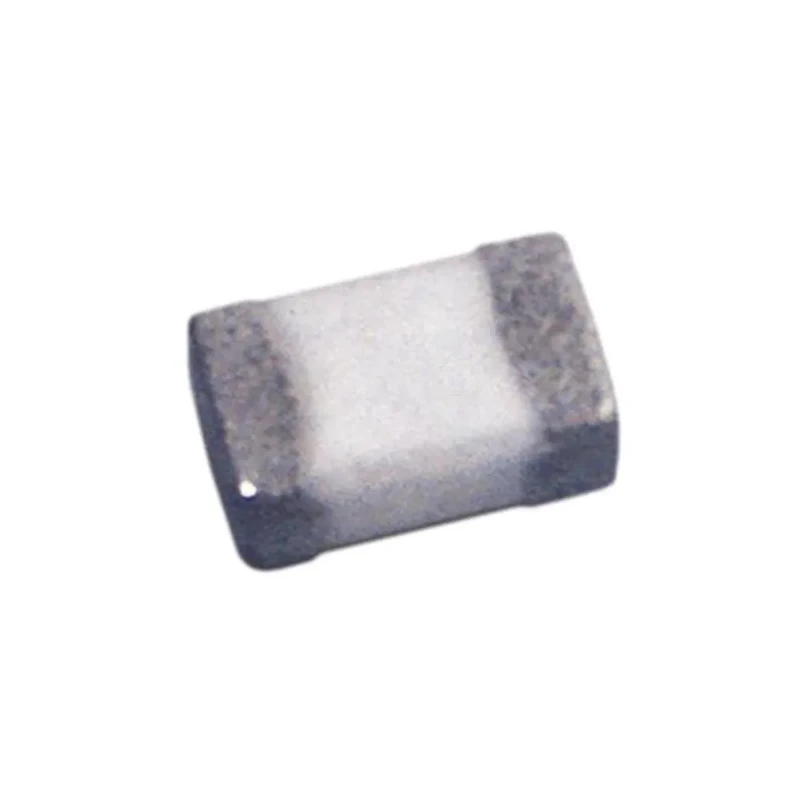

Wurth Elektronik 744786233A WE-MK series 0603 shielded multilayer surface mount inductor featuring a ceramic core and precision inductance of 330 nH ±0.05 %. Designed for high frequency electronic circuits including tuners, transponders, and HF amplifiers, this component delivers stable inductance over a wide temperature range from -55°C to 125°C, making it suitable for demanding industrial and communication applications.
The multilayer construction and shielding minimize electromagnetic interference and improve circuit performance. With a maximum DC current rating of 150 mA and a low DC resistance of 2.8 Ω, it offers efficient and reliable operation. The inductor's self-resonant frequency of 350 MHz supports applications requiring high frequency performance.
This 0603 package size component is designed for surface mount technology with a pin count of 2, enabling compact PCB layouts and automated assembly via tape and reel packaging. The ceramic core improves magnetic properties and thermal stability, making it ideal for use in pagers, oscillators, laptops, PCMCIA cards, Bluetooth devices, wireless LAN systems, and various filter circuits.
Compact 0603 package suited for modern surface mount assembly. Shielded multilayer design reduces electromagnetic interference. Ceramic core for stable and reliable inductance performance. Maximum DC current rating of 150 mA.
High self-resonant frequency of 350 MHz for high frequency circuits. Wide operating temperature range from -55°C to 125°C. Low DC resistance of 2.8 Ω minimizes signal loss. Packaging by tape and reel facilitates automated manufacturing.
Pin count of 2 for easy PCB integration. Suitable for industrial, communication, and consumer electronic applications.
Wurth Elektronik inductors are widely used in industrial, laboratory, construction, HVAC, manufacturing, and commercial electronic systems. Their precise inductance and robust construction ensure reliable filtering and tuning performance, especially in high frequency and RF circuits.
Explore more high-performance Inductors and surface mount components at EnvMart to meet diverse electronic design requirements.
