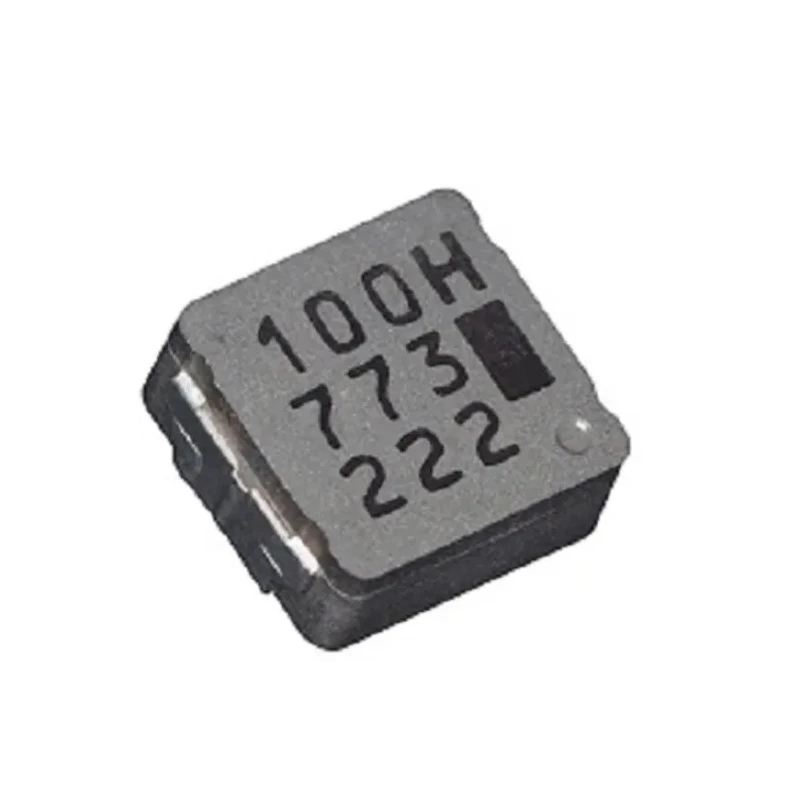

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core, 10 μH ±20 % 3 A Idc ETQP3M

Panasonic ETQP3M is a shielded wirewound surface mount inductor that employs a metal composite core, offering excellent inductance stability and high vibration resistance. With a nominal inductance of 10 μH and a tolerance of ±20%, this component supports a maximum DC current of 3 amperes, making it ideal for various high-temperature and high-current applications.

This inductor features a surface mount package designed for automated insertion into printed circuit boards, with compact dimensions of 6.5 mm length, 3 mm height, and 6 mm depth. Its construction with ferrous alloy magnetic material ensures low audible noise and reduced electromagnetic interference, courtesy of its shielded design.

Certified to the automotive standard AEC-Q200, it guarantees reliability in demanding automotive and industrial environments operating at temperatures up to 150°C.

The device comes with tape and reel packaging, facilitating efficient manufacturing processes. Its low maximum DC resistance of 74.8 mΩ ensures minimal power loss, and the two-pin layout supports standard surface mount termination styles for easy integration.

Typical applications include noise filtering in drive circuitry requiring high temperature operation and peak current handling capabilities, industrial electronics, automotive electronics, and other commercial electronic equipment. Its robust construction and metal composite core enhance durability while ensuring consistent electrical performance.

Surface mount package suitable for automated PCB assembly. High temperature operation up to 150°C including self heat. AEC-Q200 automotive standard compliance for reliability. Shielded construction for noise reduction in sensitive circuits.

Compact dimensions: 6.5 mm length, 3 mm height, 6 mm depth. Low DC resistance of 74.8 mΩ for improved efficiency. Two-pin surface mount termination style. Metal composite core for stability and durability. Tape and reel packaging for production efficiency.

Designed for high bias current and temperature stability.
