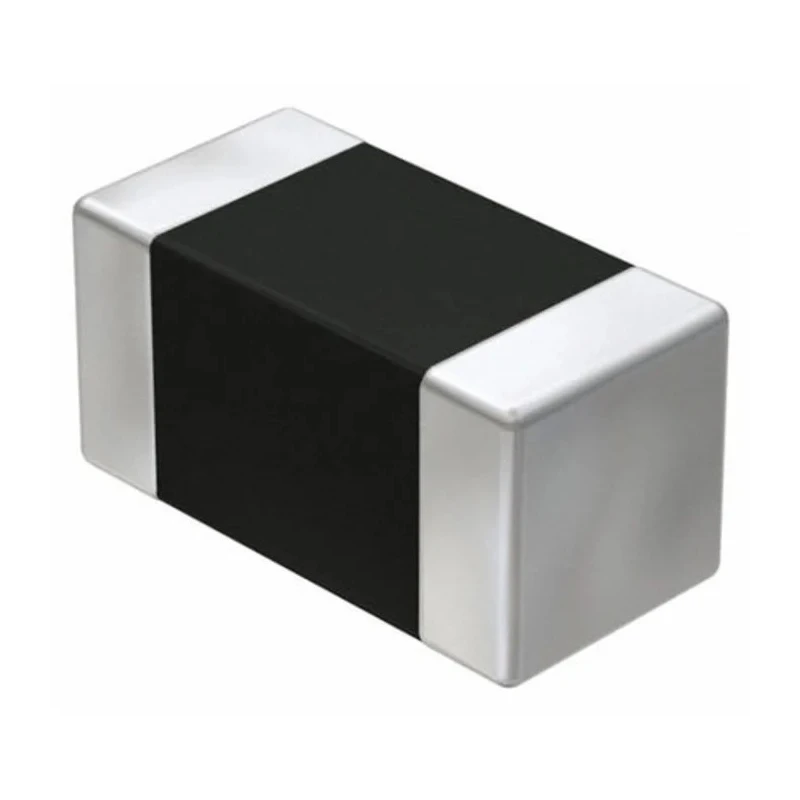

Wurth Elektronik WE-CBF 0805 Shielded Multilayer Surface Mount Inductor with Ferrite Core 200mA IDC 742792093

Wurth Elektronik 742792093 WE-CBF Series shielded multilayer surface mount inductor offers a high-speed multilayer ferrite SMD construction, optimized for electronic circuit board applications requiring compact size and high current capacity.

The product features a ferrite core within a molded 0805 package case measuring 2mm in length, 0.9mm in height, and 1.2mm in depth. It delivers a maximum DC current of 200mA with a low maximum DC resistance of 600mΩ, ensuring efficient power handling with minimal losses.

This inductor incorporates shielding for excellent electromagnetic interference (EMI) suppression, suitable for environments sensitive to noise. The Ni-Sn termination style guarantees durability and reliability during reflow soldering processes.

Operating within a temperature range of -55°C to 125°C, the WE-CBF components comply with stringent industrial standards including REACH and RoHS, making them appropriate for automotive and general electronics applications.

Recommended for use in high-speed data communication interfaces such as USB 2.0, IEEE 1394, Low Voltage Differential Signaling (LVDS), and in wide band control signals including RS232 and RS422, this inductor also supports current supply roles in DC/DC converters.

Constructed with multilayer ferrite SMD design for superior performance. Low DC resistance promotes energy efficiency in power circuits. Shielding minimizes electromagnetic interference for noise-sensitive applications. Small 0805 package enables compact PCB layouts.

Wide operating temperature range suitable for demanding environments. Compliance with REACH and RoHS ensures environmental and safety standards. Tape and reel packaging facilitates automated pick-and-place assembly.

This product originates from Taiwan, Province Of China, representing quality manufacturing standards. It fits within industrial, electronic manufacturing, and communication equipment sectors, providing reliable inductance and noise rejection.
