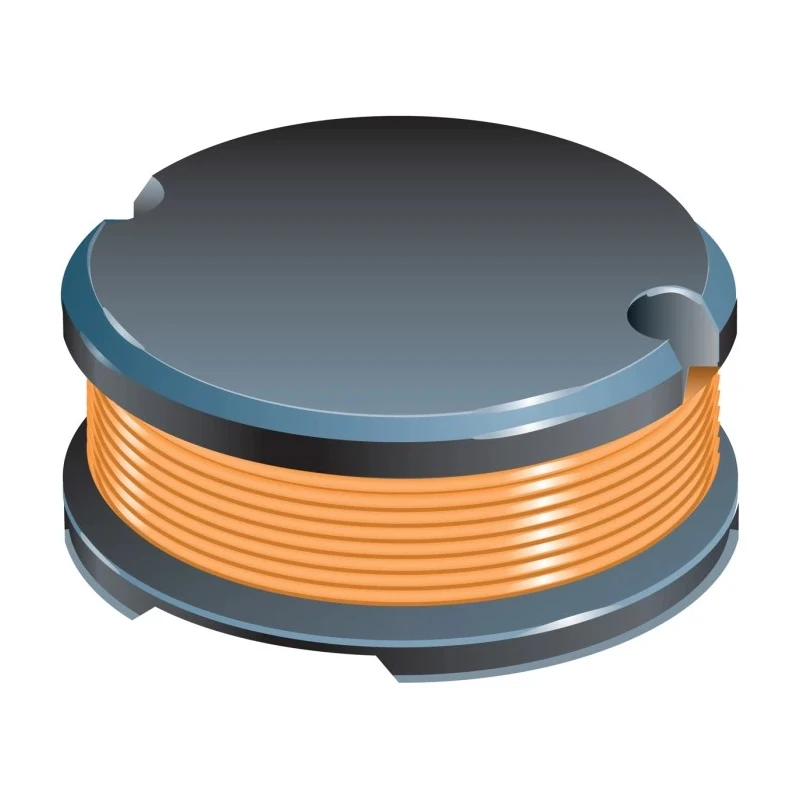

Bourns Wirewound Surface Mount Inductor 330 μH ±10 %, 130 mA Idc, 0302 Case, Ferrite Core SDR0302

Bourns SDR0302 Wirewound Surface Mount Inductor with a ferrite core offers 330 μH inductance at ±10 % tolerance, designed primarily for surface mount PCB applications requiring high reliability and efficiency.

This inductor supports a maximum DC current of 130 mA, making it ideal for power regulation in portable communication equipment, camcorders, LCD TVs, and automotive radio systems.

Its small 0302 package size (3 mm diameter, 3 mm length, 2.5 mm height, and 2.8 mm depth) enables low profile mounting on compact circuit boards. The ferrite core material provides stable inductance performance and low core losses.

Designed to operate within a temperature range from -40°C to 125°C, this device maintains performance under demanding environmental conditions. With a maximum DC resistance of 10 Ω and a minimum quality factor of 40, it ensures efficient signal integrity in switching power supplies and noise filters.

This wirewound construction inductor is RoHS compliant and moulded for enhanced durability. The termination style is surface mount for easy automatic PCB assembly, and packaging is supplied as Tape & Reel.

Typical industrial applications include use in DC/DC converters, power supplies for commercial electronic devices, automotive electronics, and other communication equipment. Set your designs apart with Bourns' SDR0302 series surface mount inductors, trusted for performance and reliability in professional electronics manufacturing.

Explore the full range of surface mount Inductors and Bourns products on EnvMart for industrial, laboratory, and commercial applications. Features a ferrite core construction optimized for stable inductance performance. Rated for a maximum DC current of 130 mA ensuring reliable operation.

Compact 0302 case size with dimensions: diameter 3 mm, length 3 mm, height 2.5 mm, and depth 2.8 mm. Operating temperature range from -40°C to 125°C suitable for various applications. Maximum DC resistance of 10 Ω and a minimum quality factor of 40 for efficient performance.

Non-shielded design ideal for compact power supplies and DC/DC converter circuits. Compliance with RoHS standards for environmentally safe usage. Packaging provided as Tape & Reel for automated assembly processes.
