TDK 10 μH ±20% Shielded Wirewound Surface Mount Inductor with Ferrite Core 1.22 A Idc VLCF4020T-100MR85
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 2mm |
| Length | 4.3mm |
| Model | VLCF4020T-100MR85 |
| Depth | 4mm |
| Packaging | Taping |
| Series | VLCF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 4020 |
| Maximum DC Current | 1.22A |
| Maximum DC Resistance | 185mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
Key Features
- This surface mount inductor features a ferrite core with high magnetic shielding.
- Inductance tolerance is ±20%, suitable for portable DC to DC converter lines.
- Maximum DC current is 1.22 A Idc, supporting efficient current flow.
- Operating temperature ranges from -40°C to 105°C for reliable performance.

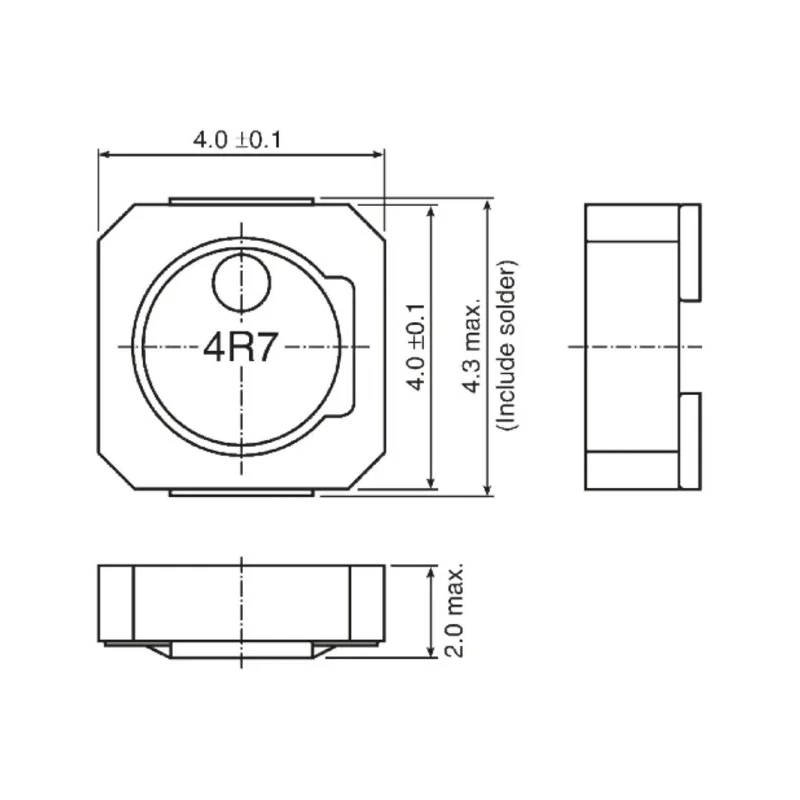

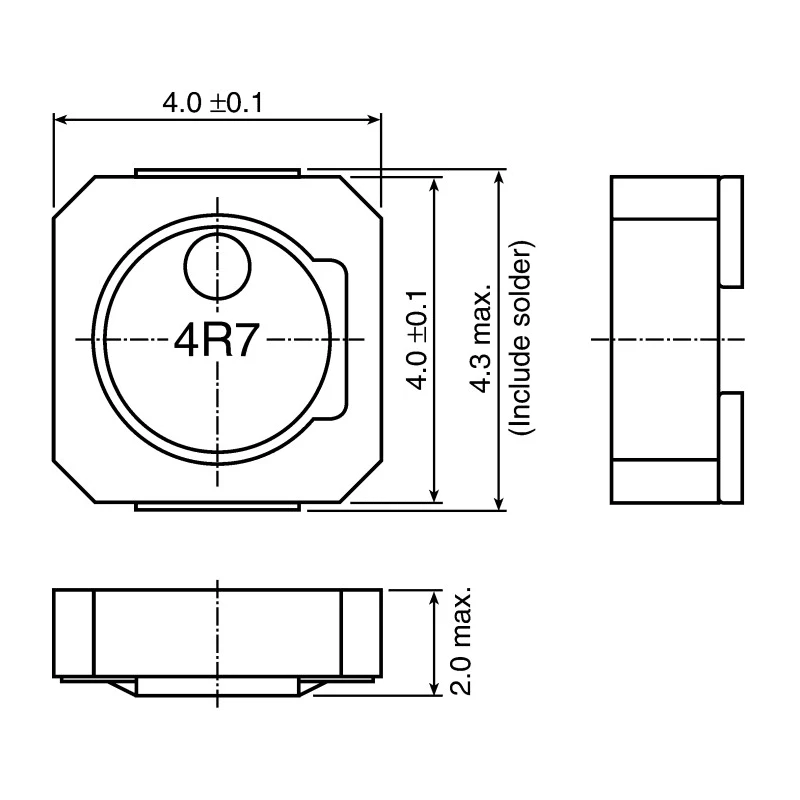

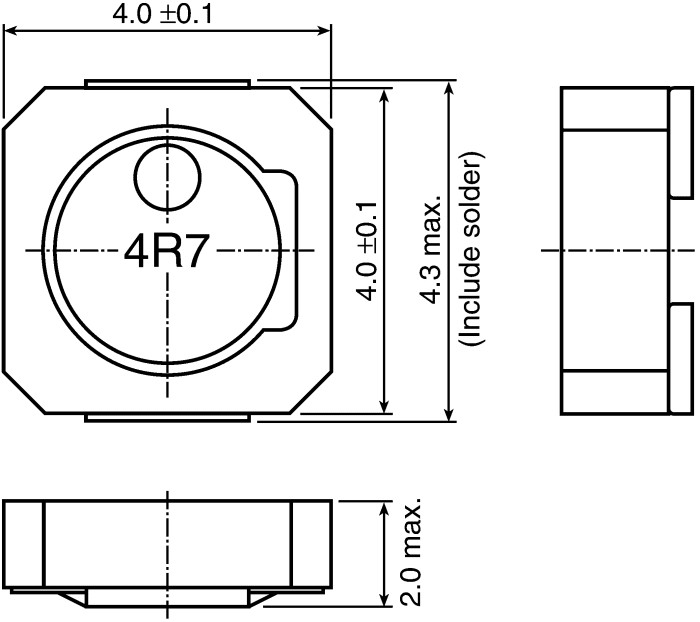

- The component has a package size of 4020 with dimensions 4.3 mm length, 2 mm height, and 4 mm depth.
- Dielectric is molded, and the termination style is surface mount for easy PCB integration.
- Maximum DC resistance is 185 mΩ, ensuring low power loss.
- This RoHS compliant inductor is designed for advanced electronic assemblies.
Product Description
The TDK VLCF4020T-100MR85 shielded wirewound surface mount inductor provides 10 μH inductance with a ±20% tolerance. It features a ferrite core that offers effective magnetic shielding, making it ideal for portable DC to DC converter applications requiring reduced electromagnetic interference.
The inductor supports a maximum DC current rating of 1.22 A, with a maximum operating temperature of up to 105°C and a minimum operating temperature down to -40°C, ensuring durability in varied environments. Its compact 4020 package size measures 4.3 mm in length, 2 mm in height, and 4 mm in depth, designed for surface mounting on PCBs.
The construction is wirewound and molded, with surface mount termination style facilitating automated assembly. The device maintains low DC resistance of 185 mΩ to minimize power losses during operation.
Manufactured to RoHS standards, it complies with environmental regulations and is suitable for industrial, telecommunications, consumer electronics, and automotive electronics applications where high reliability and compact size are crucial.
This inductor provides excellent magnetic shielding to reduce EMI. The ±20% inductance tolerance balances performance and cost. Thermal specifications allow usage in harsh conditions and high-temperature environments. Low DC resistance improves energy efficiency in power circuits.
Compact 4020 SMT package size is suitable for modern densely populated PCBs. Manufactured with high quality TDK standards ensuring reliability. Ideal for portable power supplies and DC to DC converter applications. RoHS compliant, meeting stringent environmental requirements.
Explore more high-quality Inductors and electronic components in the Electronics & Electricals category at EnvMart for efficient and reliable electronic design and manufacturing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 10 μH with a tolerance of ±20%.
The maximum DC current rating for this inductor is 1.22 A Idc.
The dimensions of the 4020 package are 4.3 mm in length, 2 mm in height, and 4 mm in depth.
It operates within a temperature range of -40°C to 105°C.
This inductor features a ferrite core, which provides effective magnetic shielding.
The maximum DC resistance is 185 mΩ, which helps minimize power loss during operation.
The termination style of this inductor is surface mount, facilitating easy integration onto PCBs.
Yes, this model is RoHS compliant, meeting environmental regulations.
It has a wirewound construction, which is typical for inductors of this type.
It is suitable for portable DC to DC converter applications and other electronic assemblies requiring reduced electromagnetic interference.
The country of origin for this inductor is India.
This inductor is packaged using taping, which is common for surface mount components.
