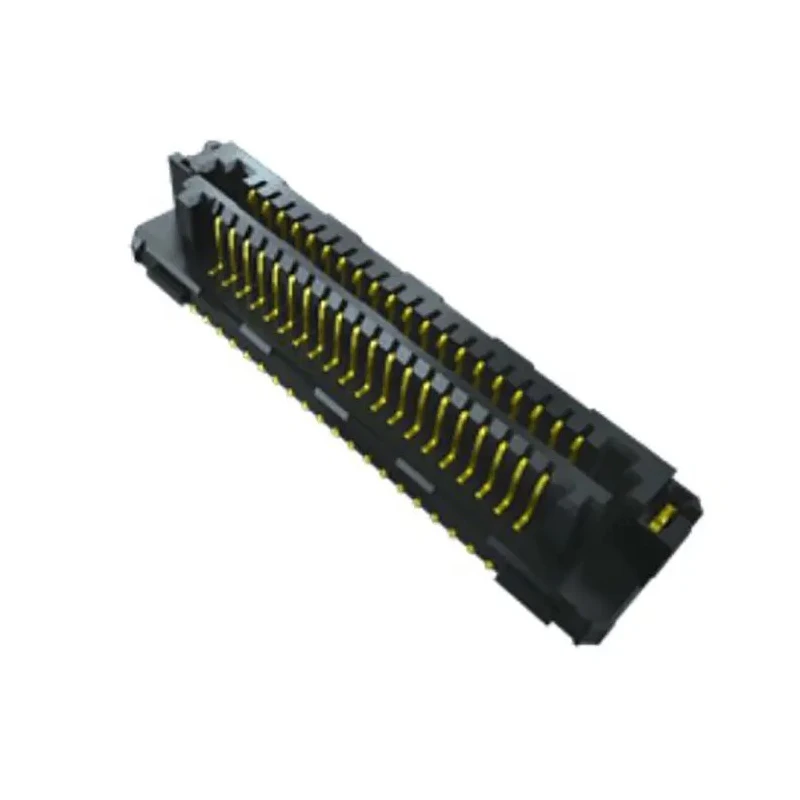

Samtec LSEM Series Vertical Surface PCB Header 40 Contacts 0.8 mm Pitch 2 Row Shrouded LSEM-120-06.0-F-DV-A-N-K-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec LSEM Series Vertical Surface PCB Header 40 Contacts 0.8 mm Pitch 2 Row Shrouded LSEM-120-06.0-F-DV-A-N-K-TR

Name: Samtec LSEM Series Vertical Surface PCB Header 40 Contacts 0.8 mm Pitch 2 Row Shrouded LSEM-120-06.0-F-DV-A-N-K-TR
Brand: Samtec
SKU: 402650
Price: 8.53 USD
Availability: InStock



Category PCB Headers Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	225, 318V ac
Brand	Samtec
Orientation	Vertical
Current	1.8A
Model	LSEM-120-06.0-F-DV-A-N-K-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	LSEM
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.8mm
Contact Plating	Gold
Number of Contacts	40
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Constructed with Liquid Crystal Polymer housing for durability and high performance.
Rated for a current of 1.8 A per pin ensuring reliable signal transmission.
Gold-plated phosphor bronze contacts provide excellent conductivity and corrosion resistance.
Designed for surface mount technology with vertical mounting orientation.
Operates reliably within wide temperature range from -55°C to 125°C for industrial applications.
Board-to-board connector system suitable for high-speed electronic circuit connections.
Solder termination type ensures secure and stable attachment to printed circuit boards.
Shrouded connector design for enhanced protection and alignment during assembly.

Product Description

Samtec LSEM-120-06.0-F-DV-A-N-K-TR is a high-quality vertical surface-mount PCB header belonging to the LSEM series, designed for advanced electronic applications requiring reliable board-to-board connections. Featuring 40 contacts arranged in two rows with a 0.8 mm pitch, this shrouded header uses Liquid Crystal Polymer for housing, combining strength with electrical insulation.

Each contact is made of phosphor bronze with a gold plating to optimize conductivity and prevent corrosion, supporting a maximum current of 1.8 A per pin. The solder termination ensures robust mechanical and electrical connection on the PCB, suitable for surface mount technology assembly.

This connector system is widely applicable across industrial, telecommunications, computing, and instrumentation sectors where compact, durable, and protected board terminals are essential. Its operational temperature range from -55°C to 125°C allows reliable use in harsh environmental conditions.

The shrouded design protects contacts from damage and misalignment, aiding in precise PCB assembly processes and overall device robustness. Constructed with Liquid Crystal Polymer housing for durability and high performance.

Rated for a current of 1.8 A per pin ensuring reliable signal transmission. Gold-plated phosphor bronze contacts provide excellent conductivity and corrosion resistance. Designed for surface mount technology with vertical mounting orientation.

Operates reliably within wide temperature range from -55°C to 125°C for industrial applications. Board-to-board connector system suitable for high-speed electronic circuit connections. Solder termination type ensures secure and stable attachment to printed circuit boards.

Shrouded connector design for enhanced protection and alignment during assembly.

This Samtec PCB header is an ideal choice for engineers designing compact electronic devices requiring dependable interconnections. Explore the full range of PCB Headers and connectors on EnvMart for your electronic component needs.
