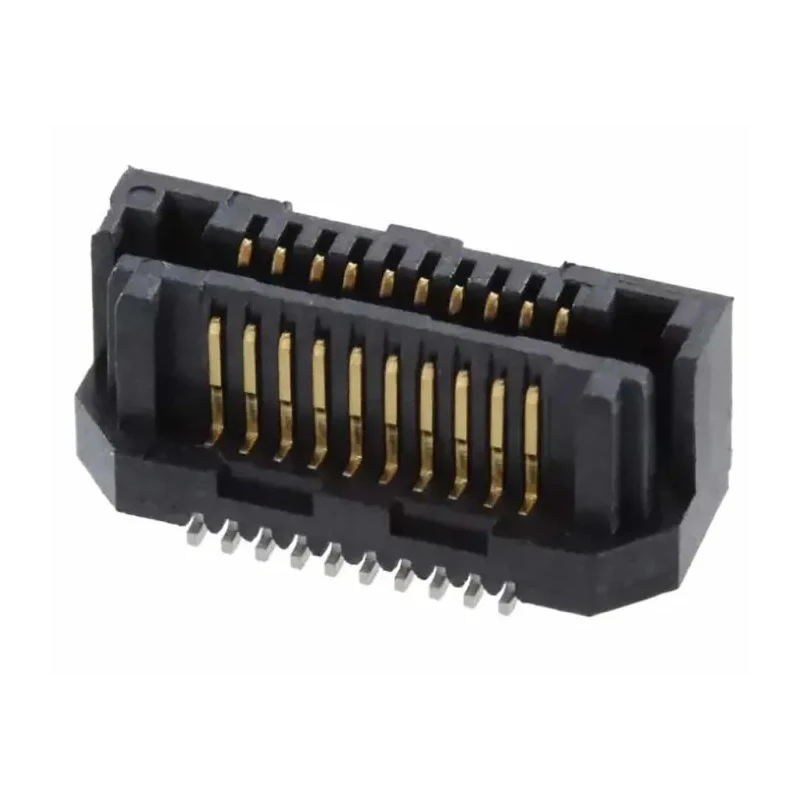

Samtec LSS Series Straight Surface PCB Header 20 Contacts 0.635 mm Pitch 2 Row Shrouded LSS-110-03-L-DV-A

Free Delivery in India | Lowest Global Shipping Charges

Samtec LSS Series Straight Surface PCB Header 20 Contacts 0.635 mm Pitch 2 Row Shrouded LSS-110-03-L-DV-A

Name: Samtec LSS Series Straight Surface PCB Header 20 Contacts 0.635 mm Pitch 2 Row Shrouded LSS-110-03-L-DV-A
Brand: Samtec
SKU: 401524
Price: 3.39 USD
Availability: InStock



Category PCB Headers Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Straight
Current	1.7A
Model	LSS-110-03-L-DV-A
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	LSS
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.635mm
Standards/Approvals	RoHS
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Features a 0.635 mm pitch across 2 rows for compact design integration.
Constructed with Liquid Crystal Polymer housing for durability and thermal stability.
Phosphor Bronze contacts plated with gold ensure reliable conductivity.
Shrouded male connector provides protection and secure mating.
Supports a maximum current of 1.7 A and operating temperatures from -55°C up to 125°C.
Designed for surface mounting on PCBs with a self-mating hermaphroditic system.
Complies with RoHS standards for environmental safety.
Ideal for electronic, industrial, and manufacturing PCB interconnection applications.

Product Description

Samtec LSS Series Straight Surface PCB Header model LSS-110-03-L-DV-A is a high-performance connector designed for reliable board-to-board connections in electronic assemblies.

This PCB header features 20 gold-plated phosphor bronze contacts arranged in 2 rows with a precise 0.635 mm pitch, offering excellent electrical conductivity and mechanical stability.

The housing is manufactured from Liquid Crystal Polymer, providing high temperature resistance and long-term durability, suitable for demanding industrial environments. The connector is shrouded and provides a straight male contact orientation, ensuring secure mating and protection from environmental conditions.

Operating temperature ranges from -55°C to 125°C make it appropriate for various industrial and commercial electronics applications, including manufacturing, telecommunications, and instrumentation.

The header supports a continuous current of up to 1.7 A, meeting the needs of medium power electronic signals. The product complies with RoHS directives, ensuring it is free from hazardous substances. Features a 0.635 mm pitch across 2 rows for compact design integration.

Constructed with Liquid Crystal Polymer housing for durability and thermal stability. Phosphor Bronze contacts plated with gold ensure reliable conductivity. Shrouded male connector provides protection and secure mating.

Supports a maximum current of 1.7 A and operating temperatures from -55°C up to 125°C. Designed for surface mounting on PCBs with a self-mating hermaphroditic system. Complies with RoHS standards for environmental safety.

Ideal for electronic, industrial, and manufacturing PCB interconnection applications.

This Samtec PCB header is suitable for use in electronic manufacturing, telecommunications equipment, and industrial control systems requiring durable and precise connector solutions.

Browse the wide range of Samtec connectors and PCB header solutions available at EnvMart to fulfill your electronic component needs with trusted quality and performance.
