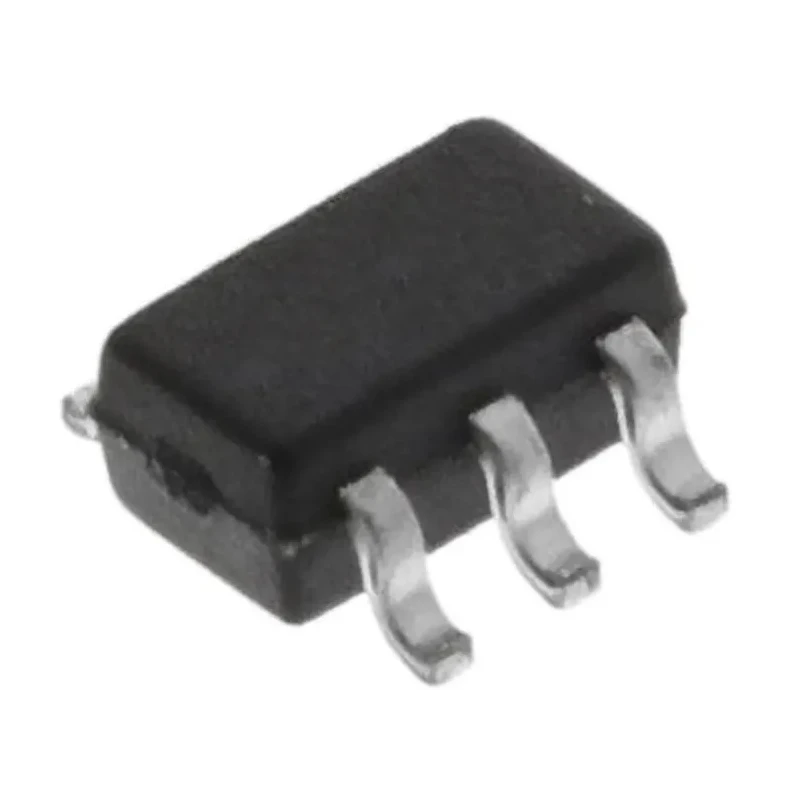

onsemi Dual PNP Bipolar Transistor BC856BDW1T1G, 200 mA, 65 V, 6-Pin SOT-363 Surface Mount BC856BDW1T1G

onsemi BC856BDW1T1G is a dual PNP bipolar transistor designed specifically for general-purpose amplifier applications and housed in a 6-pin SOT-363 surface mount package. It supports a maximum DC collector current of 200 mA and withstands collector-emitter voltages up to 65 V, allowing reliable performance in low power electronic circuits.

The transistor features a high minimum DC current gain (hFE) of 300, contributing to efficient amplification in both industrial and commercial electronics. Its compact physical dimensions of 2.2 mm (length), 1.35 mm (width), and 1.1 mm (height) make it highly suitable for dense PCB layouts.

Designed for surface mount technology, the BC856BDW1T1G comes with a standard SOT-363 package, enabling ease of automated assembly. It also fulfills automotive quality standards (AEC-Q101), underlining its reliability for automotive and other demanding environments.

The device operates efficiently within a wide temperature range from -65°C to 150°C and dissipates up to 380 mW of power safely. It supports a maximum transition frequency (ft) of 100 MHz, making it compatible with medium frequency switching and amplification.

This transistor is Pb-free and complies with halogen and bromine-free standards, supporting environmentally responsible electronics manufacturing. Dual PNP bipolar transistor configuration optimized for amplification. 200 mA maximum DC collector current.

Collector-emitter voltage rating of 65 V and collector-base voltage of 80 V. High DC current gain for effective signal amplification. Wide operating temperature range from -65°C to 150°C. Compact SOT-363 6-pin surface mount package.

Compliance with AEC-Q101 automotive standards for durability. Maximum power dissipation of 380 mW for stable operation. 100 MHz maximum transition frequency for medium-frequency applications.

This transistor is ideal for industrial, automotive, commercial, and manufacturing electronic circuits requiring reliable low power switching and amplification. Its small size and surface mount design facilitate use in dense electronic assemblies and modern PCB technologies.
