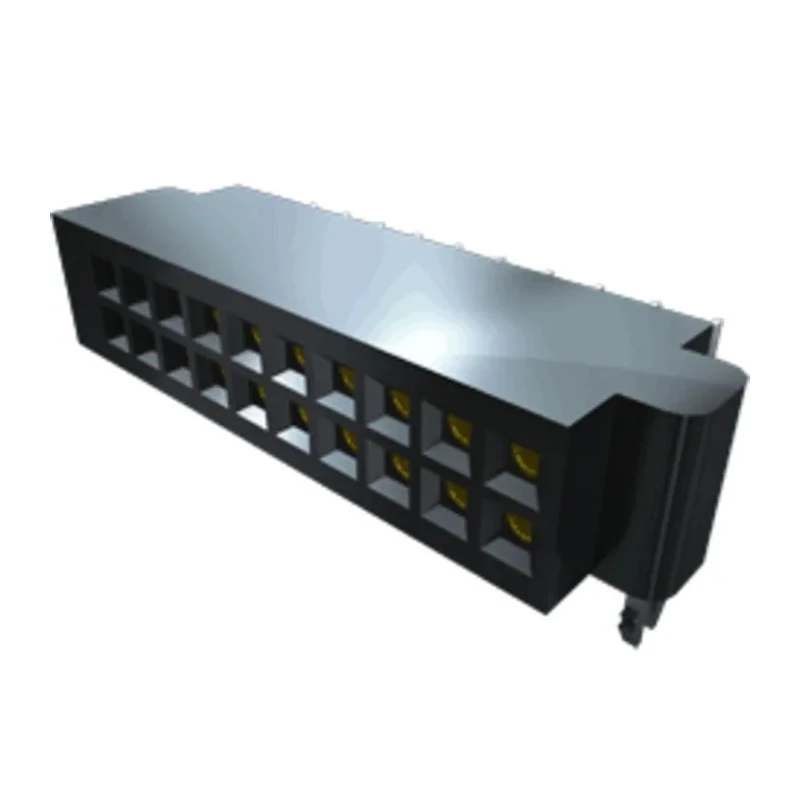

Samtec Straight Surface PCB Socket 20-Contact 2 Row 1.27 mm Pitch Solder SFMH-110-02-L-D-LC

Samtec SFMH-110-02-L-D-LC is a high-reliability straight surface PCB socket designed for board-to-board connections in electronic assemblies. This socket features 20 female contacts arranged in 2 rows with a 1.27 mm pitch, providing compact and efficient connectivity solutions for a wide range of industrial and commercial electronic devices.

The housing is made from durable liquid crystal polymer material, ensuring excellent mechanical strength and thermal stability within an operating temperature range of -55°C to 125°C. The contact material consists of bronze with a gold plating to guarantee superior electrical conductivity and resistance to corrosion, crucial for maintaining stable performance in demanding environments.

Rated for a current capacity of 2.6 A, the socket is well-suited for various industrial electronics applications including instrumentation, automation systems, and communication equipment. Its surface mount termination with straight orientation facilitates easy soldering to PCBs, supporting reliable and compact mounting practices.

Additional design features include horizontal mount tails and locking clip options, enhancing mechanical retention and ensuring robust connections under mechanical stress. The SFMH series is compatible with FSH terminal strips, enabling flexible system design and integration.

Constructed with liquid crystal polymer housing ensuring high durability. Supports a maximum current rating of 2.6 A for reliable electrical performance. Features gold-plated bronze contacts for corrosion resistance and excellent conductivity.

Designed for a wide operating temperature range from -55°C to 125°C. Surface mount with a straight orientation for easy PCB assembly. Compatible with FSH terminal strip mating connectors. Offers a row pitch and contact pitch of 1.27 mm for compact PCB designs.

Includes locking clip options and horizontal mount tails for secure installation.

This PCB socket is ideal for applications in electronics manufacturing, power connectors, telecommunications, and other industrial settings where reliable board-to-board connections are essential. Explore extensive PCB connector options and accessories for your electronic designs in the EnvMart catalog.
