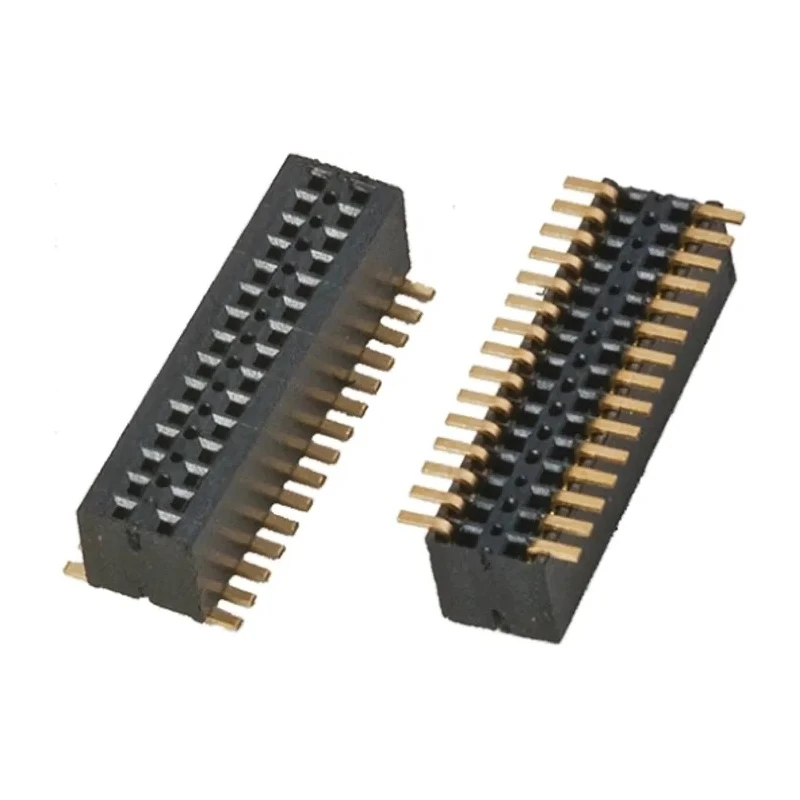

Samtec CLE Series Straight Surface PCB Socket, 12-Contact, 2 Row, 1.2 mm Pitch, 3.1A Current CLE-106-01-G-DV

Samtec CLE-106-01-G-DV is a CLE Series Straight Surface PCB Socket featuring 12 contacts arranged in 2 rows with a 1.2 mm pitch. Designed for board-to-board connections, this SMT socket supports solder termination and surface mount assembly. The housing is made from black liquid crystal polymer, ensuring high durability and thermal resistance ranging from -55°C to 125°C.

The contacts are composed of beryllium copper alloy plated with 0.25 μm of gold, providing excellent electrical conductivity and corrosion resistance. This socket supports a maximum current of 3.1 amperes, making it suitable for a variety of electronic and industrial applications.

Its straight orientation and precise 1.2 mm pitch between the rows ensure reliable mechanical alignment and electrical connectivity. The CLE Series sockets feature Tiger Beam Contacts and Tails facilitating connections through male headers, enabling interconnection of up to three parallel boards.

With a low profile height of 3.3 mm above the board, this socket provides a cost-effective and compact solution in PCB assembly where space saving is critical. It is RoHS compliant, supporting environmentally safe manufacturing processes.

This connector is ideal for electronics manufacturing, industrial equipment, telecommunications, and embedded system applications requiring reliable and compact PCB interconnections.

Compatible with solder termination and surface mount technology for reliable connections. Constructed from liquid crystal polymer housing for durability. Features gold-plated beryllium copper alloy contacts for superior conductivity.

Designed for operating temperatures from -55°C to 125°C ensuring broad thermal stability. Supports a current rating of 3.1 amps suitable for various electronic applications. Straight orientation and 1.2 mm row pitch provide precise alignment on PCBs.

Compliant with RoHS standards for environmental and safety regulations. Provides a low profile with an above-board height of 3.3 mm enhancing compact PCB designs. Discover a wide range of high-quality PCB Sockets and electronic connectors with Samtec products listed at EnvMart for your industrial and commercial electronic hardware needs.
