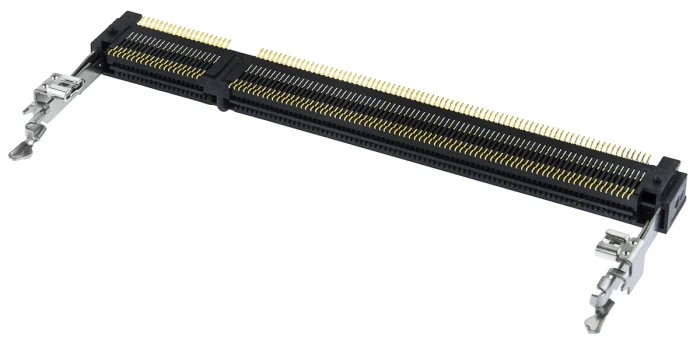

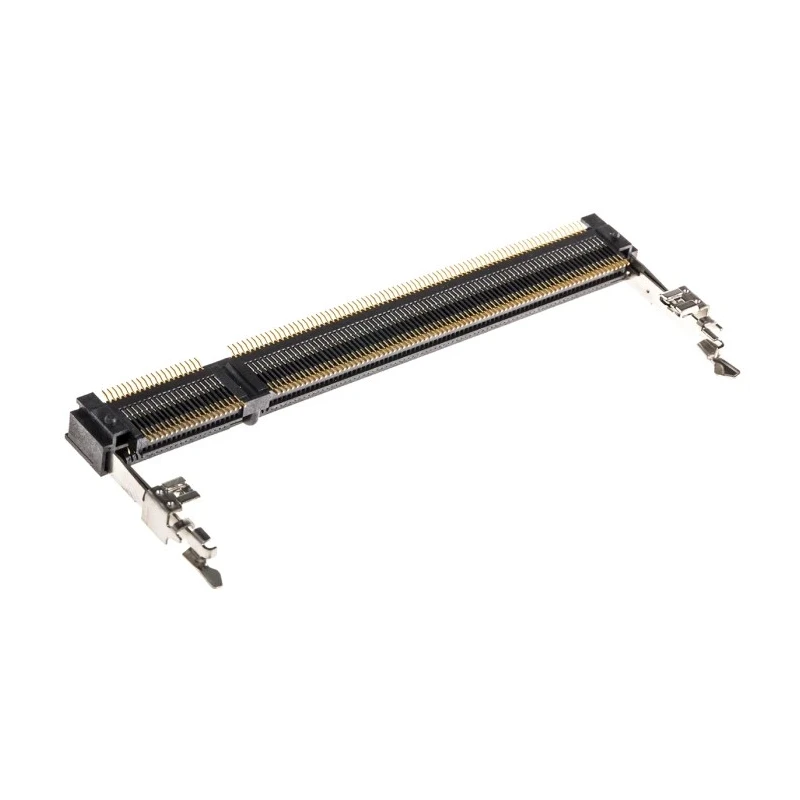

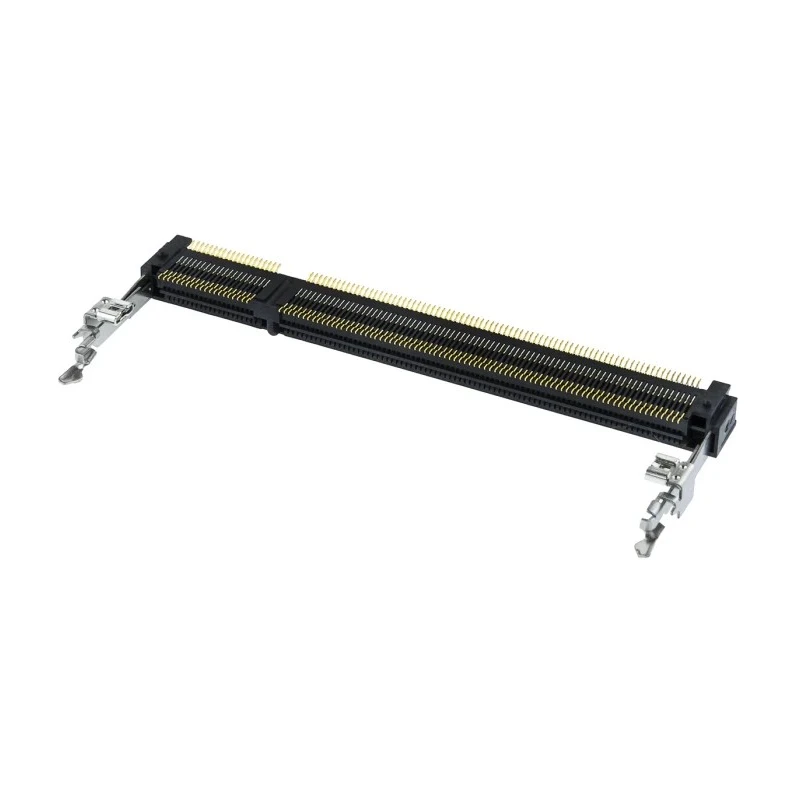

TE Connectivity 0.6 mm Pitch 200 Way Right Angle Surface Mount DDR2 DIMM Socket 1.8V 500mA 1473149-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1.8V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | 1473149 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 0.6mm |
| Row Spacing | 6.2mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 200 |
| Memory Socket Type | DIMM |
| Insertion/Removal Method | Cam-In |
| SDRAM Type | DDR2 |
Key Features
- Features cam-in insertion and removal method ensuring easy module insertion and retention.
- Surface mount type with thermoplastic housing for durable PCB attachment.
- Gold over nickel plating on copper alloy contacts provides excellent electrical conductivity and corrosion resistance.
- Supports 200 contacts with 0.6 mm pitch and 6.2 mm row spacing suitable for DDR2 SDRAM modules.
- Operates reliably between -55°C and 85°C temperature range without latching mechanism.
- Designed for use in computers, servers, printers, and communications equipment requiring DDR2 memory sockets.
- Solder peg termination ensures secure soldering on PCB.
Product Description
TE Connectivity 1473149-4 is a 0.6 mm pitch, 200 way right angle surface mount DIMM socket designed specifically for DDR2 SDRAM memory modules. Operating at 1.8V with a current rating of 500mA, this socket provides a robust and reliable interconnection solution for modern computing hardware.
The socket employs a cam-in insertion/removal method that facilitates easy and secure placement of memory modules, complemented by locking ejector latches that ensure retention and effortless release. Constructed with thermoplastic housing and copper alloy contacts plated with gold over nickel, it offers durability and excellent electrical performance.
With 200 contacts spaced at a 0.6 mm pitch and row spacing of 6.2 mm, it is optimized for DDR2 DDR SDRAM modules. The surface mount termination via solder pegs guarantees a strong mechanical and electrical connection to the printed circuit board, suitable for industrial and commercial electronics manufacturing.
This memory socket is built to operate within a broad temperature range of -55°C to 85°C, without latching features, supporting various applications including notebook computers, servers, printers, workstations, storage solutions, and communication memory devices.
Cam-in module loading mechanism for user-friendly installation. Secure memory module retention without latching. Gold over nickel plated copper alloy contacts for enhanced conductivity and resistance. Designed to meet standard DDR2 JEDEC specifications.
Thermoplastic housing material for electrical insulation and mechanical stability. Suitable for high-reliability industrial, laboratory, and commercial electronics applications. Facilitates efficient manufacturing assembly lines with surface mount termination.
This TE Connectivity socket exemplifies high-quality industrial memory interconnection solutions. For more options in electronic components and memory Sockets, explore EnvMart's comprehensive catalog tuned to industrial and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This socket features a 0.6 mm pitch and supports 200 contacts, making it suitable for DDR2 SDRAM modules.
It operates reliably within a temperature range of -55°C to 85°C.
The socket utilizes solder peg termination, ensuring a secure soldering connection on the PCB.
It operates at a voltage of 1.8V with a current rating of 500mA.
The housing is made from thermoplastic material, providing electrical insulation and mechanical stability.
This model employs a cam-in insertion and removal method, facilitating easy and secure placement of memory modules.
The contacts are made of copper alloy and are plated with gold over nickel for enhanced conductivity and corrosion resistance.
The row spacing for the contacts is 6.2 mm, which is optimized for DDR2 memory modules.
It is designed for use in computers, servers, printers, and communications equipment requiring DDR2 memory sockets.
This model has a right angle orientation, suitable for specific PCB layouts and designs.
The country of origin for this socket is India.
This socket is part of the 1473149 series, specifically designed for DDR2 SDRAM modules.
