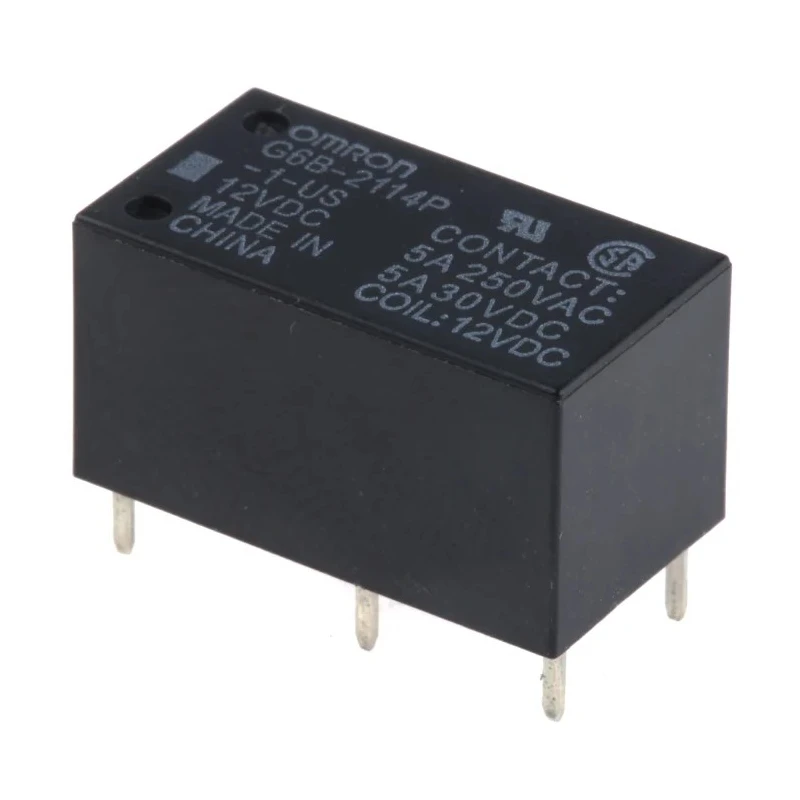

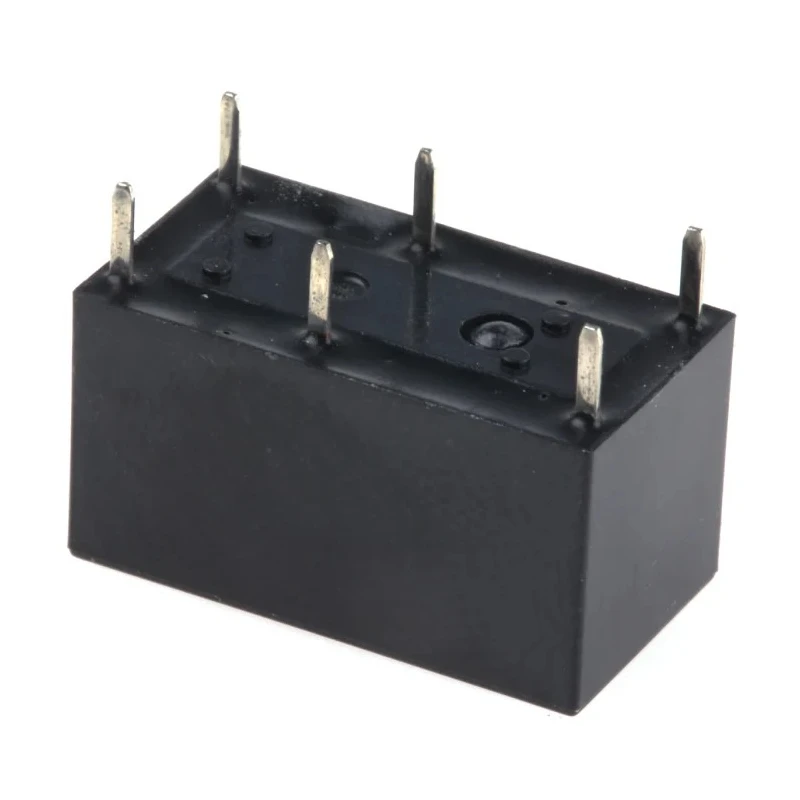

Omron PCB Power Relay 12V DC Coil 5A Switching Current G6B-2114P-1-US DC12
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 11mm |
| Length | 20mm |
| Model | G6B-2114P-1-US DC12 |
| Width | 11mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6B |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Contact Resistance | 30mΩ |
| Standards/Approvals | UL, CSA |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Coil Power | 200mW |
| Switching Power | 200mW |
| Subminiature | 20x10x10mm |
Key Features
- Subminiature dimensions of 20x10x10 mm for compact PCB mounting.
- Low power consumption relay with only 200 mW coil power.
- Silver alloy contacts provide high reliability and low contact resistance of 30 mΩ.
- Operational temperature range from -25°C to 70°C for varied environments.
- Supports switching voltages up to 125 V DC and 380 V AC with a max switching power of 200 mW.
- UL recognized and CSA certified ensuring quality and safety standards.
- Fully sealed construction with high dielectric strength and impulse withstand voltage of 6 kV.
- Coil resistance rated at 720 Ω with solder terminal type for easy PCB integration.
Product Description
The Omron G6B-2114P-1-US DC12 PCB Power Relay is a subminiature, high-performance device designed for efficient control and switching applications in industrial and electronic systems. This relay features a 12V DC coil voltage and supports a switching current of 5A, making it suitable for output controls in automation equipment and other control circuits.
With compact dimensions of 20 mm length, 11 mm width, and 11 mm height, the G6B relay fits seamlessly into tight PCB layouts, reducing space requirements and enhancing design flexibility. Its unique moving loop armature design minimizes magnetic interference and contact bounce, ensuring quick and reliable switching.
The relay operates with a low coil power consumption of just 200 mW, improving energy efficiency and reducing heat generation in densely packed electronic assemblies. Its contacts are made from a silver alloy, delivering excellent conductivity and durability, with a contact resistance as low as 30 milliohms. This ensures stable and consistent performance in switching circuits.
Designed to operate within a temperature range from -25°C to 70°C, the relay withstands various industrial environments. It can switch DC voltages up to 125 V and AC voltages up to 380 V, offering versatility across different applications. The device has an impulse withstand voltage of 6 kV and is fully sealed for environmental protection and longer service life.
Subminiature size (20x10x10 mm) ideal for space-saving PCB designs. Low power coil consumption at 200 mW for energy-efficient operation. Silver alloy contacts with low resistance for reliable switching. Wide operating temperature range of -25°C to 70°C.
High dielectric strength and 6 kV impulse withstand voltage. Solder terminal type for secure PCB mounting. UL recognized and CSA certified for compliance and safety.
This Omron G6B series relay is extensively used in industrial automation, control systems, HVAC equipment, and other electronic devices requiring precise and reliable switching performance. Its robust construction and certifications make it a trusted choice for engineers designing dependable and compact control applications.
Explore detailed technical documentation and application notes to fully leverage the capabilities of this relay.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The G6B-2114P-1-US DC12 relay has a switching current rating of 5A.
This relay has subminiature dimensions of 20 mm in length, 11 mm in width, and 11 mm in height.
The coil voltage for this relay is 12V DC.
The contact resistance of the G6B-2114P-1-US DC12 relay is 30 milliohms.
The relay operates within a temperature range of -25°C to 70°C.
This relay features solder terminal type for easy PCB integration.
The maximum switching voltage for the G6B-2114P-1-US DC12 is 125V DC and 380V AC.
The coil resistance of this model is rated at 720 ohms.
This relay is UL recognized and CSA certified, ensuring compliance with safety standards.
The coil power consumption for the G6B-2114P-1-US DC12 relay is 200 mW.
The contacts of the G6B-2114P-1-US DC12 relay are made from silver alloy, providing high reliability.
The G6B-2114P-1-US DC12 relay has an impulse withstand voltage of 6 kV.
