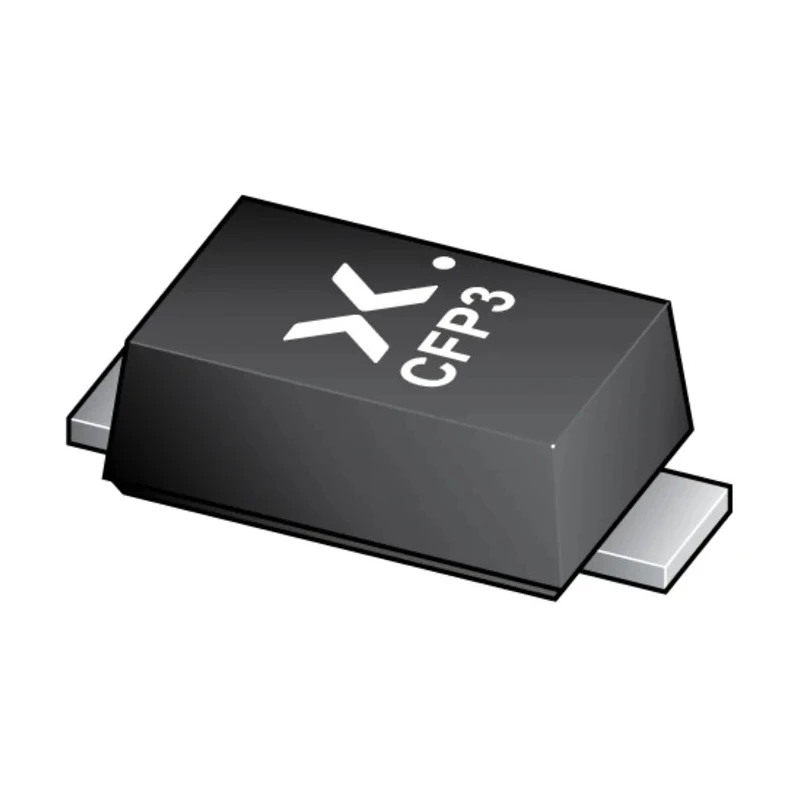

Nexperia 40 V 2 A Low VF MEGA Schottky Barrier Rectifier Diode 2-Pin SOD-123W PMEG4020ETR,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 40 V 2 A Low VF MEGA Schottky Barrier Rectifier Diode 2-Pin SOD-123W PMEG4020ETR,115

Name: Nexperia 40 V 2 A Low VF MEGA Schottky Barrier Rectifier Diode 2-Pin SOD-123W PMEG4020ETR,115
Brand: Nexperia
SKU: 398265
Price: 0.14 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.1mm
Length	2.8mm
Model	PMEG4020ETR,115
Width	1.9mm
Mount Type	Surface
Series	PMEG4020ETR
Maximum Operating Temperature	175°C
Package Type	SOD-123W
Minimum Operating Temperature	-55°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	2A
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	15mA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Maximum Forward Voltage Vf	490mV
Average forward current	IF(AV) ≤ 2 A
Reverse voltage	VR ≤ 40 V

Key Features

Maximum continuous forward current of 2 A ensures reliable current handling.
Peak reverse repetitive voltage rating of 40 V for robust operation.
Compact SOD-123W package type offers a small footprint for assembly.
Qualified to automotive standard AEC-Q101 for high reliability.
Featuring a maximum forward voltage drop of 490 mV for improved efficiency.
Operates over a wide temperature range of -55°C to 175°C.
High surge current capability up to 50 A for transient protection.
Low peak reverse current of 15 mA for low leakage losses.

Product Description

Nexperia PMEG4020ETR,115 is a 40 V, 2 A low forward voltage MEGA Schottky barrier rectifier diode designed for surface mount applications. It features a planar maximum efficiency design with an integrated guard ring for stress protection, encapsulated in a compact SOD-123W plastic package.

This diode supports an average forward current (IF(AV)) of up to 2 A and a peak reverse repetitive voltage (VRRM) of 40 V. The low forward voltage drop (maximum 490 mV) enhances power efficiency, and advanced clip bonding technology ensures high power capability.

Additional features include qualifications to the automotive AEC-Q101 standard, ensuring reliability under harsh operating conditions. It operates effectively from -55°C to a maximum junction temperature of 175°C, making it suitable for high temperature applications.

The diode is optimized for low voltage rectification in switch mode power supplies, DC-to-DC converters, reverse polarity protection circuits, and other low power consumption electronics. Its small and flat SMD package facilitates high density PCB layouts and efficient thermal management.

Maximum continuous forward current of 2 A ensures reliable current handling. Peak reverse repetitive voltage rating of 40 V for robust operation. Compact SOD-123W package type offers a small footprint for assembly. Qualified to automotive standard AEC-Q101 for high reliability.

Featuring a maximum forward voltage drop of 490 mV for improved efficiency. Operates over a wide temperature range of -55°C to 175°C. High surge current capability up to 50 A for transient protection. Low peak reverse current of 15 mA for low leakage losses.

Flat and small lead SMD design ideal for high-density PCB applications. Suitable for DC-to-DC conversion, reverse polarity protection, and low power consumption devices.

This diode is ideally suited for industrial, automotive, power management, and commercial electronic manufacturing sectors where efficient rectification and protection are critical.
