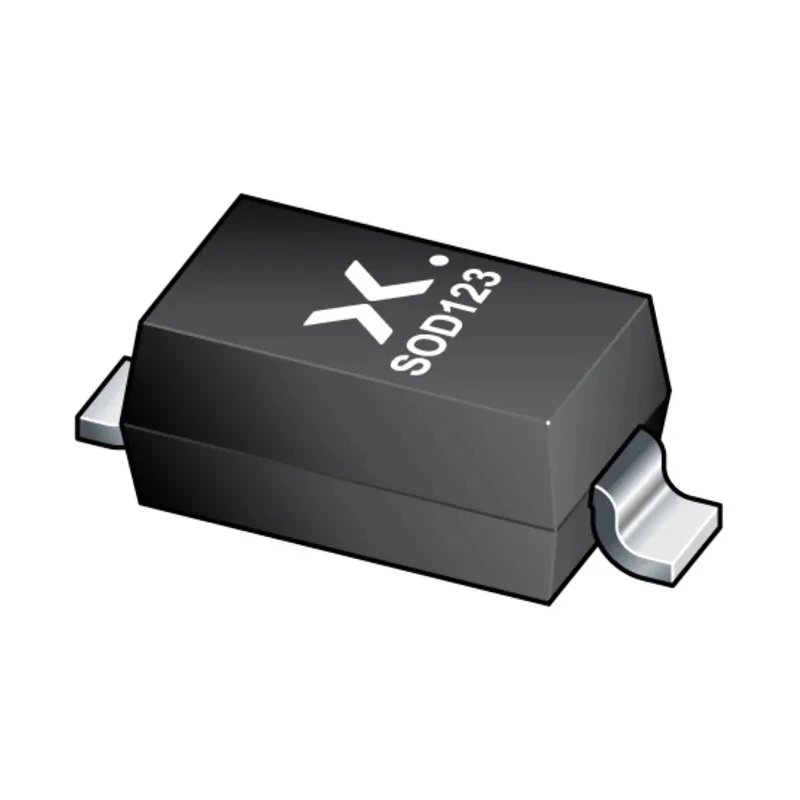

Nexperia 60 V 1 A Low Forward Voltage Schottky Diode 2-Pin SOD-123 PMEG6010CEGWX

Nexperia PMEG6010CEGWX is a 60 V 1 A MEGA Schottky barrier diode featuring a low forward voltage and low power consumption levels, packaged in a compact 2-pin SOD-123 surface-mount device (SMD) suitable for a wide variety of industrial and automotive applications.

This diode incorporates an integrated guard ring for enhanced stress protection and increased reliability, making it suitable for harsh operating conditions. The planar maximal efficiency general application design provides superior performance for low voltage rectification and high efficiency DC-to-DC conversion circuits.

The device supports a maximum continuous forward current (IF) of 1 A and can withstand a peak reverse repetitive voltage (VRRM) of 60 V, with a low typical forward voltage of 570 mV, reducing conduction losses in power supply circuits.

Rated to operate over a temperature range of -55°C to 150°C, PMEG6010CEGWX meets the stringent automotive AEC-Q101 qualification, ideal for automotive electronic systems requiring durability and reliability.

Compact dimensions of 2.8 mm length, 1.7 mm width, and 1.3 mm height facilitate high-density PCB layouts where space is critical. It also features a low peak reverse current of approximately 50 μA and can handle peak non-repetitive surge currents up to 9 A.

Maximum continuous forward current of 1 A enables reliable current handling. Peak reverse repetitive voltage rating of 60 V ensures protection against voltage spikes. Small SOD-123 package promotes space-saving PCB designs.

Low forward voltage drop reduces power losses. Wide operating temperature range from -55°C to 150°C. Qualified to automotive AEC-Q101 standard for high reliability. Low peak reverse current reduces leakage losses. Supports high surge current for transient load conditions.

Suitable for multiple applications including DC-DC conversion, switched-mode power supplies, and reverse polarity protection circuits. Meets demands for automotive and industrial electronic systems. It is an excellent choice for engineers and designers seeking robust, efficient rectification components for compact and high-performance electronic designs.
